Product Description

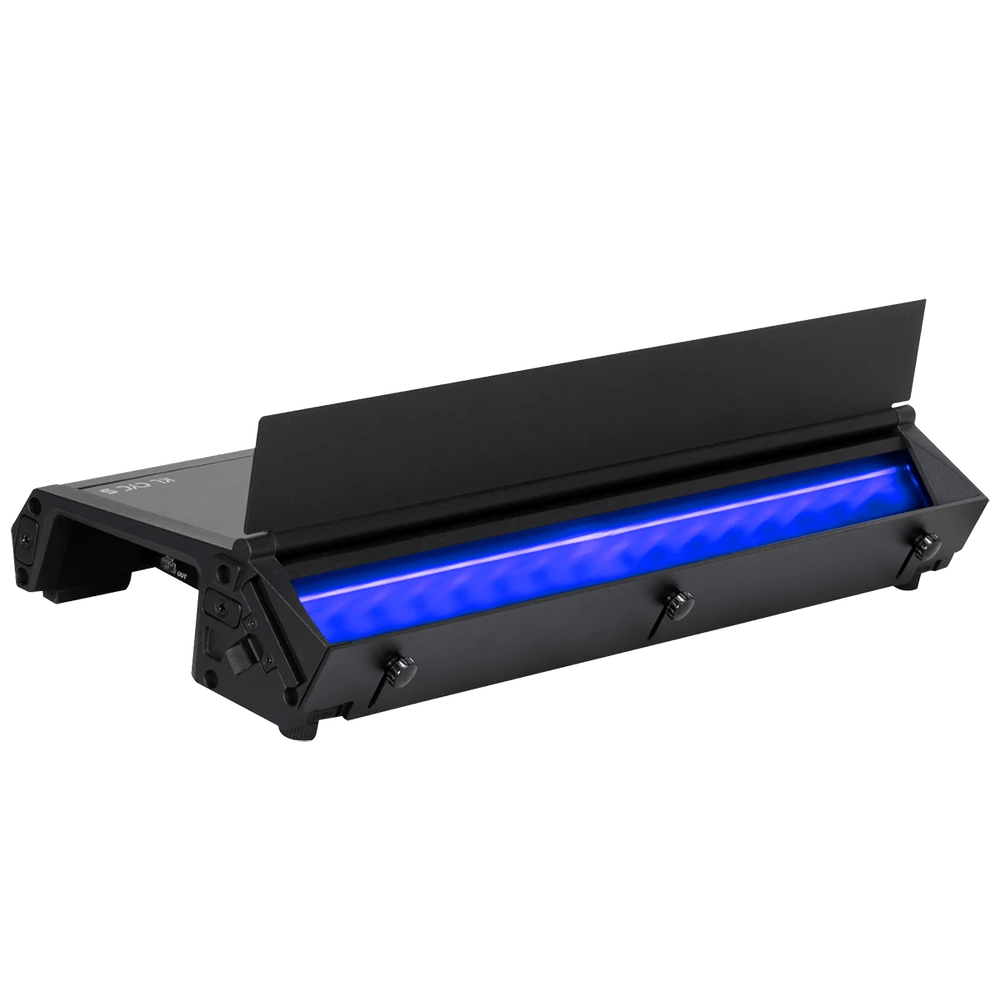

The KL CYC S features Elation's proven RGBMA color system, allowing a perfect color match to many other fixtures in the KL and Fuze ranges. Calibrated color temperature control, greenshift adjustment and the CMY and RGB emulation modes provide the designer with powerful control to recall any color in up to two separate segments.
SPECIFICATIONS
SOURCE
- 90W RGBMA LED Array
- 30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- Total Lumen Output:
- 5,645 (Integrating Sphere)
- 5,276 (Goniometer)
- CRI: 96.5
- TLCI: 88
- Filter
- Beam Angle: 40° x 90°
- Field Angle: 85° x 160°
- No Filter
- Beam Angle: 25° x 75°
- Field Angle: 80° x 125°
EFFECTS
- EdgeLight Safety Feature
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR
- RGBMA Color Array
- Up to two control segments
- CMY, RGB Emulation
- Variable CCT 2,400K - 8,500K
- Green/Magenta Shift
- Virtual Gel Swatch Book

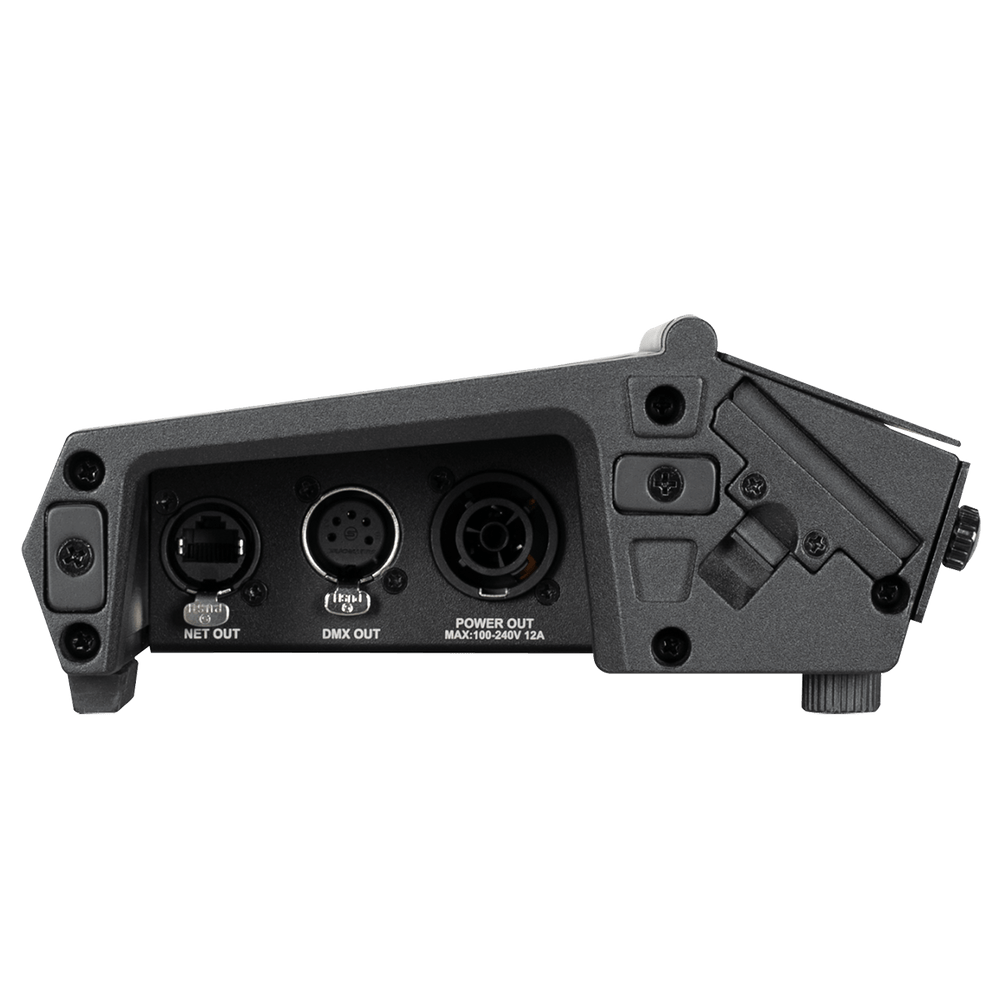

CONTROL/CONNECTIONS
- 11 DMX Channel Modes (1ch, 4ch, 4ch, 4ch, 12ch, 11ch, 16ch, 13ch, 20ch, 19ch, 32ch)
- 4 Button Control Panel, LED Display
- RDM (Remote Device Management)
- 5pin DMX In/Out
- RJ45 Locking Ethernet In/Out
- IP65 Locking Power Cable In/Out
