Product Description

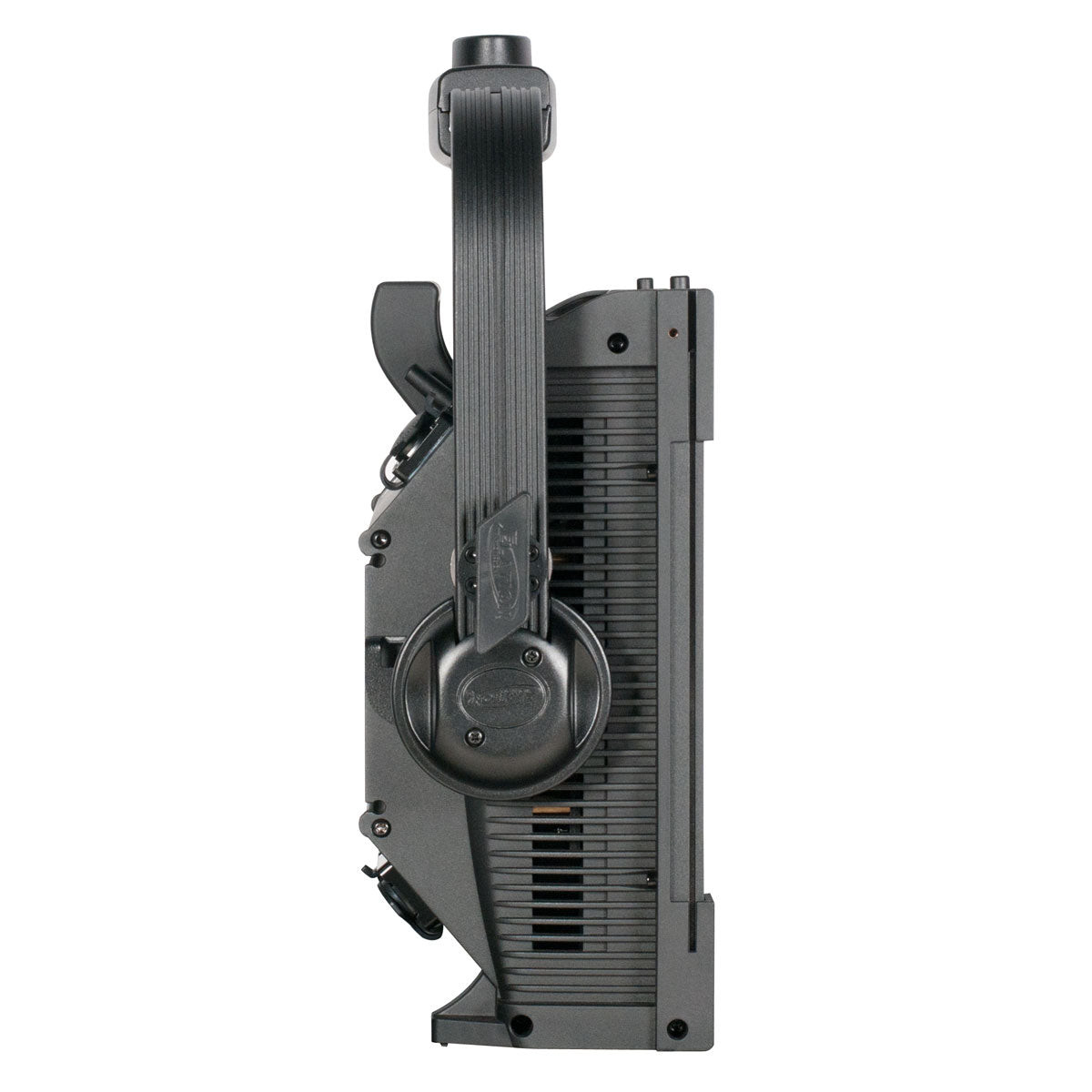

The KL PANEL incorporates a highly efficient 6-in-1 LED package that produces up to 24,000 field lumens at a 100° half-peak angle. Compact and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. Rugged housing with impact-resistant surrounds and base plate ensures the KL Panel can handle the rough handling on today's fast-paced sets. It is fully self-contained without the need for an external power supply. It can also be remotely powered thru its integrated 4-pin XLR 24-36 VDC battery input. The KL Panel can be operated through industry-standard DMX. In addition, it can also be adjusted manually using the included encoders and OLED display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access while the KL Panel is mounted on a stand. The integration of Elation’s E-FLY™ wireless system allows for even more flexibility of use.
SPECIFICATIONS
SOURCE
- 6-in-1 (Red, Green, Blue, White, Lime, Cyan) Full Spectrum LED Array
- 50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- Up to 24,000 Total Lumen Output
- With Diffuser:
- Beam Angle: 101°
- Field Angle 159.4°
- Without Diffuser:
- Beam Angle: 111°
- Field Angle: 155.4°
EFFECTS
- Variable CCT 2000K - 10000K
- Green-Shift Adjustment
- Virtual Gel Library
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
- Remote Adjustable LED Refresh Rate Frequency (900-100kHZ)
CONTROL/CONNECTIONS
- 9 DMX Channel Modes
- 3 Manual Adjustment Encoders
- 4 Button Control Panel and OLED Menu Display
- E-FLY™ Internal Extended Range Wireless DMX Transceiver
- Locking 5pin XLR Connector In/Out
- Locking IP65 Power Connector In/Out
- USB Connection (Firmware Updates, External 5V power for accessories)
- 4pin XLR External Battery Connection (battery not included)
- With Wired Digital Communication Network
