Product Description

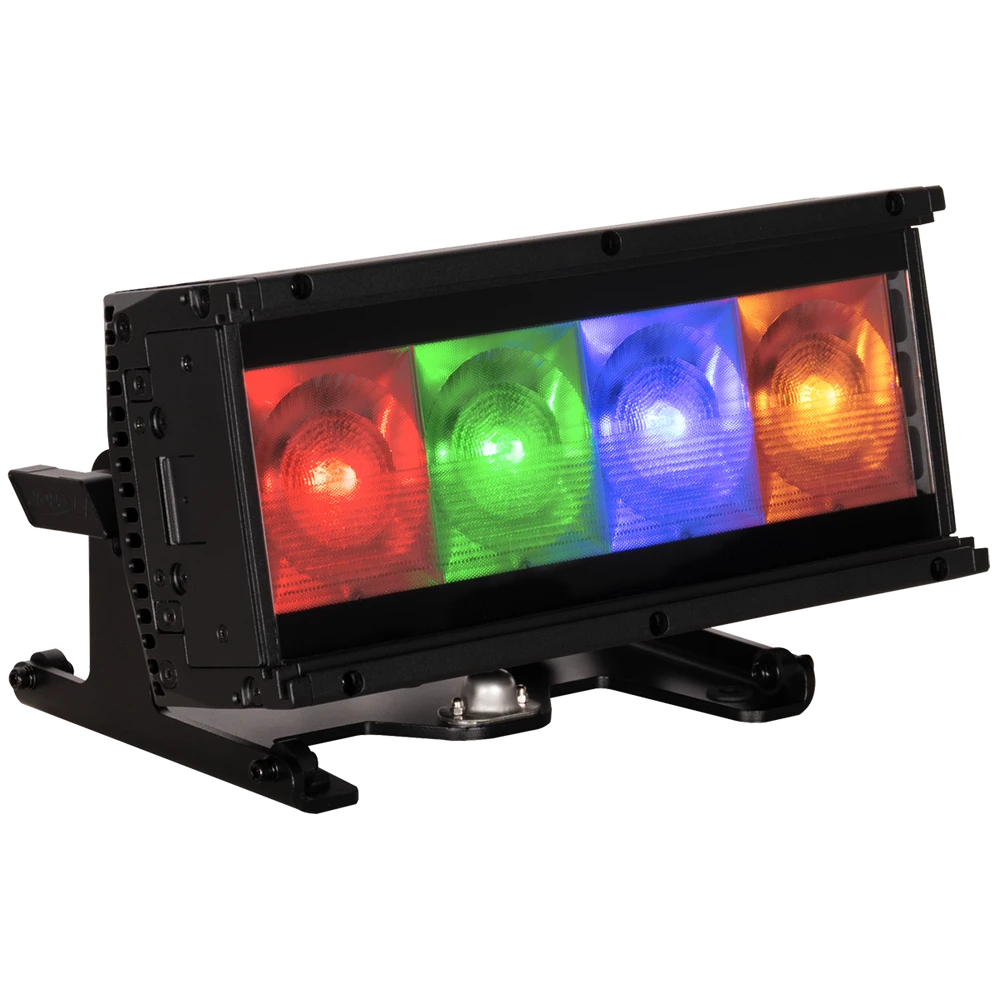

Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field.
SPECIFICATIONS
SOURCE
- (4) x 100W RGBMA LEDs
- 30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- Total Lumen Output: 10,300 (Integrating Sphere)
- CRI: 94.9
- TLCI: 95
- Beam Angle: 22° x 20°
- Field Angle: 44° x 42°
EFFECTS
- Full Pixel Control
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR
- RGBMA Color Array
- CMY Emulation
- 16bit Fully Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Dim-to-Warm Fade
- Virtual Gel Swatch Book
CONTROL/CONNECTIONS
- 22 DMX Channel Modes (1ch, 3ch-A, 4ch-A, 4ch-B, 3ch-B, 6ch-A, 10ch, 14ch, 22ch, 16ch-A, 6ch-B, 8ch, 6ch-C, 20ch-A, 20ch-B, 35ch, 12ch-A, 16ch-B, 40ch, 32ch, 61ch)
- 4 Button Control Panel, Color LED Display
- RDM (Remote Device Management)
- Aria x2 Wireless Device Management
- NFC Configuration
- IP65 5pin XLR DMX In/Out
- IP65 RJ45 Ethernet In/Out (Art-Net sACN)
- IP65 Locking Power Cable In/Out
