Product Description

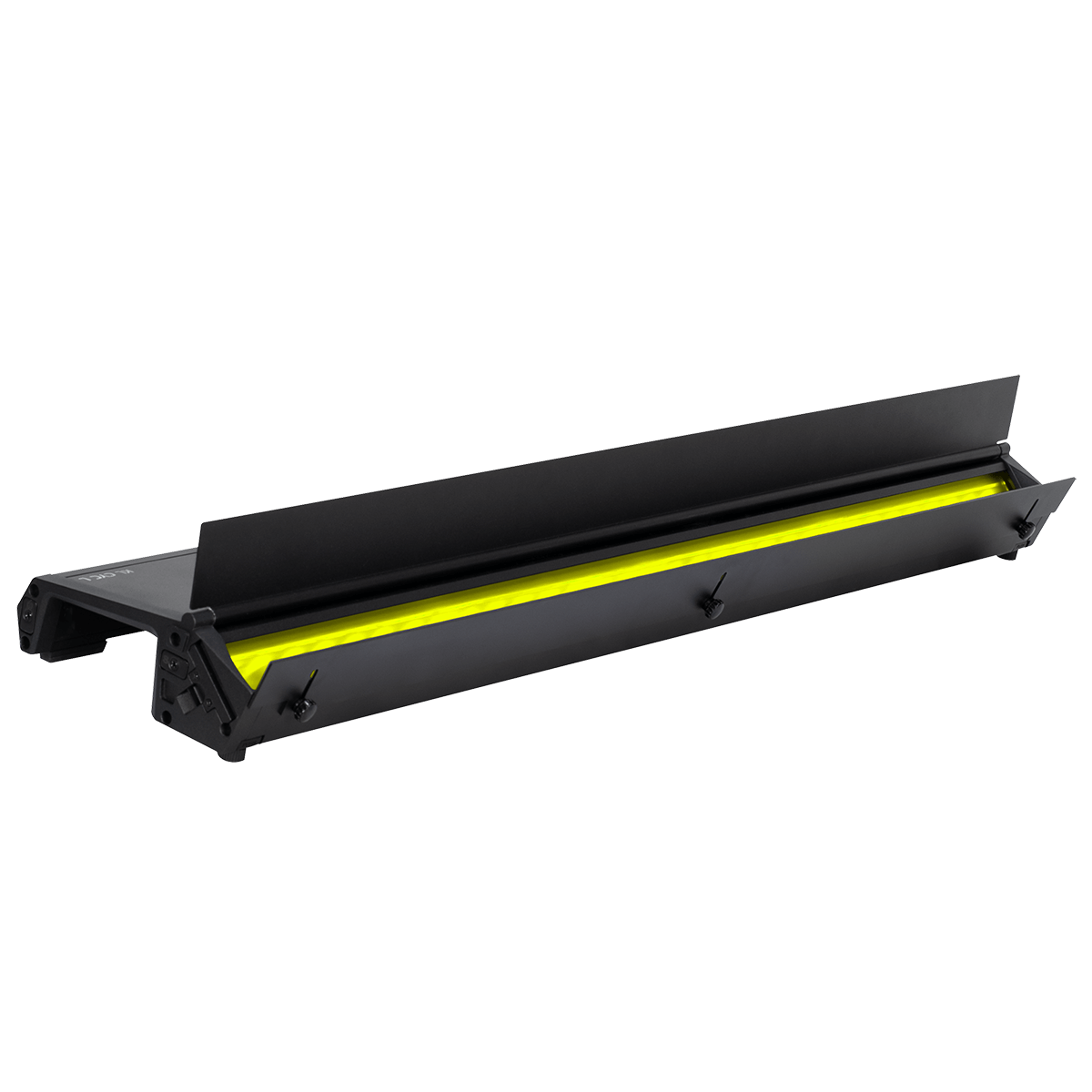

The KL CYC L is the perfect fixture for smooth and evenly illuminated cyclorama, set or wall washing application. It utilizes a carefully crafted asymmetrical reflector design to achieve perfect blends while covering significant heights with ease.
SPECIFICATIONS
SOURCE
- 180W RGBMA LED Array
- 30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- Total Lumen Output:
- 9,249 (Integrating Sphere)
- 8,606 (Goniometer)
- CRI: 96.5
- TLCI: 88
- Filter:
- Beam Angle: 40° x 90°
- Field Angle: 85° x 160°
- No Filter:
- Beam Angle: 25° x 75°
- Field Angle: 80° x 125°
EFFECTS
- EdgeLight Safety Feature
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR
- RGBMA Color Array
- Up to Four Control Segments
- CMY, RGB Emulation
- Variable CCT 2,400K - 8,500K
- Green/Magenta Shift
- Virtual Gel Swatch Book
CONTROL/CONNECTIONS
- 11 DMX Channel Modes (1ch, 4ch, 4ch, 4ch, 11ch, 12ch, 13ch, 16ch, 19ch, 20ch, 31ch, 32ch, 56ch)
- 4 Button Control Panel, LED Display
- RDM (Remote Device Management)
- 5pin DMX In/Out
- RJ45 Locking Ethernet In/Out
- IP65 Locking Power Cable In/Out
