Product Description

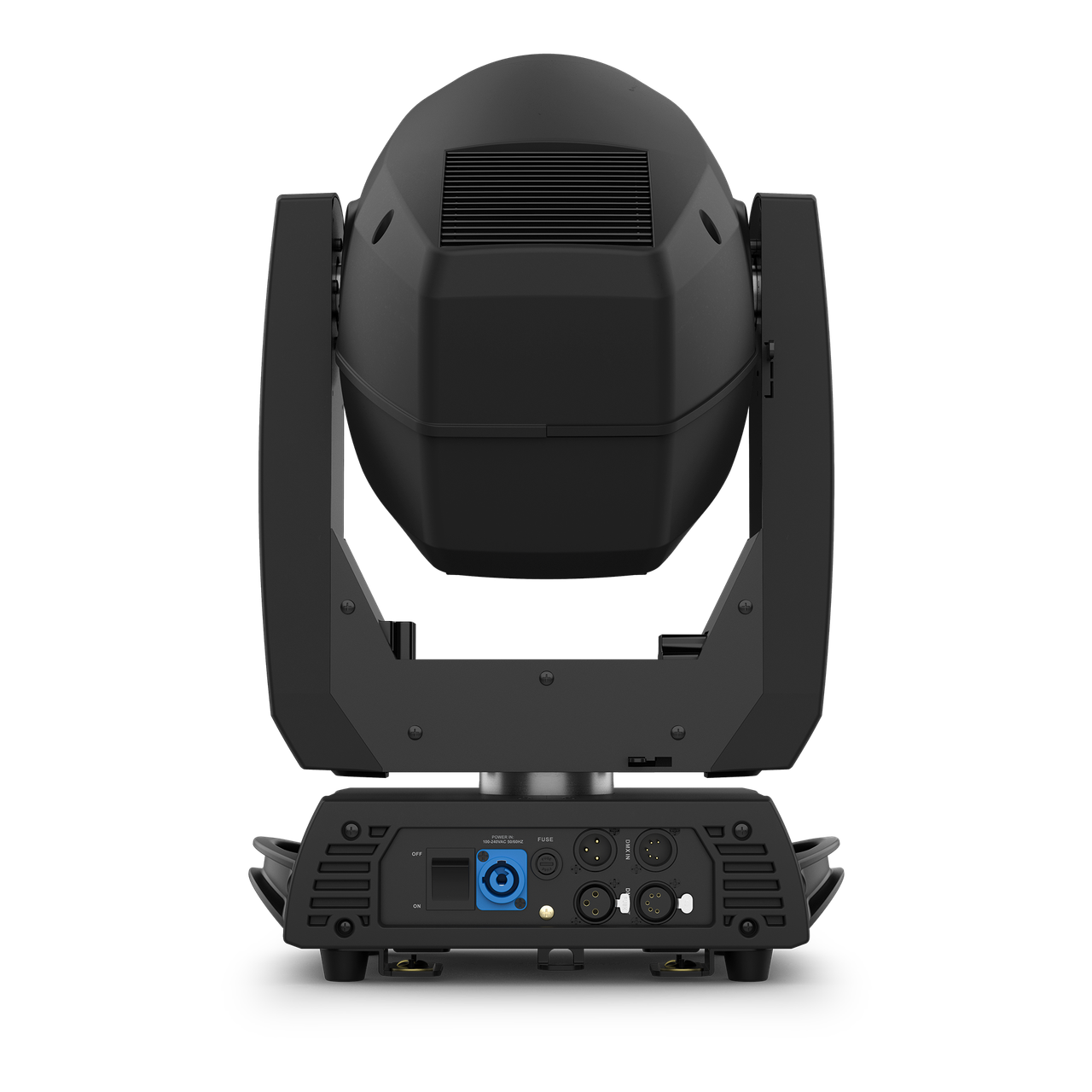

The Rogue R3 Beam is a powerful 300W moving head fixture that produces an intense, ultra-narrow 0.8° beam, featuring a 14-color wheel, a 17-gobo wheel, and dual overlapping 8 and 24-facet prisms for dynamic aerial effects. Perfect for large-scale concerts, festivals, and productions requiring powerful, long-throw aerial beam effects that make a significant visual impact.
SPECIFICATIONS
- Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
- Color Temperature (at full): 7657 K
- CRI: 80.8
- Front Lens Diameter: 153 mm
- Beam Angle: 0.8°
- Field Angle: 1.6°
- Cutoff Angle: 2°
- Lumens – Output: 30,878
- Illuminance (total): 208,006 lux @ 15 m
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Colors: 14 + white, split colors, continuous scroll at variable speeds
- Gobos: 17 + open (17 metal), continuous scroll at variable speeds
- Dimmer: Motorized
- Shutter/Strobe: Motorized
- Focus: Motorized
- Frost: Motorized
- Prism: 8 facets, motorized, rotating
- Prism: 24 facets, motorized, rotating
- Strobe Rate: 0 to 15 Hz
- Move in Black: Yes
- Power Connection: Edison (Local) plug to Neutrik
- Power Input: Neutrik powerCON
- Power Output: Neutrik® powerCON®
- Data Connectors: 3- and 5-pin XLR
- Control Protocol: DMX, RDM
- DMX Channels: 16 or 19
- Modes/Personalities: 2 personalities (16, 19)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 422 W, 4.20 A @ 100 V, 60 Hz
- Power and Current: 418 W, 3.55 A @ 120 V, 60 Hz
- Power and Current: 411 W, 1.98 A @ 208 V, 60 Hz
- Power and Current: 411 W, 1.78 A @ 230 V, 50 Hz
- Power and Current: 406 W, 1.68 A @ 240 V, 50 Hz
