Product Description

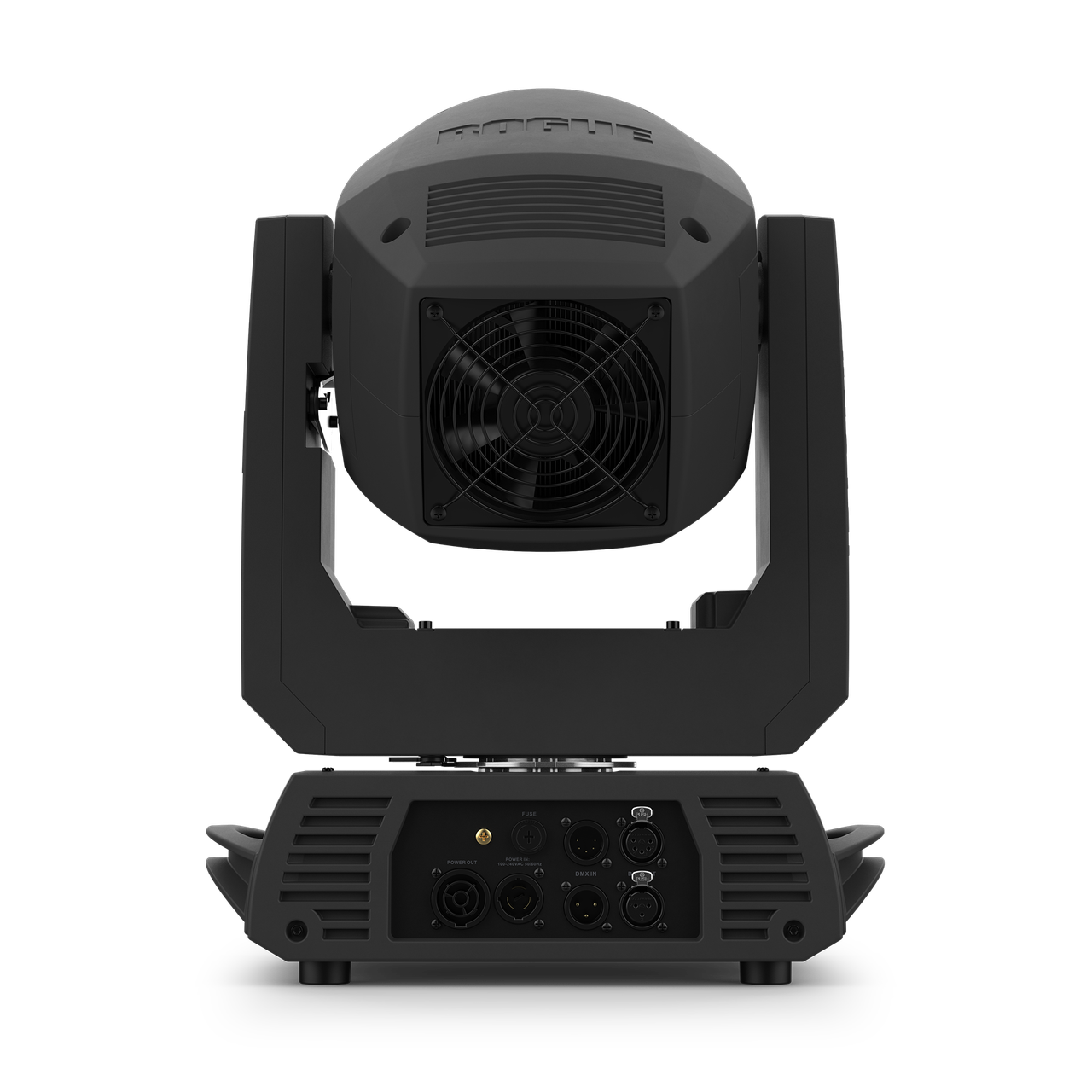

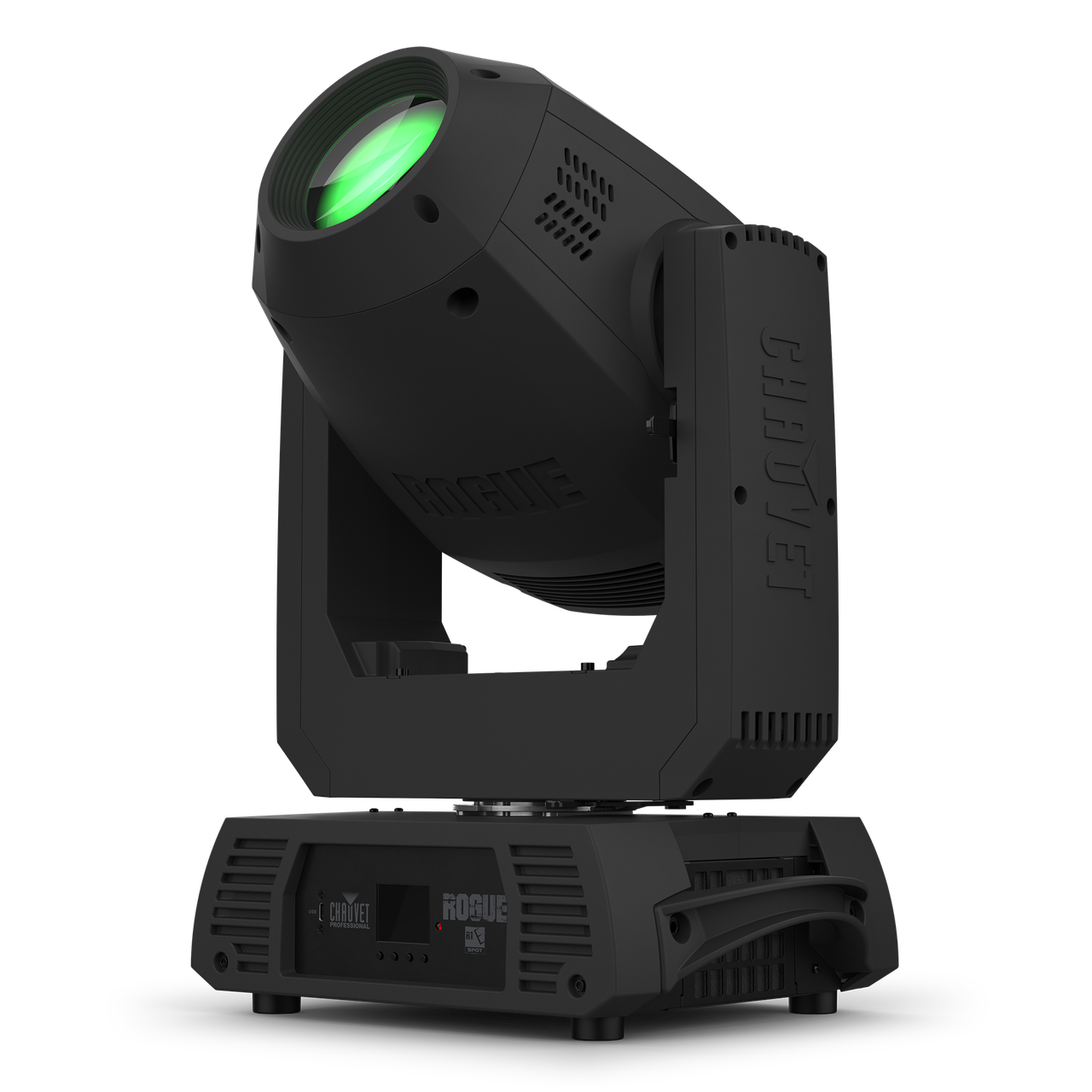

A compact and lightweight moving yoke spot that delivers intense output from a 200W LED engine, offering a full effects package with a rotating prism, dual gobo wheels, motorized iris, and frost for versatile beam shaping. Perfect for mobile entertainers, small to medium-sized venues, and lighting designers seeking to expand an existing rig with a feature-packed yet compact spot fixture.
SPECIFICATIONS
- Light Source: 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy
- Color Temperature (at full): 7423 K
- Front lens diameter: 90mm
- CRI: 68
- Beam Angle: 15.3°
- Field Angle: 18.7°
- Cutoff Angle: 20.3°
- Lumens – Source: 17,900
- Lumens – Output: 12,210
- Illuminance (total): 9,021 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 270° pan/270°, 180°, 90° tilt
- Colors: 8 + white, split colors, continuous scroll at variable speeds
- Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Focus: Motorized
- Iris: Motorized
- Prism: 3 Facets, motorized, rotating
- Strobe Rate: 0 to 22 Hz
- Move in Black: Yes
- Power Connection: Edison (local) plug to Seetronic PowerKon
- Power Input: Seetronic PowerKon
- Power Output: Seetronic PowerKon
- Data Connectors: 3- and 5-pin XLR
- Control Protocol: DMX, RDM
- DMX Channels: 16 or 19
- Modes/Personalities: 2 personalities (16, 19)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V
- Power and Current: 315 W, 2.63 A @ 120 V, 60 Hz
- Power and Current: 306 W, 1.50 A @ 208 V, 60
- Power and Current: 303 W, 1.36 A @ 230 V, 50 Hz
