Product Description

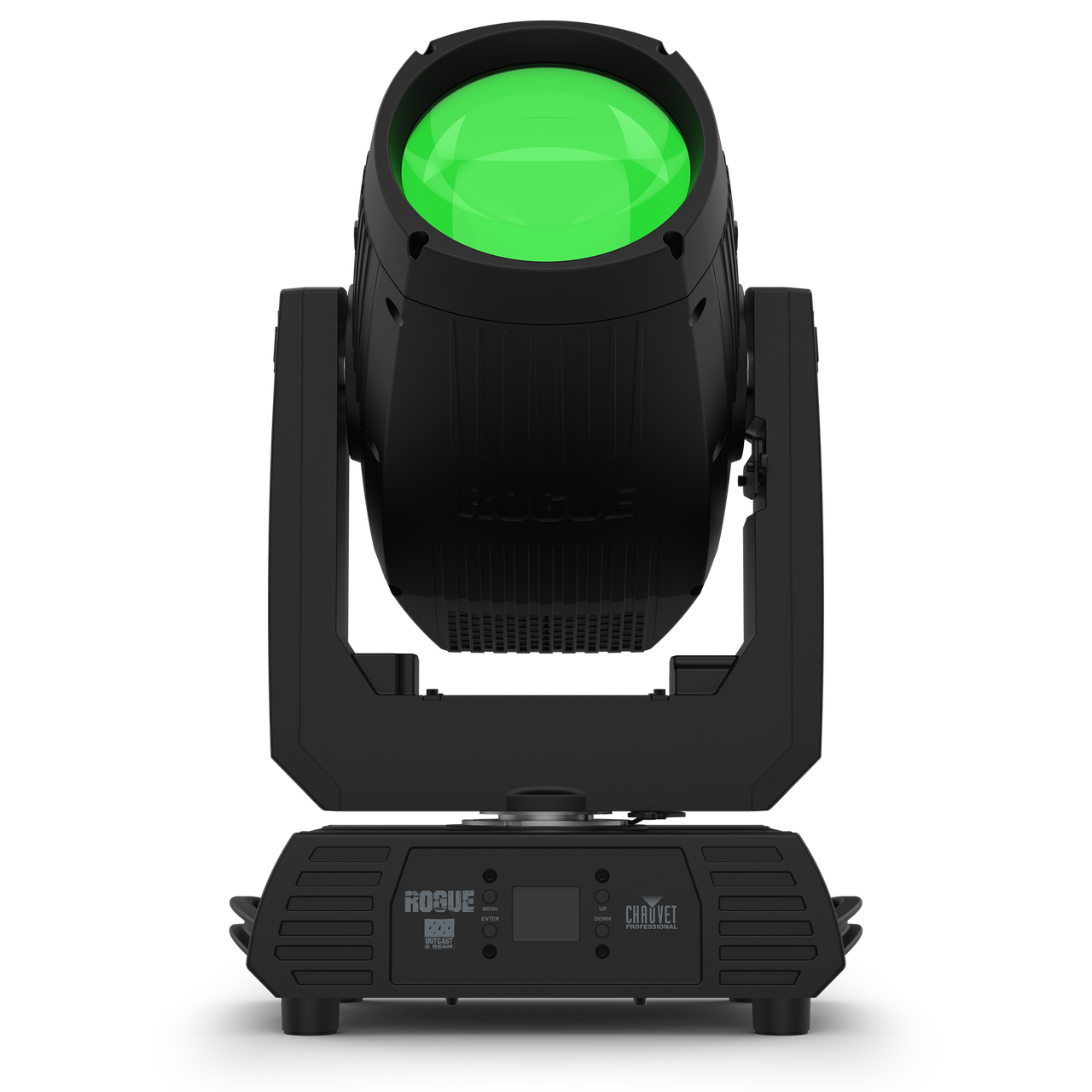

A lightweight, IP65-rated moving head beam fixture that harnesses a powerful 300W lamp to project an intensely bright, tight beam with multifaceted aerial looks from split colors, gobos, and rotating prisms. Suited for both indoor and outdoor productions, including tours, festivals, and large-scale events that demand a powerful, weather-resistant fixture for creating cutting aerial beam effects.
SPECIFICATIONS
- Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
- Color Temperature (at full): 7353 K
- Front lens diameter: 160 mm
- CRI: 75.5
- Beam Angle: 0.8°
- Field Angle: 1.6°
- Cutoff Angle: 2°
- Lumens – Output: 29,130
-
Illuminance (total): 204,855 lux @ 15 m
- Pan and Tilt: 540°/260°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
- Colors: 14 + white, split colors, continuous scroll at variable speeds
- Gobos: 17 + open (17 metal), 17 static, continuous scroll at variable speeds; size: 106 mm (outside), 6 mm (image), 0.6 – 0.8 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Motorized
- Focus: Motorized
- Frost: Motorized
- Move-in-Black: Yes
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP rated
- Control Protocol: DMX, RDM
- DMX Channels: 16 or 18
- Modes/Personalities: 2 personalities (16, 18)
