Product Description

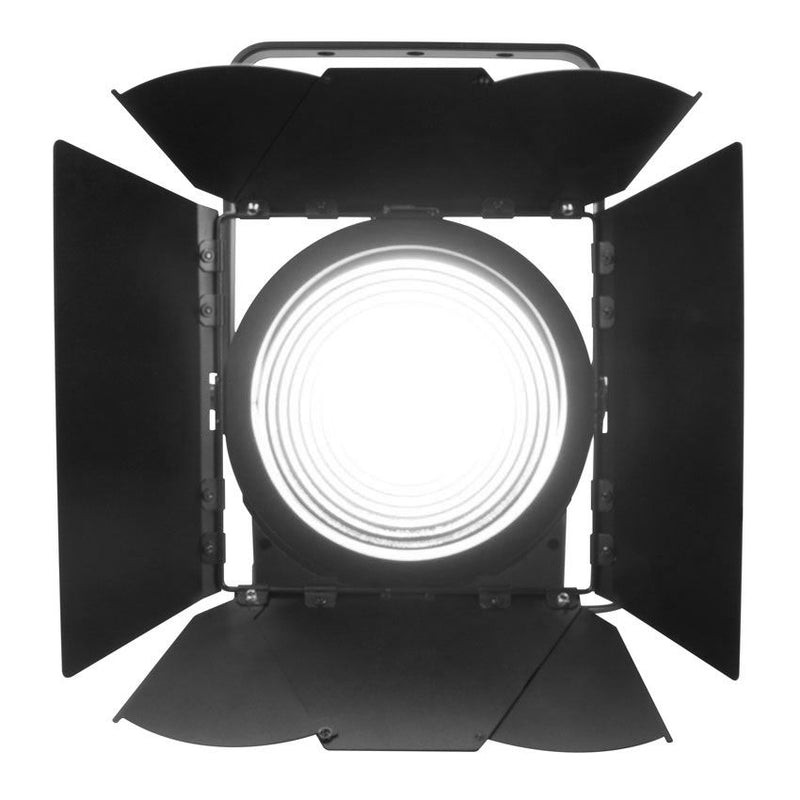

The KL FRESNEL 8 CW™ is a 350W 5,600K >97CRI cool white LED Fresnel, producing over 14,000 total lumen output. Features include manual and DMX control, 11° to 56° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and film, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 locking power cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).
SPECIFICATIONS
SOURCE
- 350W Cool White LED Engine, 5,600K, 97CRI
- 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- Up to 14,000 Total Lumen Output
- 16,762 LUX 1,557 FC @ 9.8’ (3m) (Min. Zoom)
- 1462 LUX 136 FC @ 9.8’ (3m) (Max. Zoom)
- Zoom Range: 11° - 56°
- Beam Angle: 11° - 56.2°
- Field Angle 17.9° - 77°
EFFECTS
- Motorized Zoom
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR
- 5,600K Cool White LED
CONTROL/CONNECTIONS
- Manual and DMX Controlled Dimmer, Shutter and Zoom
- Dimmer and Zoom Rotary Dials
- (5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
- 4 Button Control Panel LCD Menu Display
- RDM (Remote Device Management)
- 3/5pin DMX and IP65 Locking Power In/Out Connection
- With Wired Digital Communication Network
