Product Description

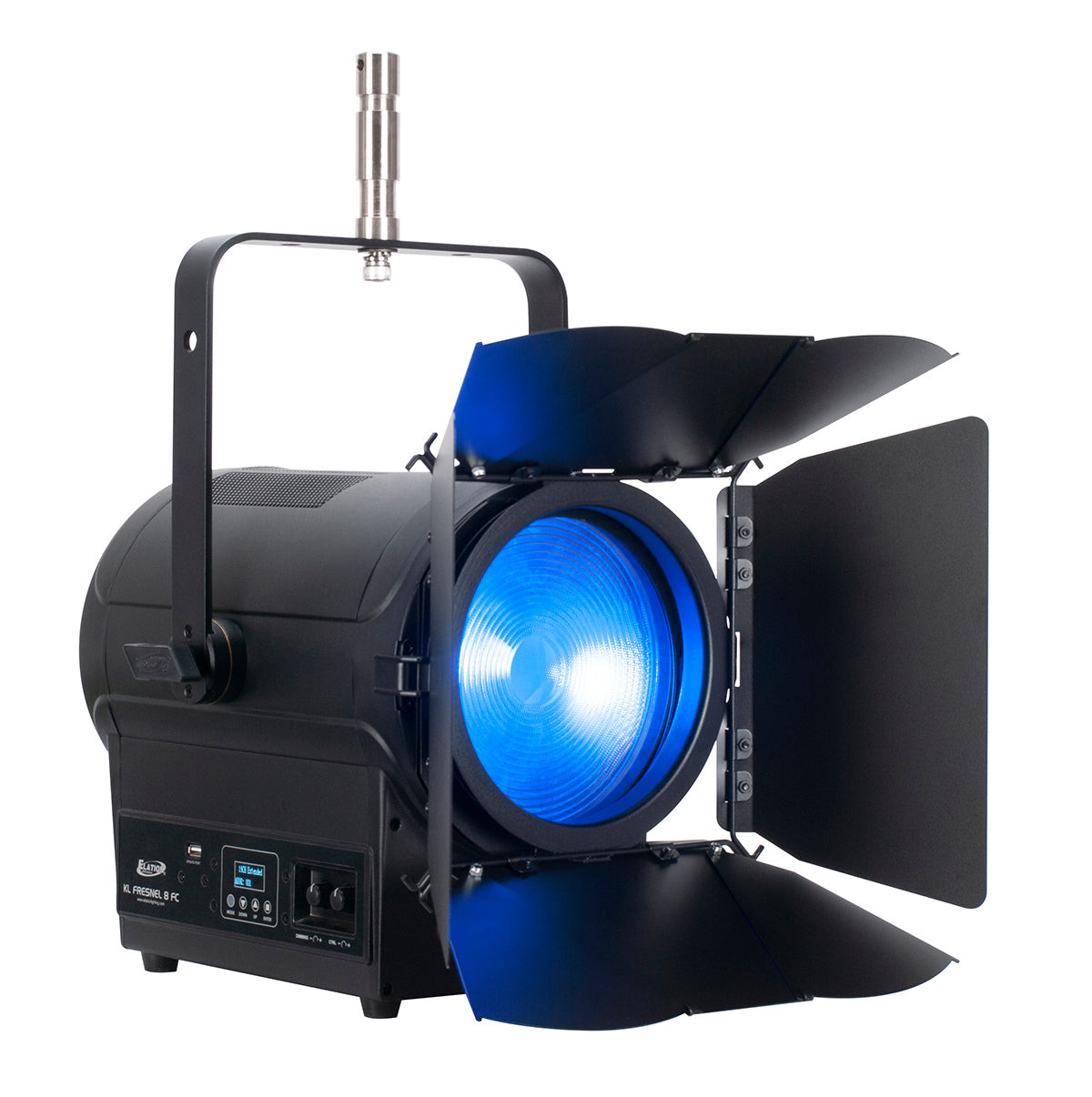

The KL FRESNEL 8 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels. The KL FRESNEL 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 18,000 field lumens with a motorized zoom range of 10° to 50°.
With the new ColourTune Technology software the fixture offers outstanding color rendering with a high CRI of 94.5 and TLCI of 94, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.
The KL FRESNEL 8 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of zoom, intensity, color temperature, green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.
SPECIFICATIONS
SOURCE
- 6000K RGBMA LED Engine
- 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- 18,000 Total Lumen Output
- CRI: 94.5
- TLCI: 94
- Zoom Range: 10° - 50°
- Beam Angle: 10.4° - 50.8°
- Field Angle: 20.6° - 66.1°
EFFECTS
- Motorized Zoom
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR
- High Brightness and High Fidelity Output Options
- RGBMA Color Array
- CMY Emulation
- 16bit Fully Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Dim-to-Warm Fade
- Virtual Gel Swatch Book
CONTROL/CONNECTIONS
- 11 DMX Channel Modes (1, 5, 7, 11, 12, 19, 20, 10, 15, 16, 14)
- Manual and DMX Controlled Dimmer, Color and Zoom
- Dual Rotary Dials
- 4 Button Control Panel, LED Display
- RDM (Remote Device Management)
- 3/5pin DMX and IP65 Locking Power In/Out Connection
