Product Description

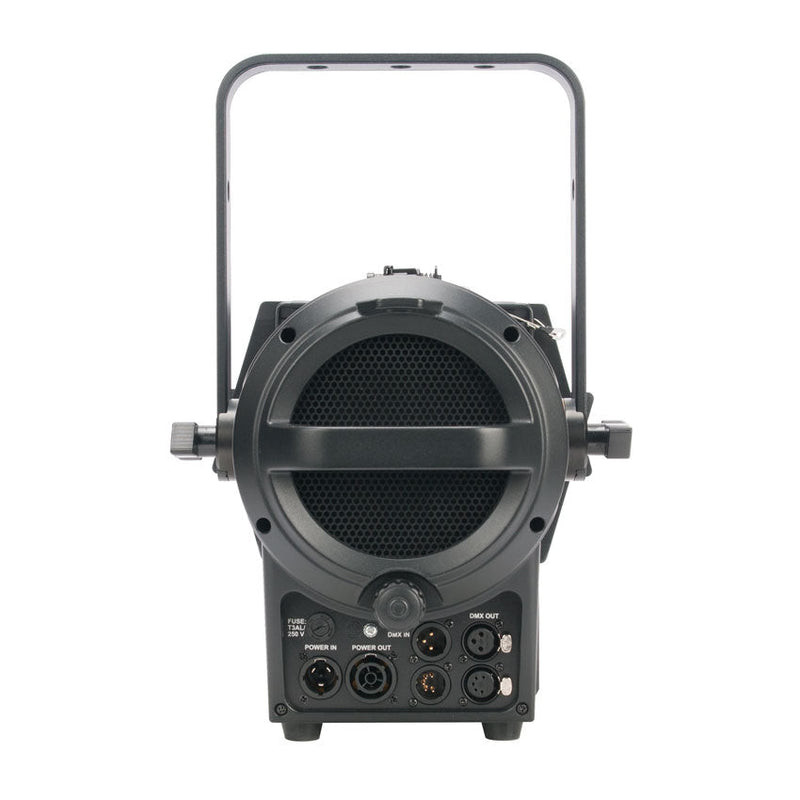

Elation's KL FRESNEL 6CW™ is a 150W 5,600K >97CRI cool white LED Fresnel, producing over 8,500 total lumen output. Features include manual and DMX control, 16° to 39° wide manual zoom, manual and DMX controlled dimmer and shutter, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and film, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 locking power cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.
SPECIFICATIONS
SOURCE
- 150W Cool White LED Engine 5,600K, 97CRI
- 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- 8,500+ Total Lumen Output
- 9,269 LUX 861 FC @ 9.8’ (3m) (Min. Zoom)
- 2,334 LUX 217 FC @ 9.8’ (3m) (Max. Zoom)
- Zoom Range: 16° - 39°
- Beam Angle: 16.1° - 38°
- Field Angle: 39.1° - 53.9°
EFFECTS
- Manual Zoom
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR
- 5,600K Cool White LED
CONTROL/CONNECTIONS
- Manual and DMX Controlled Dimmer and Shutter
- Dimmer and Zoom Rotary Dials
- (5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
- 4 Button Control Panel LCD Menu Display
- RDM (Remote Device Management)
- 3/5pin DMX and IP65 Locking Power Cable In/Out
- With Wired Digital Communication Network
