Product Description

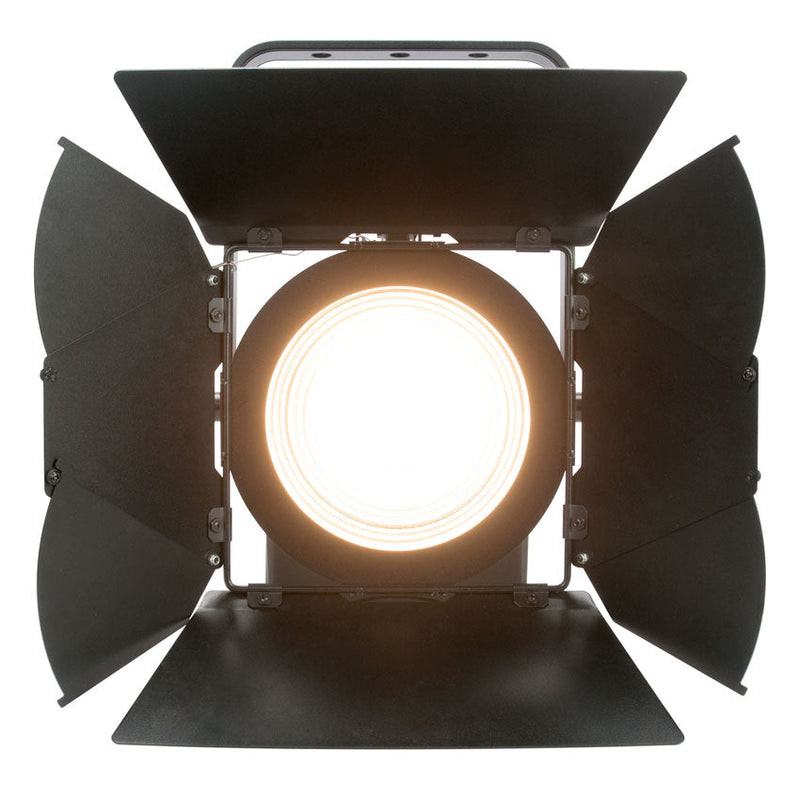

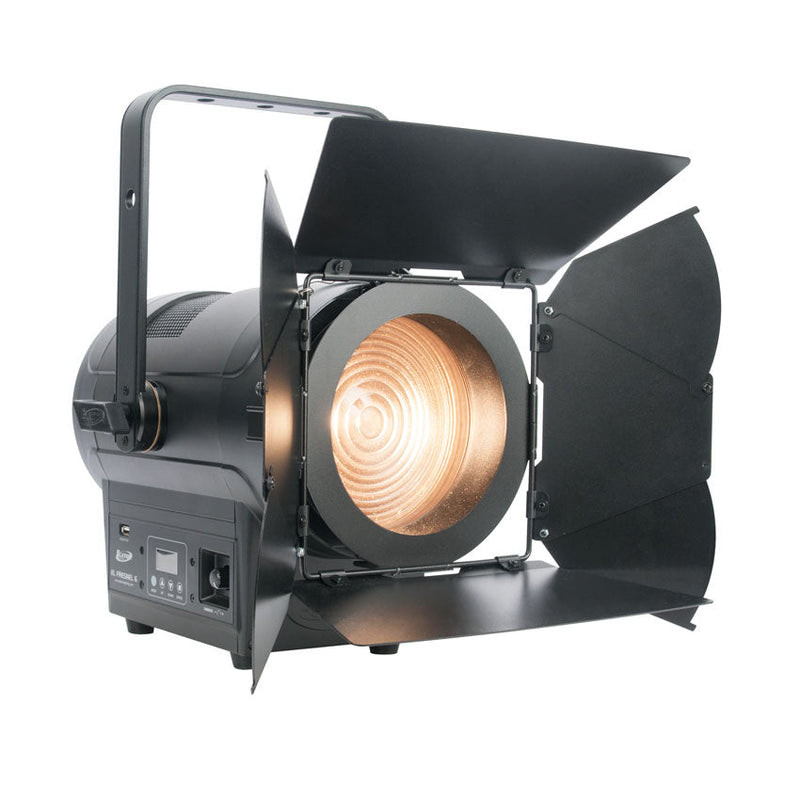

The KL FRESNEL 6™ is a 150W 3,000K >95CRI Warm White LED Fresnel, producing over 6,500 total lumen output, on par with compatible tungsten halogen models. Features include manual and DMX control, 15° to 38° wide manual zoom, manual and DMX controlled dimmer and shutter, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and film, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 locking power cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.
SPECIFICATIONS
SOURCE
- 150W >95CRI 3,000K Warm White LED
- 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming
PHOTOMETRIC DATA
- 6,500+ Total Lumen Output
- 17,829 LUX 1,656 FC @6.6’ (2m) (Min Zoom / Full ON)
- 4,412 LUX 410 FC @6.6’ (2m) (Max Zoom / Full ON)
- Zoom Range: 15° - 38°
- Beam Angle: 15.5° - 38°
- Field Angle: 23.4° - 51.8°
EFFECTS
- Manual Zoom
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR
- Warm White 3,000K
CONTROL/CONNECTIONS
- Manual and DMX Controlled Dimmer and Shutter
- Dimmer and Zoom Rotary Dials
- (5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
- 4 Button Control Panel LCD Menu Display
- RDM (Remote Device Management)

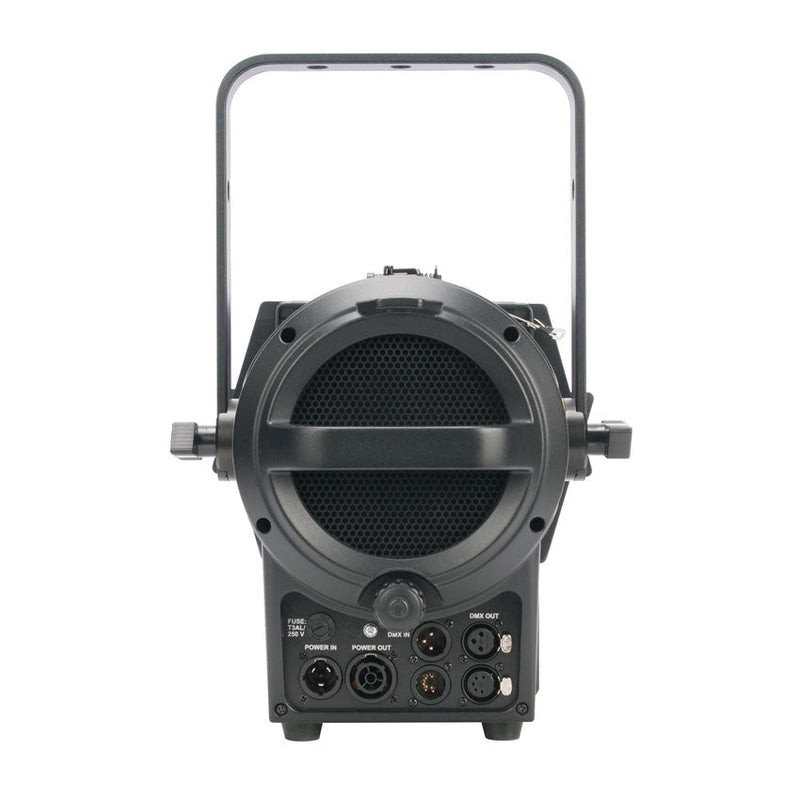

- 3/5pin DMX and IP65 Locking Power Cable In/Out
- With Wired Digital Communication Network
