Product Description

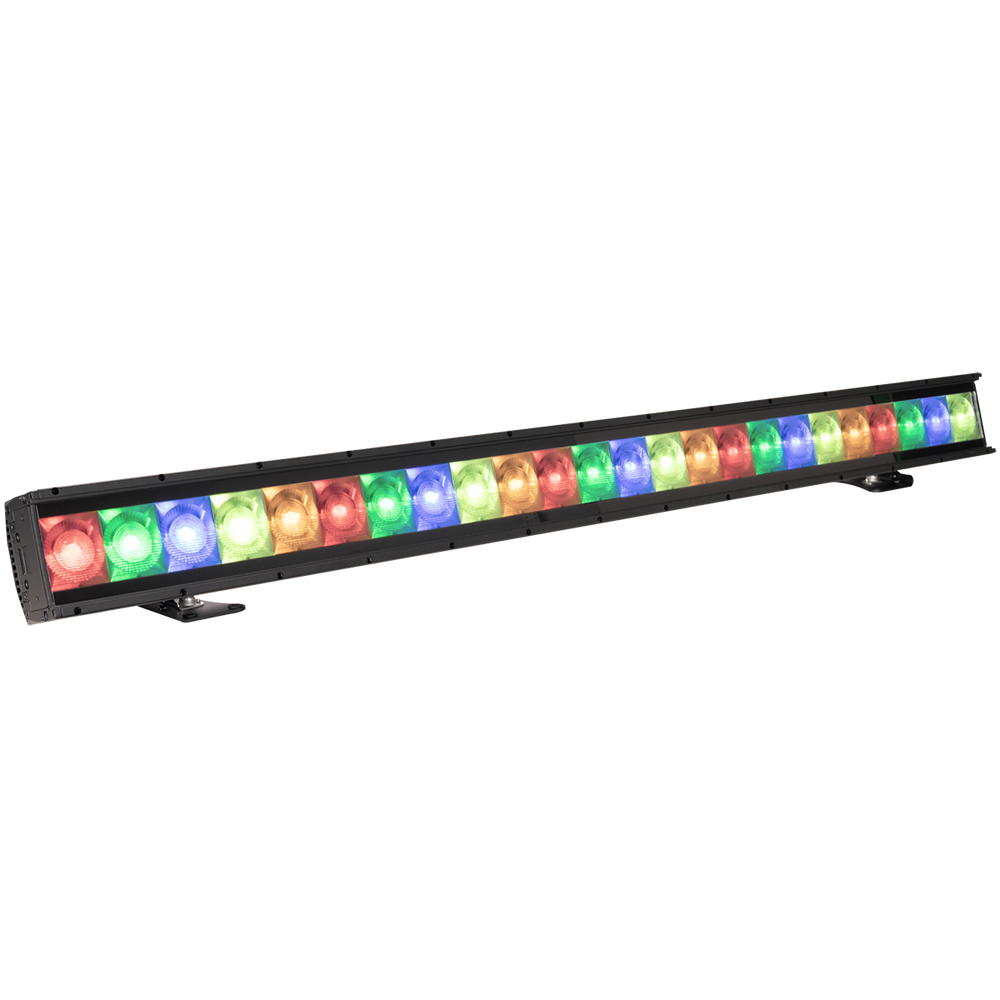

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output. Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 61,000 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks.
SPECIFICATIONS
SOURCE
- (24) x 100W RGBMA LEDs
- 30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- Total Lumen Output: 61,275 (Integrating Sphere)
- CRI: 94.9
- TLCI: 95
- Beam Angle: 82° x 22°
- Field Angle: 97° x 53°
EFFECTS
- Full Pixel Control
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR
- RGBMA Color Array
- CMY Emulation
- 16bit Fully Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Dim-to-Warm Fade
- Virtual Gel Swatch Book
CONTROL/CONNECTIONS
- 52 DMX Channel Modes (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch, 24ch, 32ch-A, 32ch-B, 80ch, 56ch, 96ch, 36ch, 48ch-A, 48ch-B, 120ch, 80ch, 142, 72ch, 96ch-A, 96ch-B, 240ch, 152ch, 174ch)
- 4 Button Control Panel, Color LED Display
- RDM (Remote Device Management)
- Aria x2 Wireless Device Management
- NFC Configuration
- IP65 5pin XLR DMX In/Out
- IP65 RJ45 Ethernet In/Out (Art-Net sACN)
- IP65 Locking Power Cable In
