Product Description
Overview

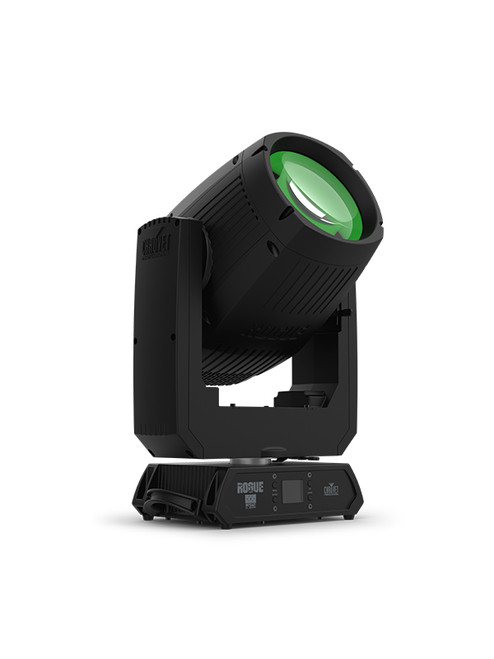

Rogue Outcast 1L Beam is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layerable dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.
Features
- Fully featured, high powered IP65 rated LED beam fixture
- Lightweight and durable aluminum/magnesium alloy body
- Fast and precise movement of pan and tilt functions
- Individually controllable and layerable 5- and 8-facet prisms
- Frost for softening beam edges and effects
- 5-pin DMX input/output connections
- Tight 1.4° beam for extremely focused areal effects
- RDM enabled for remote addressing and troubleshooting
- 7 rotating and 7 static gobos on one wheel for dynamic gobo effects
- Easy to read OLED display with simple, effective menu options
- Simple and complex DMX channel profiles for programming versatility
- USB-C port for uploading software
Product Videos
Videos Hide Videos Show Videos
Custom Field
varPOA 1
varSpecTab 1
Fixture Type Beam
varSectionName Optical
Light Source 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
Color Temperature 6928K (at full)
Front lens diameter 160 mm
CRI 69.3
Beam Angle 1.4°
Field Angle 1.7°
Cutoff Angle 1.8°
Lumens – Source 5500
Lumens – Output 3218
Illuminance (total) 224,670 lux @ 5 m
varSectionName Dynamic Effects
Pan 540°
Tilt 260°
Pan and Tilt Ranges 540°, 360°, 180° pan/260°, 180°, 90° tilt
Colors 14 + white, split colors, continuous scroll at variable speeds
Gobos 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel (rotating) Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
Dimmer Electronic
Shutter/Strobe Motorized
Strobe Rate 0 to 20 Hz
Prism 1 5 Facets, motorized, linear, rotating
Prism 2 8 Facets, motorized, round, rotating
Move-in-Black Yes
varSectionName Construction / Physical
Dimensions 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
Weight 35.4 lb (16.1 kg)
Housing Material Aluminum/Magnesium diecast
varSectionName Connections
Power Input / Output Bare ended to Seetronic Powerkon IP65
Data Connector 5-pin IP rated
Cable Length (power) 5 ft (1.5 m)
varSectionName Control
Control Protocol DMX, RDM
DMX Channels 17 or 19
Art-Net/sACN Channels (Single Mode) 33 ch, 145 ch, 265 ch or 327 ch
Modes/Personalities 2 personalities (17, 19)
varSectionName Electrical
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current 233 W, 2.08 A @ 120 V, 60 Hz
varSectionName Certifications / Qualifications
Certifications CE, MET, UKCA,
IP Rating IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Temperature (Ambient) -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc) 80° C / 176° F
Maximum Ambient Temperature (ta) 45° C / 113° F
varSectionName What's Included
Rogue Outcast 1L Beam 1
Seetronic Powerkon IP65 power cord to bare wire 1
140mm Omega brackets with mounting hardware 2
