Product Description

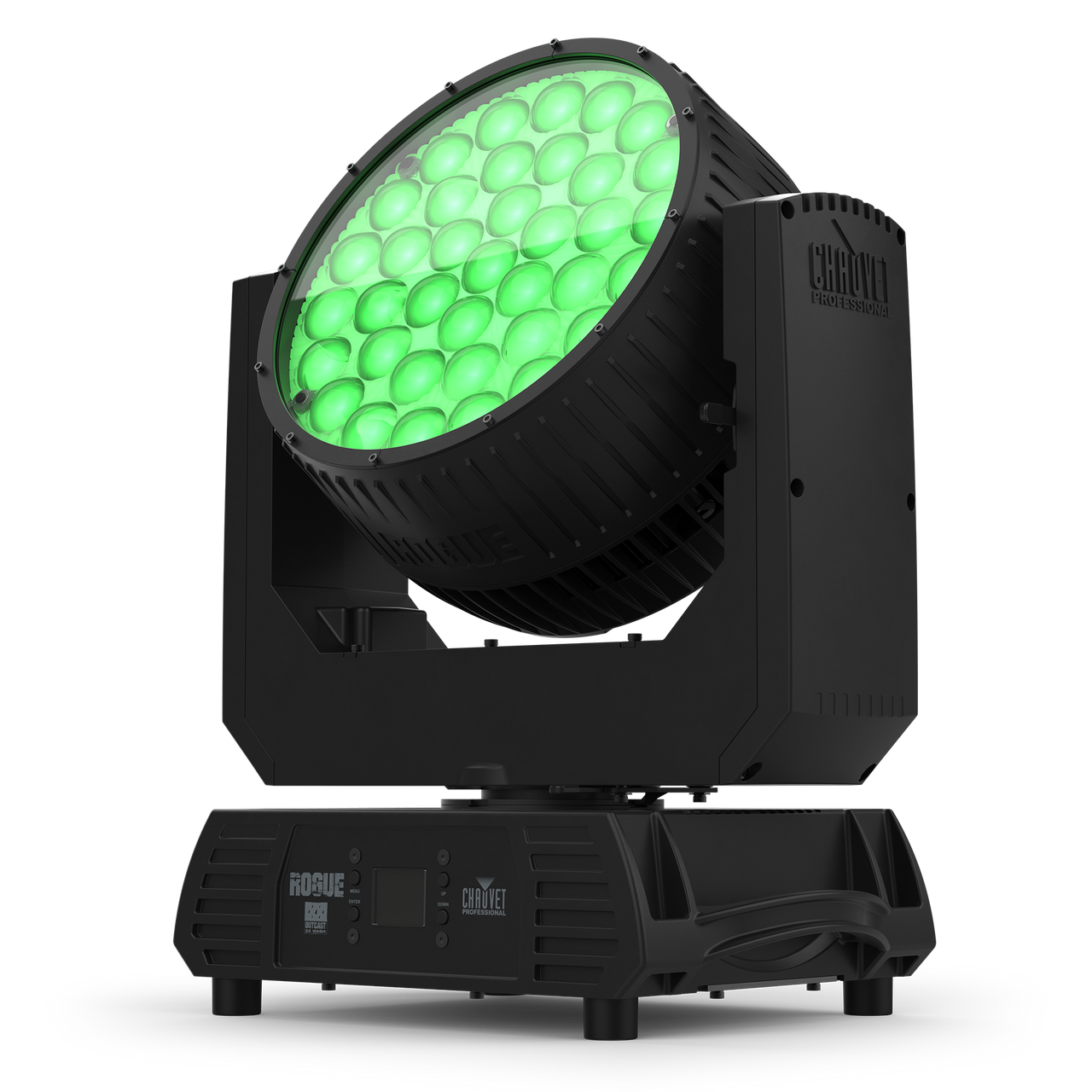

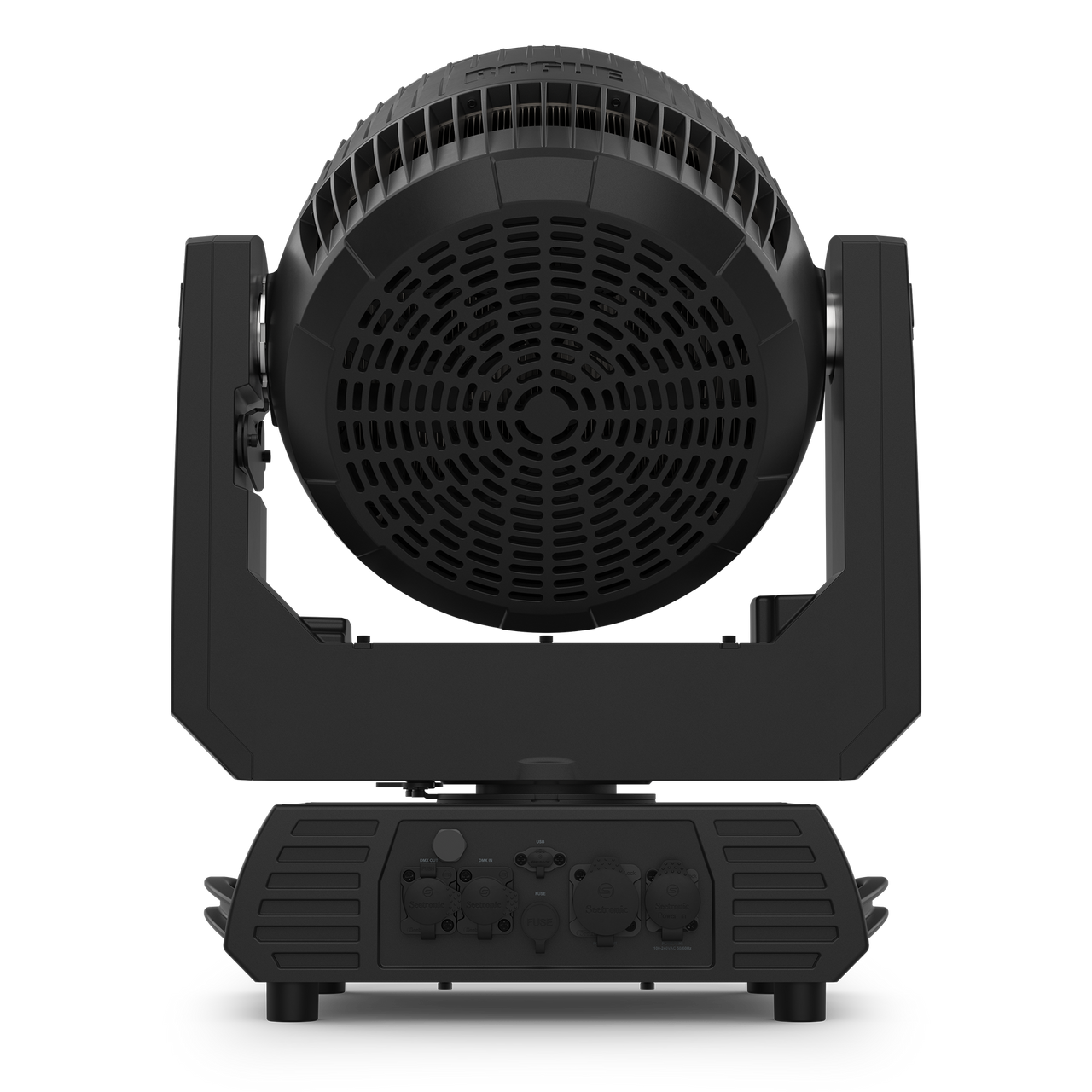

An IP65-rated LED wash fixture featuring a fast zoom, nine pixel-mappable zones, and 37 powerful RGBW LEDs that deliver excellent color blending and a strong output. Perfect for a wide range of applications from touring and outdoor festivals to on-camera use, especially in environments demanding durability against the elements.
SPECIFICATIONS
- Light Source: 37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 10000 K
- Beam Angle: 9.3° to 33.9°
- Field Angle: 11.6° to 49.5°
- Cutoff angle: 13.1° to 62.6°
- Zoom Angle: 9.3° to 62.6°
- Lumens – Source: 17,000
- Lumens – Output: 13,440
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 230° Tilt.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 25 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
- Power Connection: Edison (local) plug to Seetronic PowerKON IP65
- Power Input: Seetronic PowerKON IP65
- Power Output: Seetronic PowerKON IP65
- Data Connectors: 5-pin XLR
- Control Protocol: DMX, RDM
- DMX Channels: 21, 62, 71, 107
- Modes/Personalities: 4 personalities
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
- Power and Current: 711 W, 5.98 A @ 120 V, 60 Hz
- Power and Current: 701 W, 3.40 A @ 208 V, 60 Hz
- Power and Current: 695 W, 3.07 A @ 230 V, 50 Hz
