Product Description

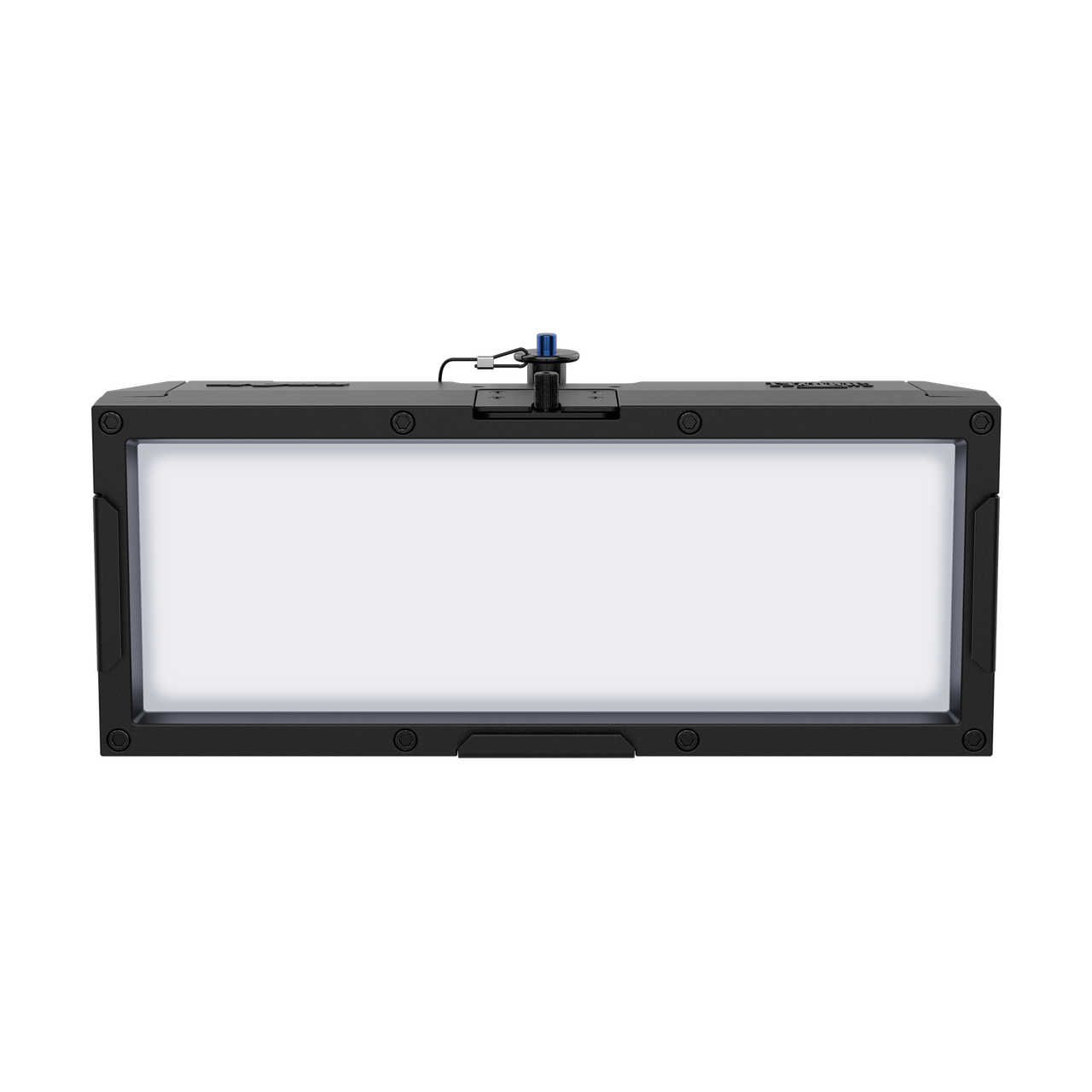

onAir Panel Min IP is a small and rugged IP65, full-spectrum LED soft light capable of facing all of the elements, outdoors or in. Ready to go on-location, or squeeze into any studio space with a low-trim, onAir Panel Min IP also features a superior quality of white light with high CRI/TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard LED menu. Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.
SPECIFICATIONS
- Light source: 40 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy
- Light source: 40 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy
- Color temperature (range): 2800 to 8000 K
- Color temperature (at max): 6367 K
- CRI: 95
- Beam Angle: 94.9°
- Field Angle: 149.4°
- Lumens: 2,573
- Illuminance: 47 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 27 Hz
- Independent color mixing: Yes
- Color temperature presets: Yes
- Dimming modes: 4
- Dim Curves: 4
- Built-in automated programs: Yes
-
Power connection:Edison plug (local) to Seetronic Powerkon IP65
-
Power input:Seetronic Powerkon IP65
-
Power Input:28 VDC, 3-pin IP65 XLR
-
Cable Length (power):5 ft (1.5 m)
- Software Connection: USB
- Control Protocol: CRMX, RDM
- DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15
- Modes/Personalities: 9 personalities (1, 3, 4, 5, 6, 8, 10, 11, 15Ch1)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 49 W, .419 A @ 120 V, 60 Hz
- Power and Current: 52 W, .260 A @ 208 V, 60 Hz
- Power and Current: 57 W, .246 A @ 230 V, 50 Hz
