Product Description

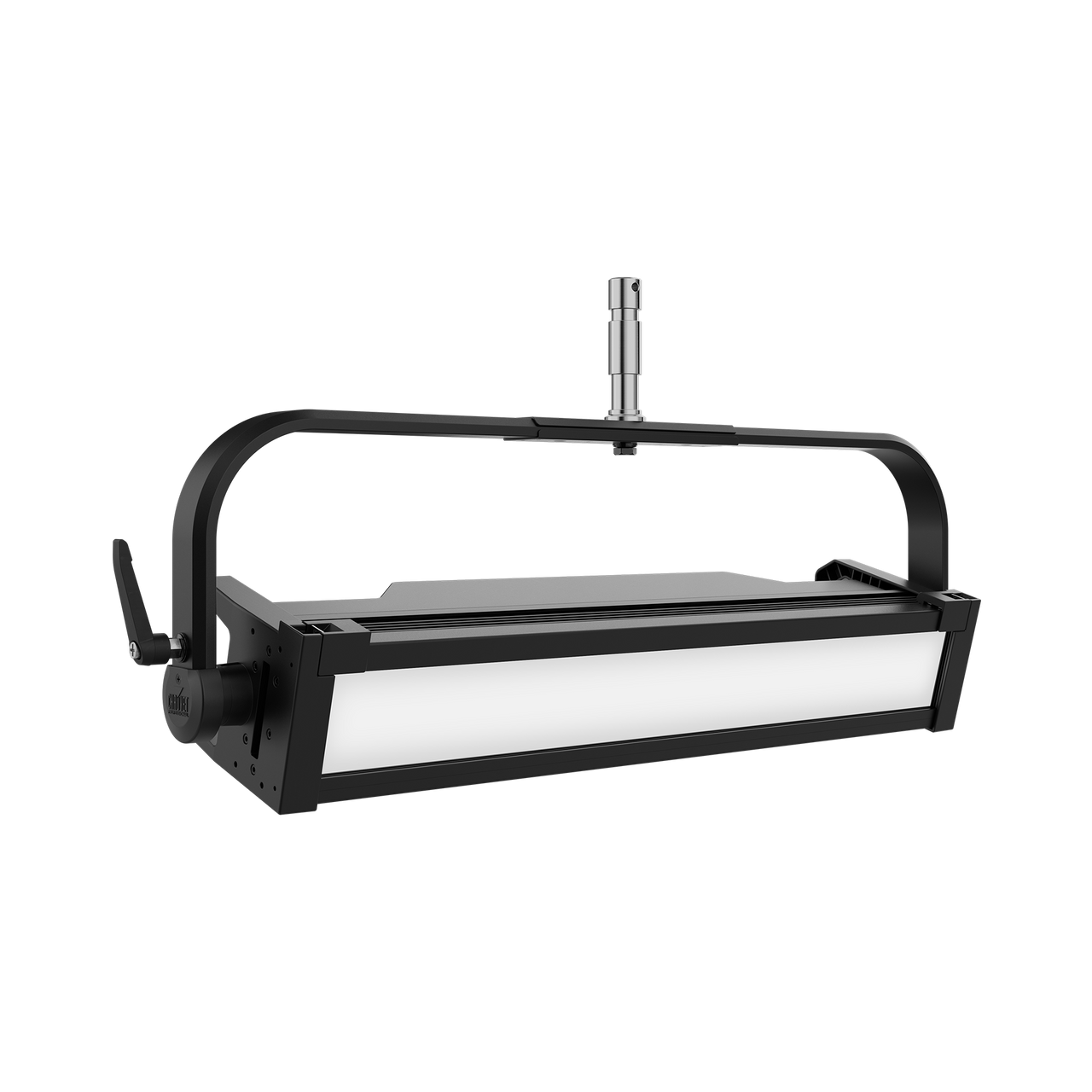

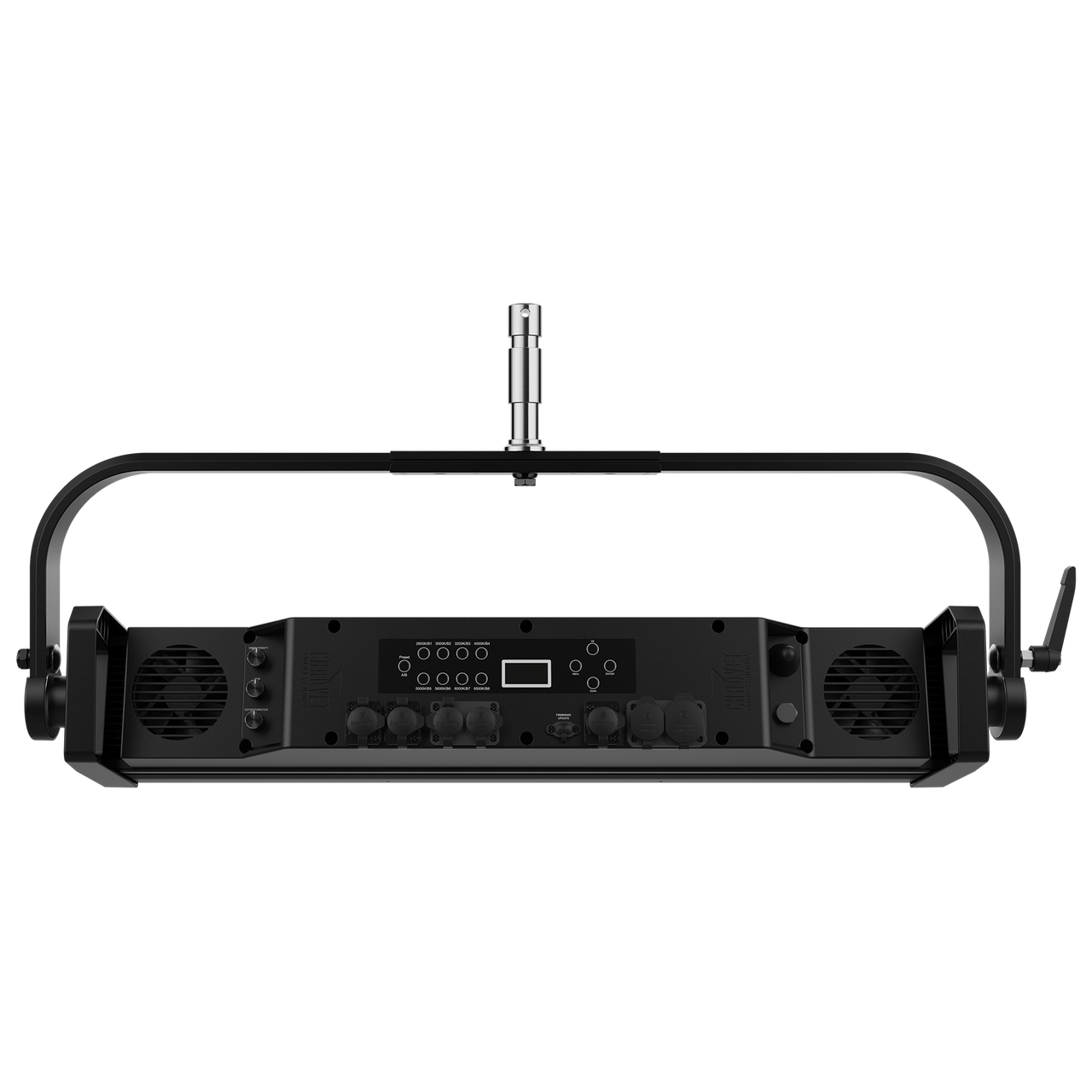

onAir Panel 3 IP is a rugged IP65 full-spectrum low-profile 1×3 format LED soft light capable of facing all of the elements, indoors or out. Ready to go on location for any broadcast setting, onAir IP Panel 3 features a superior quality of white light with high CRI/TLC and TM-30 scores, a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, the ability to produce a pop of color to achieve the exact look you are aiming to create, along with built-in customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket. Drop-in slot for diffusers and intensifier filters ensures ease of use when changing accessories. Adjustable PWM ensures camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs. DMX, RDM, CRMX, Art-Net, sACN, and onboard control options make for flexible operation.
SPECIFICATIONS
- Light Source: 120 LEDs (tri-color RGB) 1.5 W, (282 mA), 50,000 hours life expectancy.
- Light Source: 120 LEDs (WW) 0.5 W, (113 mA), 50,000 hours life expectancy.
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 5527K
- CRI (3200 K): 91.2
- Lumens (No Optics): 8080
- Lumens (Light Filter): 6896
- Lumens (Medium Filter): 6317
- Lumens (Heavy Filter): 5964
- Lumens (Intensifier Filter): 5498
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Power Connection: Edison (Local) plug to Seetronic Powercon IP65
- Power Input: Seetronic Powercon IP65
- Power Output: Seetronic Powercon IP65
- Power Input: 28 VDC, 3-pin IP65 XLR
- Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: Type-C USB
- Control Protocol: Art-Net, sACN, DMX, WDMX, CRMX, RDM
- DMX Channels: 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended
- Art-Net Channels: 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended
- Modes/Personalities: 14 personalities (1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 8 units @ 120 V; 14 units @ 208 V; 16 units @ 230 V
- Power and Current: 167 W, 1.392 A @ 120 V, 60 Hz
- Power and Current: 160 W, 0.823 A @ 208 V, 60 Hz
- Power and Current: 157 W, 0.747 A @ 230 V, 50 Hz
