Product Description

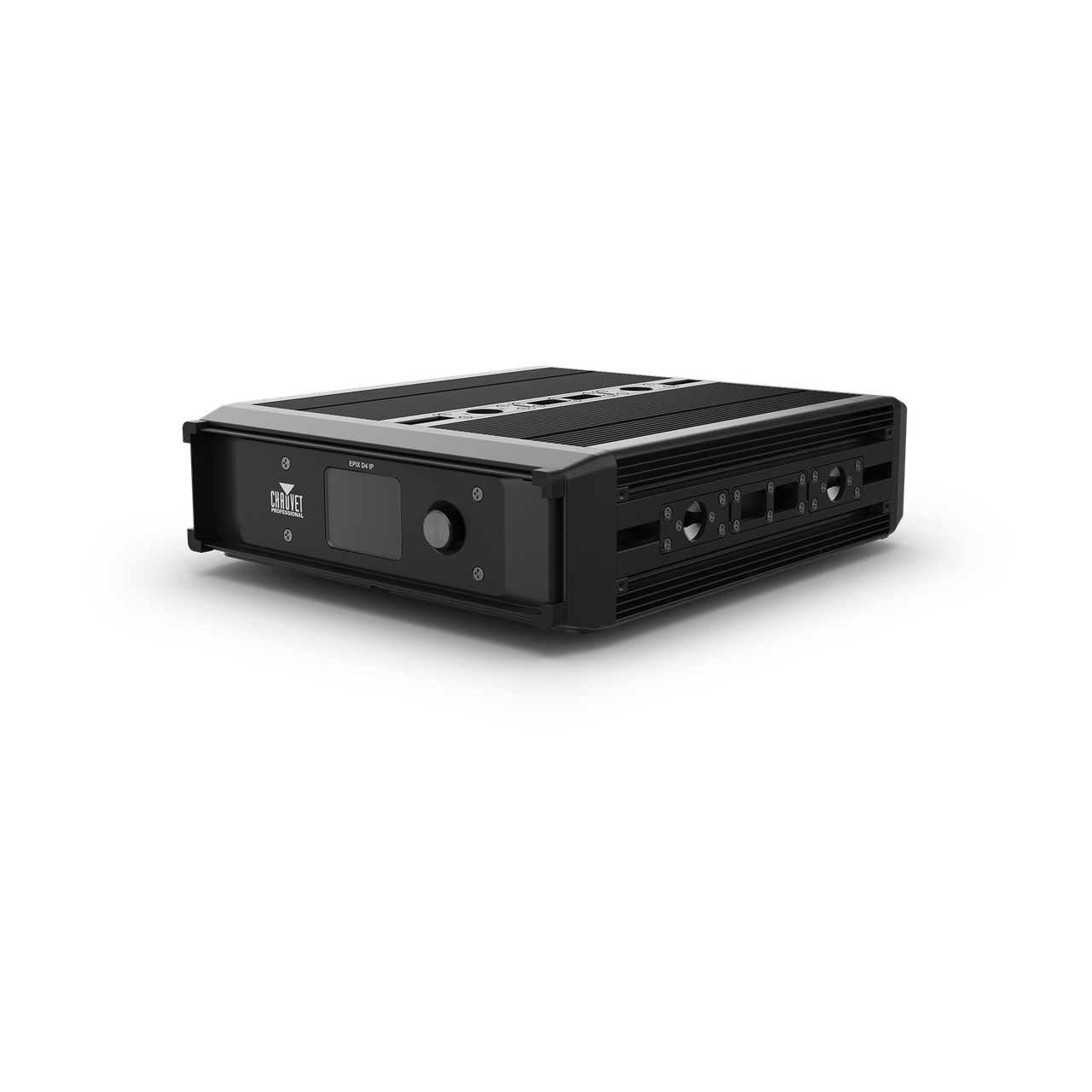

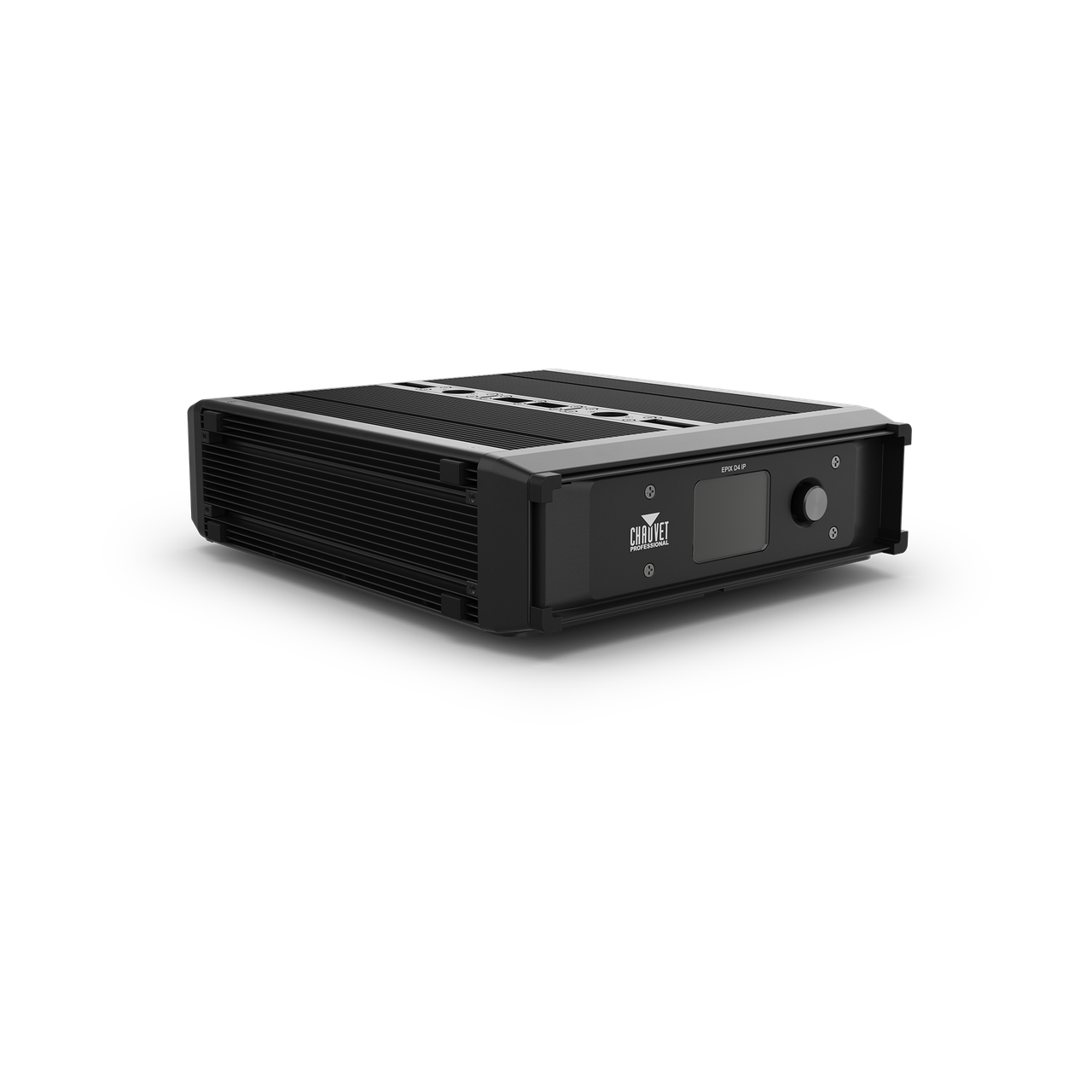

ÉPIX D4 IP is a 4-port drive housing the ÉPIX mapping system – built to easily detect, configure, and control outdoor-rated ÉPIX Line 10 IP and ÉPIX Line 10 IP S linear pixel strips. Its powerful processing unit handles addressing with the intuitive KLSTR push-and-pull mapping system, allowing users to focus on layouts and concepts.
ÉPIX D4 IP is the heart of this latest generation ÉPIX family that introduces a revolutionary new standard in video mapping and a robust new ecosystem. Users can easily create simple and effective designs with the app as well as push highly complex designs and visions through a scalable workflow using industry-standard MVR files.
Designed with modularity, serviceability, and universal connectivity at its core, ÉPIX D4 IP delivers full creative freedom, scalability, and industry-leading efficiency to lighting designers, systems designers, and rental and production houses.
SPECIFICATIONS
- Power input: Seetronic Powerkon (powerCON Compatible)
- Power output: Seetronic Powerkon (powerCON Compatible)
- Device output (4): 4-pin XLR (IP65)
- Data connectors (3): Seetronic etherKON (etherCON Compatible)
- Intended Load: ÉPIX Line 10 IP, ÉPIX Line 10 IP S
- Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
- Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line: 210 ft (64 m)
- Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line: 65 ft (20 m)
- Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line: 300 ft (91 m)
- Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line: 150 ft (45 m)
- Max. cable length (unshielded cables) between each ÉPIX Line: 100 ft (30 m)
- Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System]
- DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
- Video Refresh Rate: 60 Hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 0 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V; 3 units @ 240 V
- Power and Current: 1,200 W, 12 A @ 100 V, 60 Hz 1,200 W, 10 A @ 120 V, 60 Hz 1,200 W, 5.77 A @ 208 V, 60 Hz 1,200 W, 5.22 A @ 230 V, 50 Hz 1,200 W, 5 A @ 240 V, 50 Hz
