Product Description

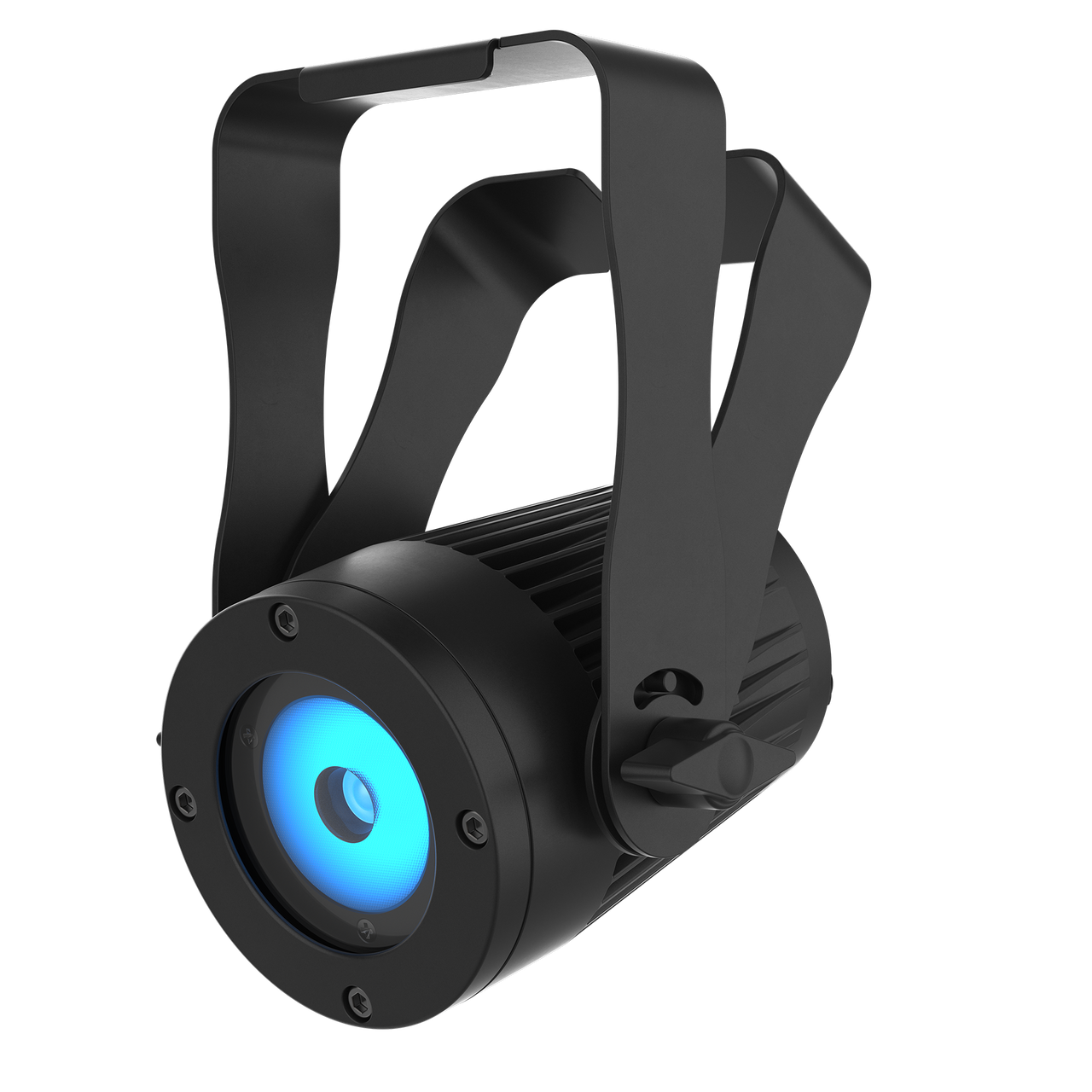

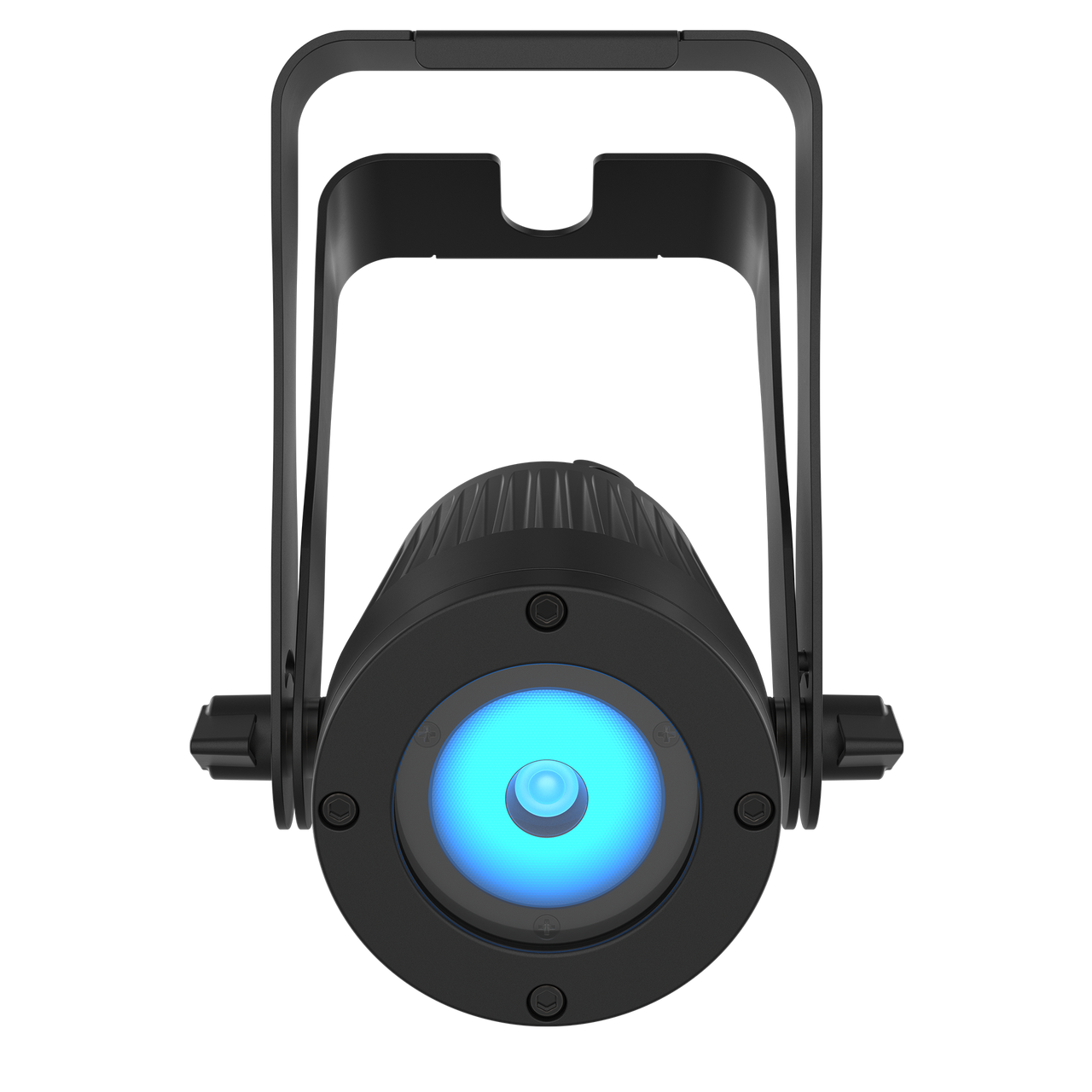

A compact, IP65-rated wash fixture powered by a single 40W hex-color RGBAW+UV LED for a tremendous punch of evenly mixed, saturated color. Its palm-sized, weatherproof design and flicker-free output make it ideal for discreet, high-impact accent lighting in broadcast, event, and architectural applications.
SPECIFICATIONS
- Light Source: 1 LED (Hex-color RGBWA+UV) 40 W, (950 mA), 50,000 hours life expectancy.
- Beam Angle w/ filter: 21.5°
- Field Angle w/ filter: 47.1°
- Beam Angle w/o filter: 11.4°
- Field Angle w/o filter: 20.4°
- Lumens: w/o filter: 890 lm
- Lumens: w/ filter: 733 lm
- Illuminance (total) w/ filter: 126 lux 5 m
- Illuminance (total) w/o filter: 618 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Dim Modes: 5
- Built-in Automated Programs: Yes
- Power Connection: Edison plugs to hard-wired
- Power Input: Hard-wired
- Data Connectors: 5-pin XLR DMX input and output cable whips
- Control Protocol: DMX, RDM
- DMX Channels: 6, 8, 9, 13 or 14
- Modes/Personalities: 5 personalities (6, 8, 9, 13 or 14)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 44 W, 0.68 A @ 120 V, 60 Hz
- Power and Current: 44 W, 0.48 A @ 208 V, 60 Hz
- Power and Current: 43 W, 0.44 A @ 230 V, 50 Hz
