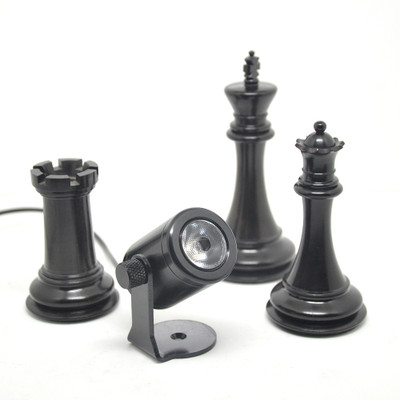

Gantom Precision Z Floodlight

Write a Review
$61.75 - $139.75

The Precision Z Floodlight produces a soft point-source light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package. The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration. The industrial machined aluminum chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor applications. Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.


  • Perfect for space constrained applications
  • Available in 6 colors: red, green, blue, amber, cool white, and warm white
  • 1W LED with 95% energy savings compared to 20W halogen lamp
  • Low voltage and minimal heat for improved safety over incandescent sources
  • Internal constant current driver gives highly efficient and consistent output
  • Dimmable using PWM power input from external constant voltage dimmer (10%-100%)
  • Easy installation and reconfiguration
  • Dual polarity input
  • Minimal maintenance required with over 50,000 hour lamp life
  • Storm Series version for permanent outdoor installations also available


  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Museums displays (wall mounted artwork and display cases)
  • Theater and stage accent lighting
  • Mobile displays
  • Retail spaces
  • Architectural accent lighting
  • Machinery
 Product Name  SKU   Wavelength

 Color Temperature

 Precision Z Flood - Red  PR21   620nm - 630nm   /  /
 Precision Z Flood - Green  PR22   515nm - 535nm   /  /
 Precision Z Flood - Blue  PR23   455nm - 475nm   /  /
 Precision Z Flood - Amber  PR24   585nm - 595nm   /  /
 Precision Z Flood - Cool White  Pr25   /  6500k  70
 Precision Z Flood - Warm White   PR26   /  3000k

 80 typical, 90+ available by spec

Link to Datasheet

Link for Downloads

Max wattage::
Input voltage::
9-15VDC (12VDC nominal)
Current draw::
125mA @ 12VDC
Power supply::
For use with class 2 transformer or battery
Beam angle::
62 degrees
Field angle::
84 degrees
Ingress Protection::
Anodized aluminum
Edison S
UL and CE
Power connector::

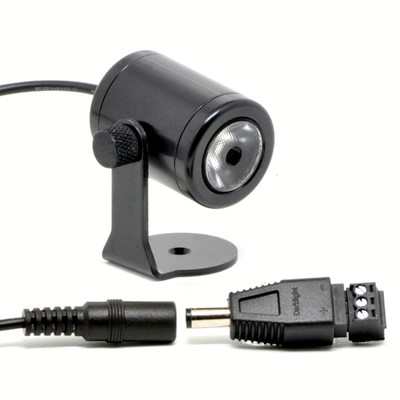

2.1mm DC jack with screw terminal adapter standard (Outdoor rated and specialty connectors available. Please inquire.)
All colors stocked, usually ships within 1 business day
