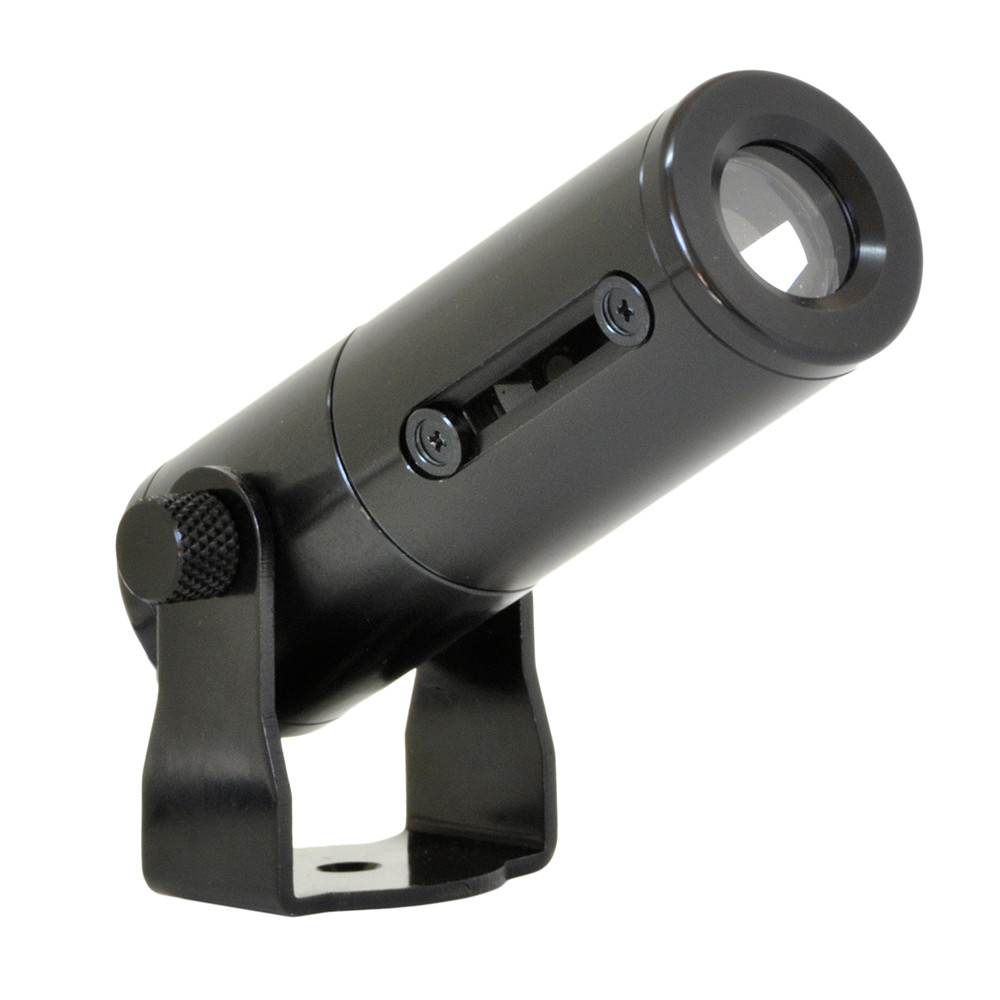

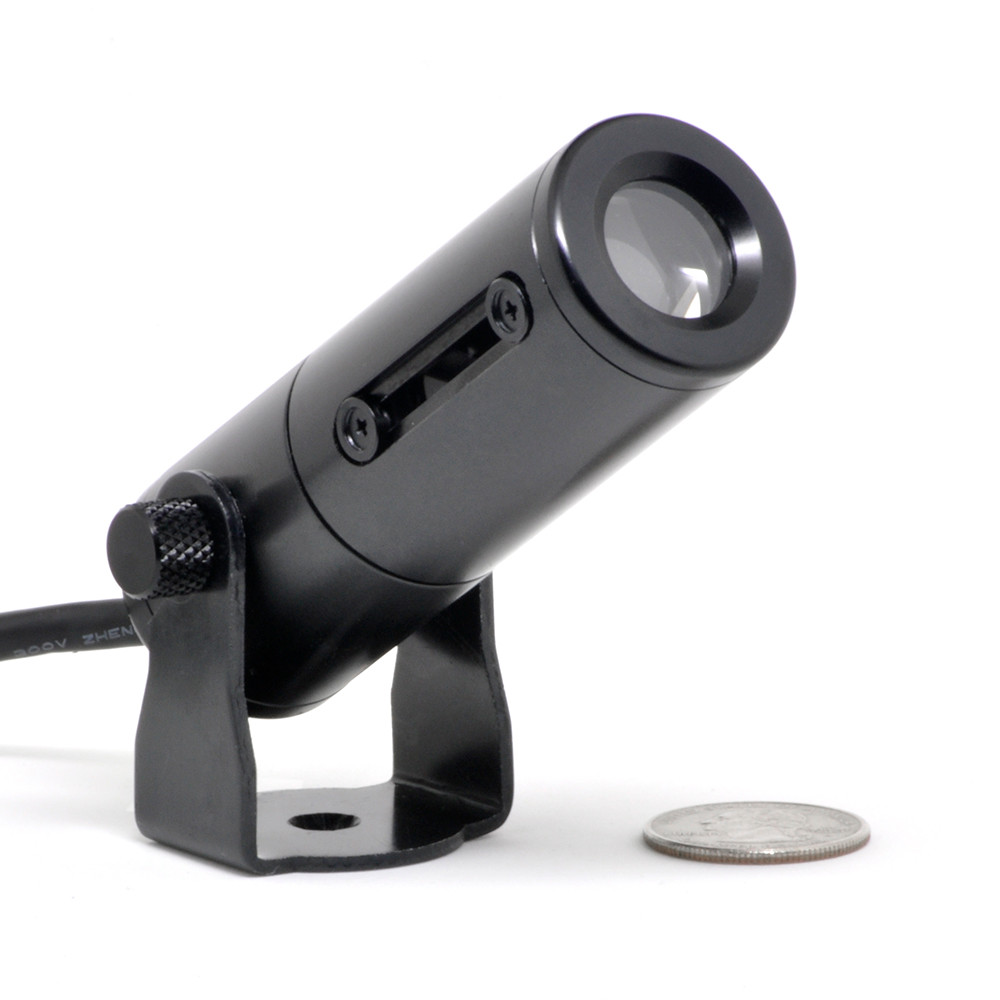

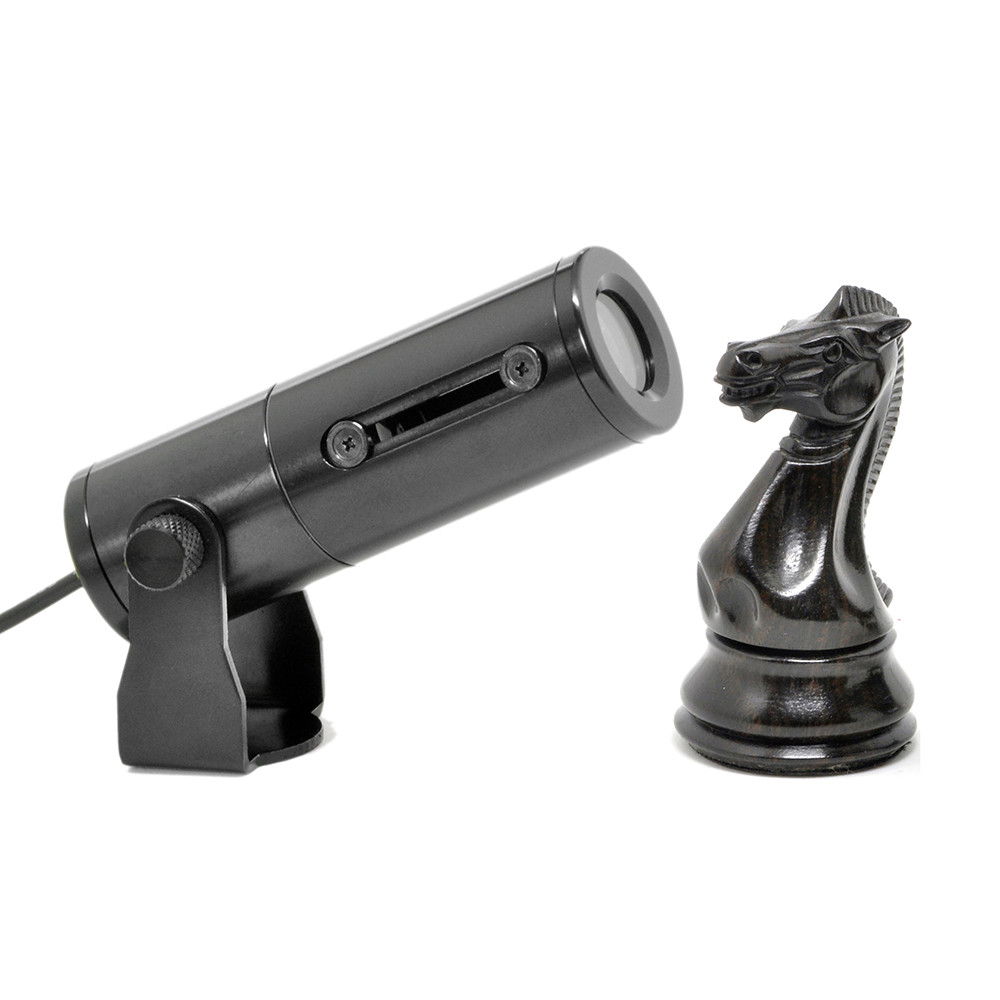

Gantom iQx

Write a Review
$280.25 - $309.50
SKU:
GT-GTIQX

The Gantom iQx features the same amazing optics of the Gantom iQ but adds integrated DMX control. Using LED technology and special optics, the Gantom iQx can render bright and sharp images from a variety of gobo materials including film, metal, and glass. This fixture opens up a vast new dimension of creative lighting possibilities by allowing images, patterns, and signage to be projected in ways that were impossible with traditional gobo projectors. The integrated 3 channel DMX
receiver gives the user full range of control over brightness and various dimming effects including candle flicker and strobe. The Gantom iQx is ideal for theatrical lighting applications. Our user friendly DMX Programmer app, available for Apple and Android devices, allows easy address DMX assignment and dimming control.

Features

  • Smallest DMX controlled gobo projector with zoom and focus on the market
  • 3 DMX channel control: intensity, speed, and mode
  • Zoom adjustable with front sliding lens: 25-40 degrees
  • Focus adjustable with rear sliding lens
  • Supports all standard gobo materials including metal, glass and film
  • 5 stage optics render razor sharp images and patterns
  • Low voltage and consumes less than 3W

Applications

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Restaurants
  • Special events
  • Tradeshow booths
  • Museums displays
  • Theater and stage accent lighting
  • Mobile displays
  • Retail spaces
Product Name SKU Color Temperature CRI Cable Options
Gantom iQx – Cool White GT41 6500K 70+ Power Connector: 2.1mm DC jack with screw terminal adaptor for Power Signal Connector: 3.5mm (1/8″) TRS jack with screw terminal  adaptor
Gantom iQx – Warm White GT42 3000K 80+ (90+ available by custom quotation) Power Connector: 2.1mm DC jack with screw terminal adaptor for Power Signal Connector: 3.5mm (1/8″) TRS jack with screw terminal  adaptor
Gantom iQx – Cool White – Pro Cable Connector GT241 6500K 70+ Power and data integrated into a single sealed locking connector
Gantom iQx – Warm White – Pro Cable Connector GT242 3000K 80+ (90+ available by custom quotation) Power and data integrated into a single sealed locking connector



Connector Options Standard Connectors 2.1mm DC jack with screw terminal adaptor for Power
3.5mm (1/8″) TRS jack with screw terminal  adaptor

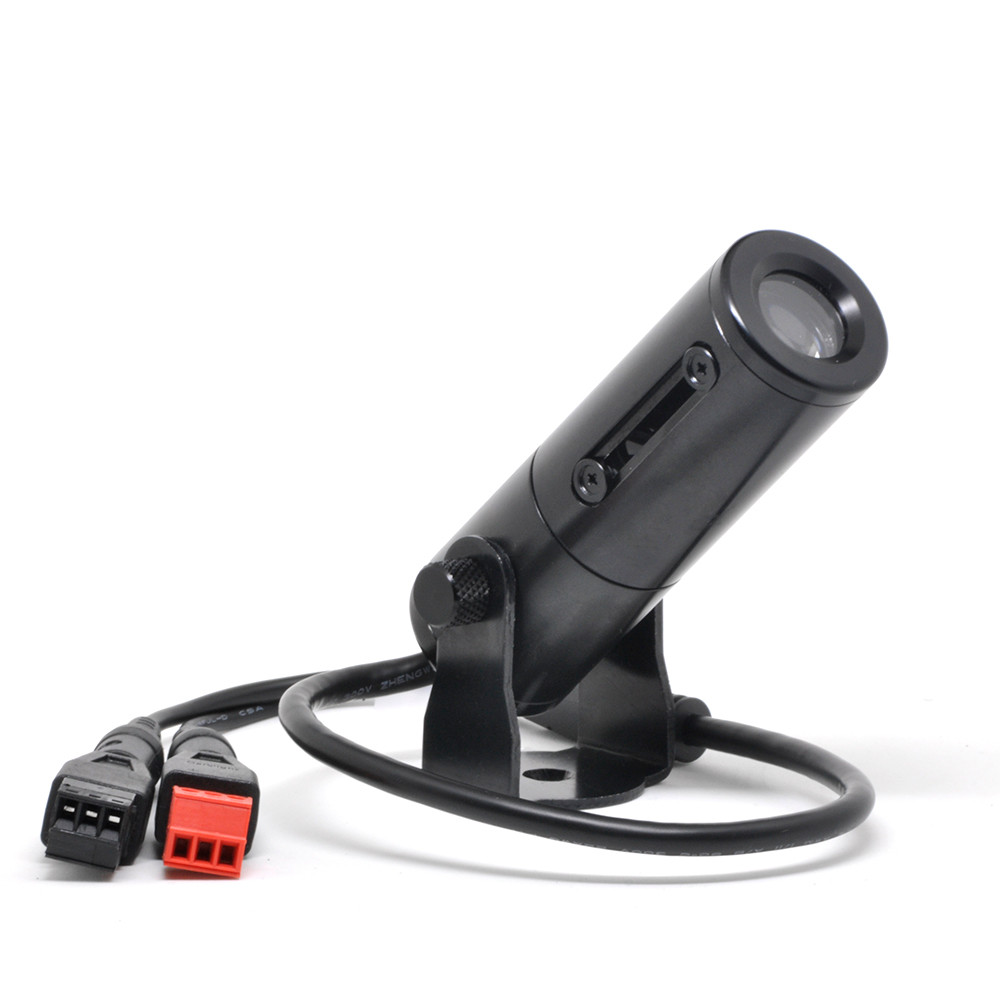

Gantom Pro Cable Connector Waterproof locking connector which combines both power and DMX signal in a single cable



Link to Datasheet

Link to User Guide

Link for Downloads

Gobo Size:
19mm(3/4″)
Max Wattage:
2.8W
Input Voltage:
9-15VDC (12VDC nominal)
Current Draw:
< 230mA @ 12VDC
Power Supply:
For use with class 2 transformer or battery
Beam Angle:
25-40 degrees
Ingress Protection (i):
IP40 without way cover accessory
Ingress Protection (ii):
IP65 when using the FA30 Way Cover accessory
Material:
Anodized aluminum
LED:
Cree XLamp XP-G
Certifications:
UL and CE
