Product Description

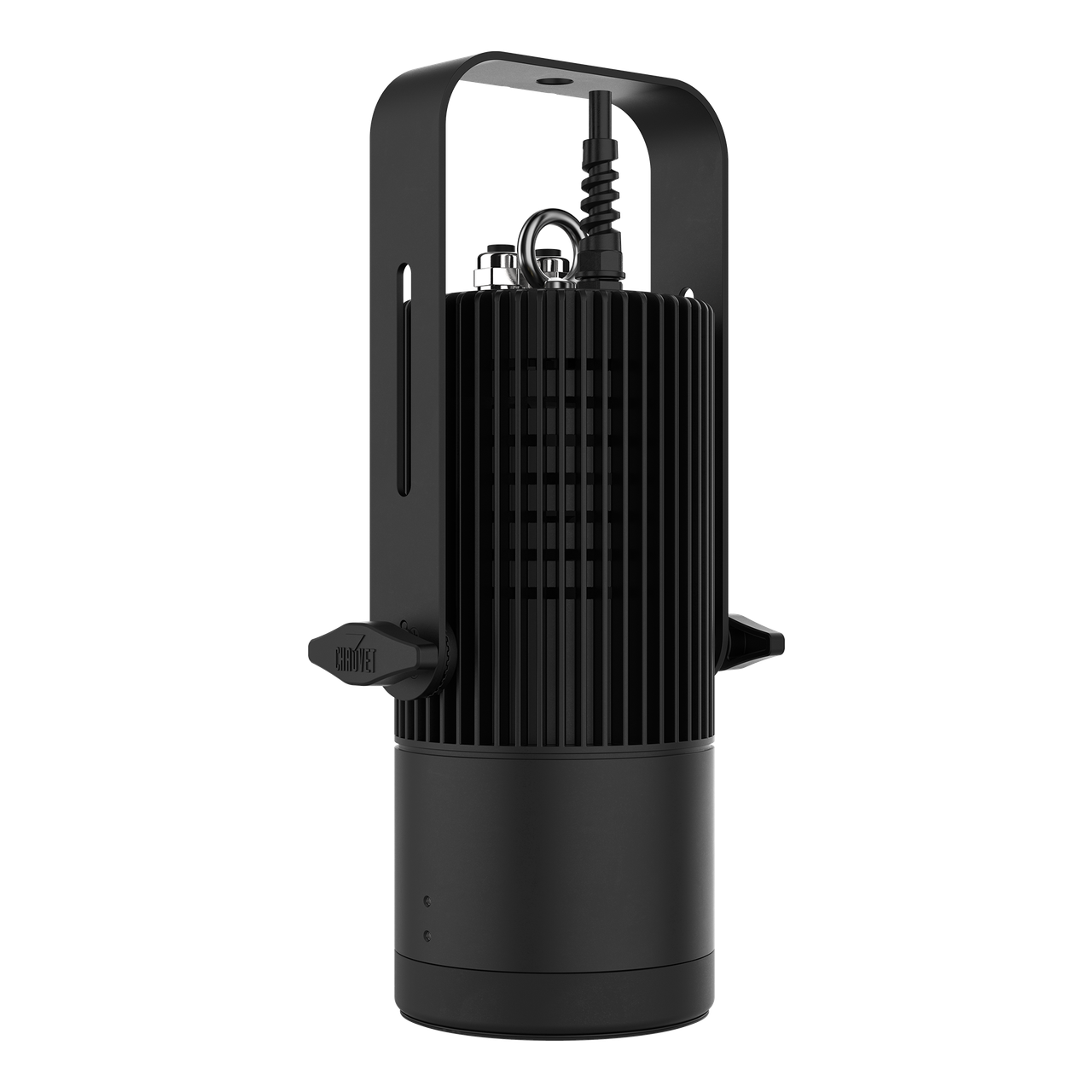

Ovation H-55FC is a small, silent, convection cooled LED houselight with a punchy, full color output and high CRI that makes it ideal for theaters, recital halls, worship venues, or any other application with a smaller trim height. The compact unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. The interchangeable lenses are a must-have feature in theatrical and house of worship applications. The compact houselight also includes multiple mounting options with removable fixture yoke, a recess mounting, and a sconce mounting kit.
SPECIFICATIONS
- Light Source: 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4 lime) 2.62 to 5.25 W, (840 mA), 4807 K, 50,000 hours life expectancy.
- Color Temperature (at full): 4807 K
- CRI: 82
- Lumens (w/80° filter): 2,698
- Lumens (w/65° lens): 2,928
- Lumens (w/45° lens): 2,691
- Lumens (w/25° lens): 2,849
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Color Temperature Presets: Yes/No
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Power Connection: Bare-wired
- Power Input: Hard-wired
- Data Connectors: 5-pin XLR, Phoenix connector
- Cable Length (power): 15 ft (4.5 m)
- Control Protocol: DMX, W-DMX, RDM
- DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV
- Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 62 W, 0.541 A @ 120 V, 60 Hz
- Power and Current: 64 W, 0.308 A @ 208 V, 60 Hz
- Power and Current: 64 W, 0.278 A @ 230 V, 50 Hz
