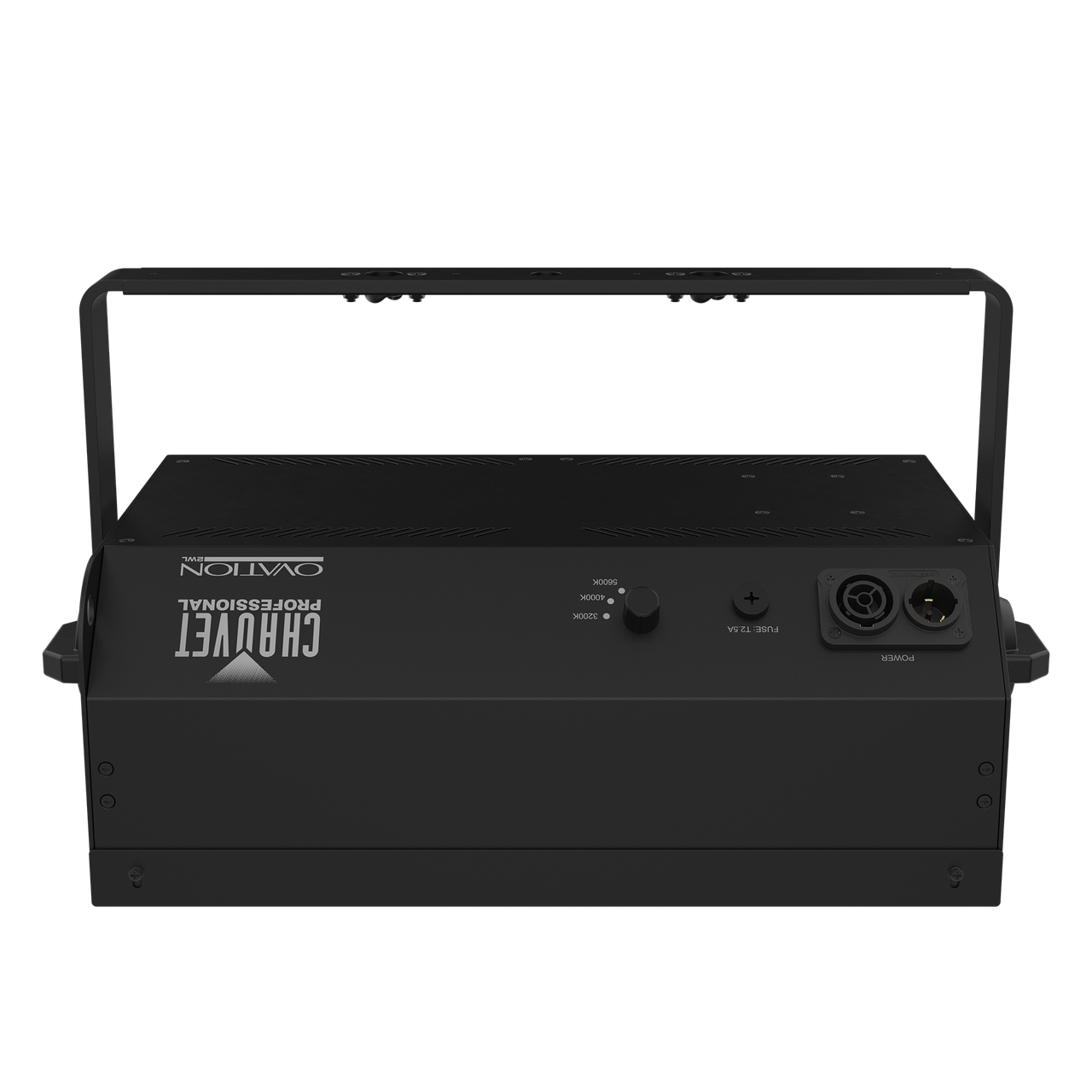

Product Description
The Ovation 2WL is a high-CRI utility flood light that operates on direct line voltage and dims with standard phase-cut or triac dimmers without needing any DMX control. It delivers soft, shadow-minimizing illumination ideal for houselights, lobbies, and broadcast applications where simple, high-quality lighting integration is essential.
SPECIFICATIONS
-
Light Source: 960 LEDs (CW, WW)
-
Color Temperature (3200k): 3217 K
-
Color Temperature (4000k): 3960 K
-
Color Temperature (5600k): 5584 K
-
CRI (3200K): 95.3
-
CRI (4000K): 95.2
-
CRI (5600K): 94.0
-
Beam Angle: 107.4°
-
Field Angle: 158.7°
-
Lumens (3200k): 10,564
-
Lumens (4000k): 10,954
-
Lumens (5600k): 11,328
-
Illuminance 3200k): 158 lux @ 5 m
-
Illuminance (4000k): 164 lux @ 5 m
-
Illuminance (5600k): 169 lux @ 5 m
-
Dimmer: External Dimmer (phase cut or triac compatible)
-
Color Temperature Selection: On-board Color Temperature Selection
-
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
-
Power Input: Seetronic Powerkon IP65
-
Power Output: Seetronic Powerkon IP65
-
Cable Length (power): 5 ft (1.5 m)
-
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking: 13 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
-
Power and Current: 103 W, 0.91 A @ 120 V, 60 Hz
-
Power and Current: 99 W, 0.55 A @ 208 V, 60 Hz
-
Power and Current: 98 W, 0.51 A @ 230 V, 50 Hz
-
Breaker Size: T2.5 A, 350 V
