Product Description

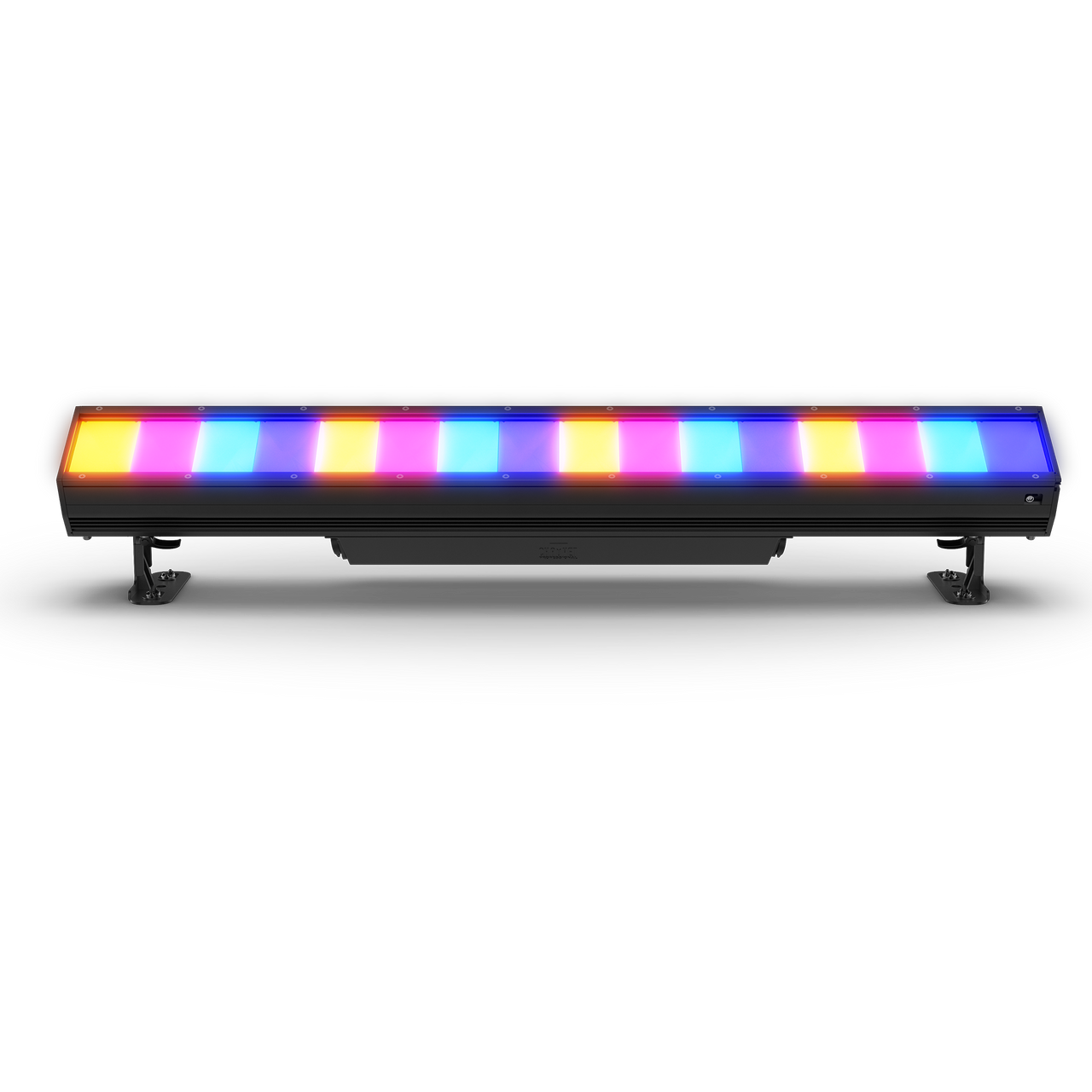

A versatile, IP65-rated RGBwWL LED batten featuring 16 homogenized cells that produces seamless pixel-mapped looks, a full spectrum of color, and high-quality whites. Ideal for touring, festivals, theatrical, and televised productions, this fixture provides silent, all-weather, and camera-ready performance for both temporary events and permanent installations.
SPECIFICATIONS
- Light Source: 16 (RGBWwL) LED Engines
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 8,810 K
- CRI: 95
- Beam Angle: 17.4°
- Beam Angle (w/CYC Diffusion): 37.9°
- Beam Angle (w/Half Diffusion): 18.5°
- Beam Angle (w/Stealth Diffusion): 24.8°
- Field Angle: 38.8°
- Field Angle (w/CYC Diffusion): 81.3°
- Field Angle (w/Half Diffusion): 45.7°
- Field Angle (w/Stealth Diffusion): 60.9°
- Lumens: 17,090
- Lumens (w/CYC Diffusion): 14,038
- Lumens (w/Half Diffusion): 14,998
- Lumens (w/Stealth Diffusion): 5,090
- Illuminance: 3,339 lux @ 5 m
- Illuminance (w/CYC Diffusion): 911 lux @ 5 m
- Iluminance (w/Half Diffusion): 2,380 lux @ 5 m
- Iluminance (w/Stealth Diffusion): 501 lux @ 5 m
- Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® compatible
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: USB
- Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
- Modes/Personalities: 52 personalities
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 3 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V, 7 units @ 240 V
- Power and Current: 375 W, 3.79 A @ 100 V, 60 Hz
- Power and Current: 370 W, 3.11 A @ 120 V, 60 Hz
- Power and Current: 363 W, 1.80 A @ 208 V, 60 Hz
- Power and Current: 363 W, 1.63 A @ 230 V, 50 Hz
- Power and Current: 364 W, 1.57 A @ 240 V, 60 Hz
