Product Description

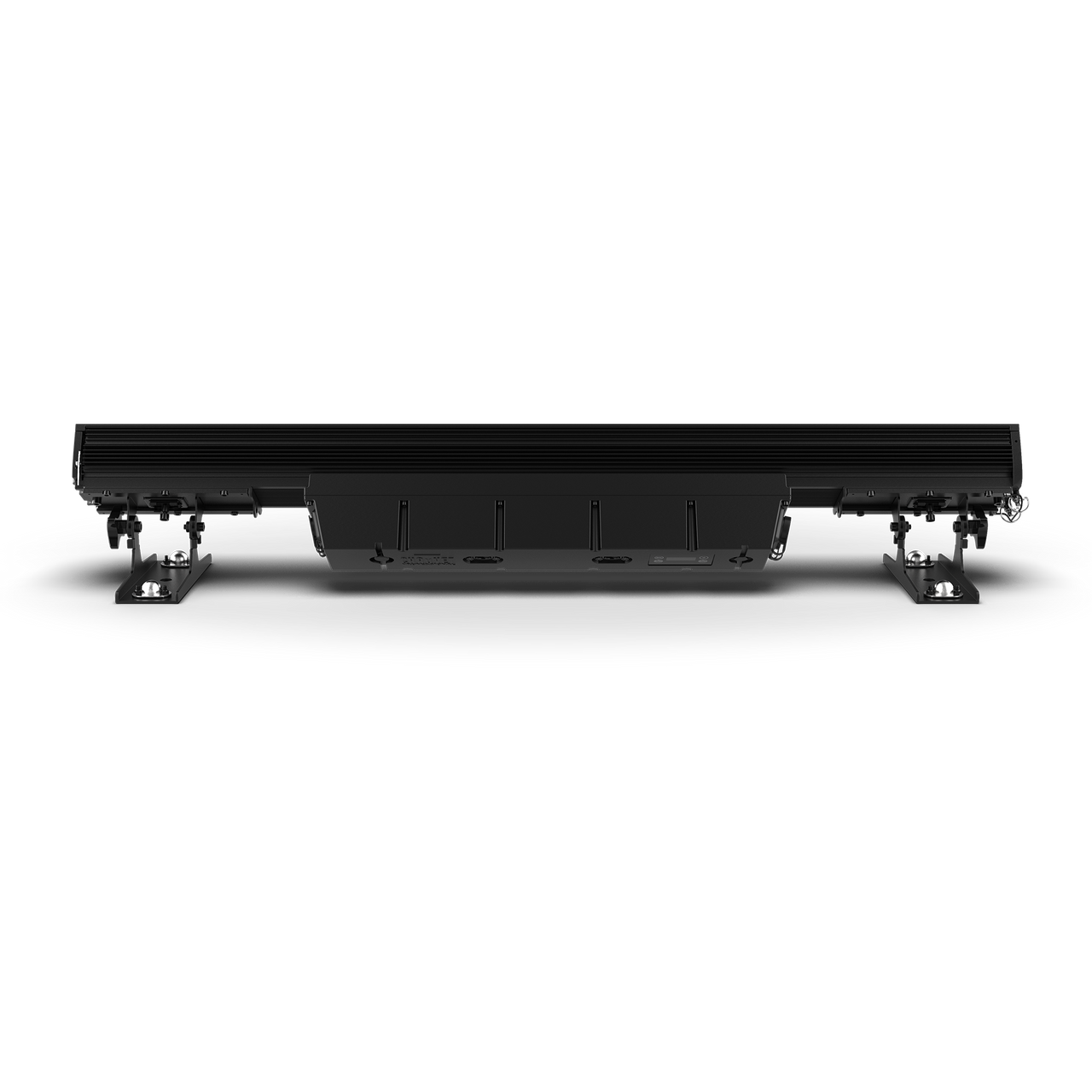

The COLORado Batten Q15 is a rugged, IP65-rated RGBW LED batten featuring 15 individually controllable LEDs for creating powerful pixel-mapping effects and smooth, even color washes. Perfect for touring productions, live events, and architectural installations, this versatile fixture excels at providing vibrant pixel effects and broad, even washes in both indoor and outdoor settings.
SPECIFICATIONS
- Light Source: 15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy.
- Color Temperature (range): 1800 to 8000 K
- Installed Optics: 16°
- Lumens: 6,324
- Lumens w/Filter: 5,547
- Illuminance (total): 2399 lux @ 5 m
- Illuminance w/Filter (total): 653 lux @ 5 m
- Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 25 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 5
- Built-in Automated Programs: Yes
- Customizable Programs: Yes
- Recall Custom Programs: Yes
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR
- Control Protocol: DMX, RDM
-
DMX Channels: 1 Cell: 4, 6, 8, 10
- 15 Cell: 45, 60, 64, 66, 76
- Modes/Personalities: 9 personalities
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 6 units @ 100 V; 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V; 16 units @ 240 V
- Power and Current: 194 W, 1.606 A @ 120 V, 60 Hz
- Power and Current: 197 W, 0.951 A @ 208 V, 60 Hz
- Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz
