Product Description

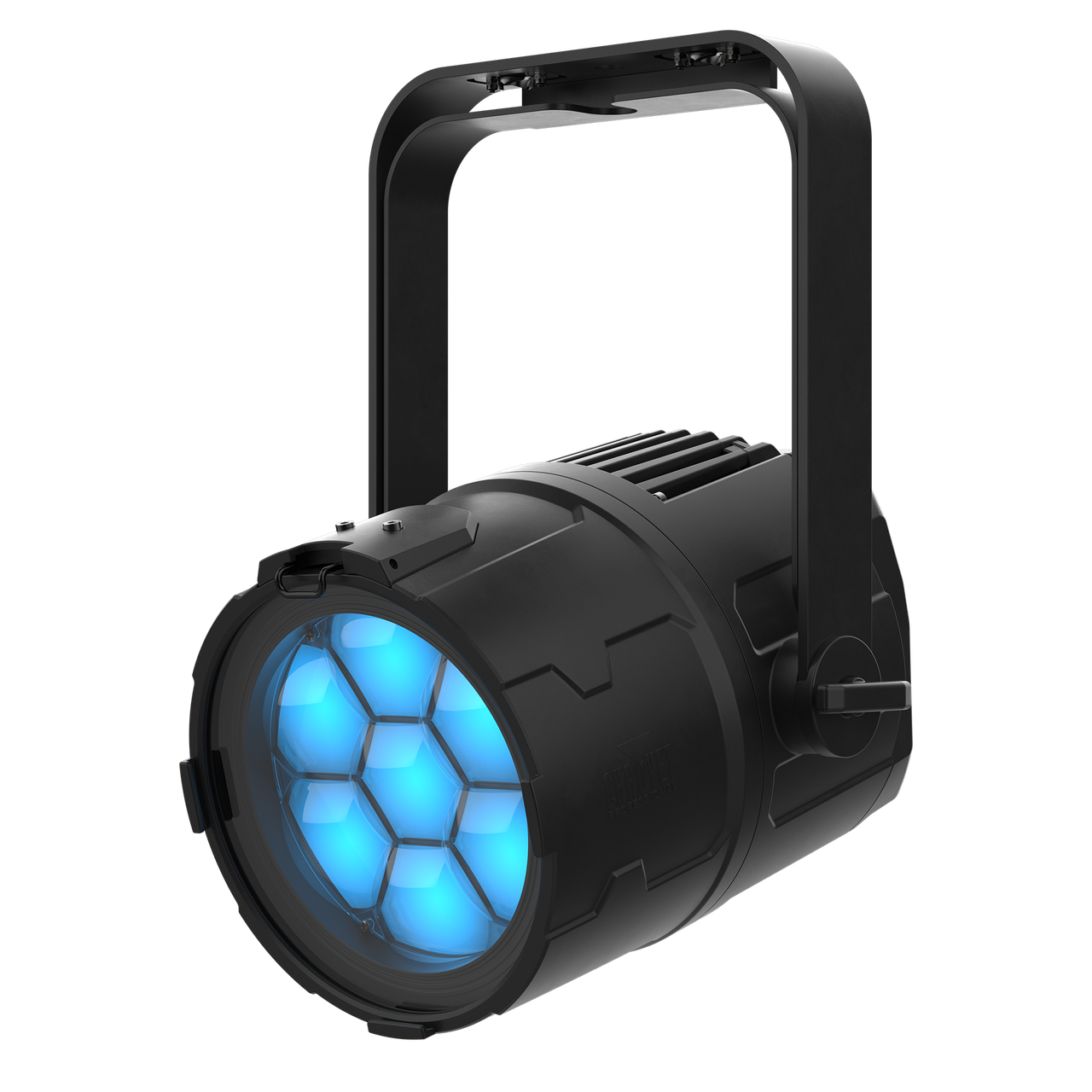

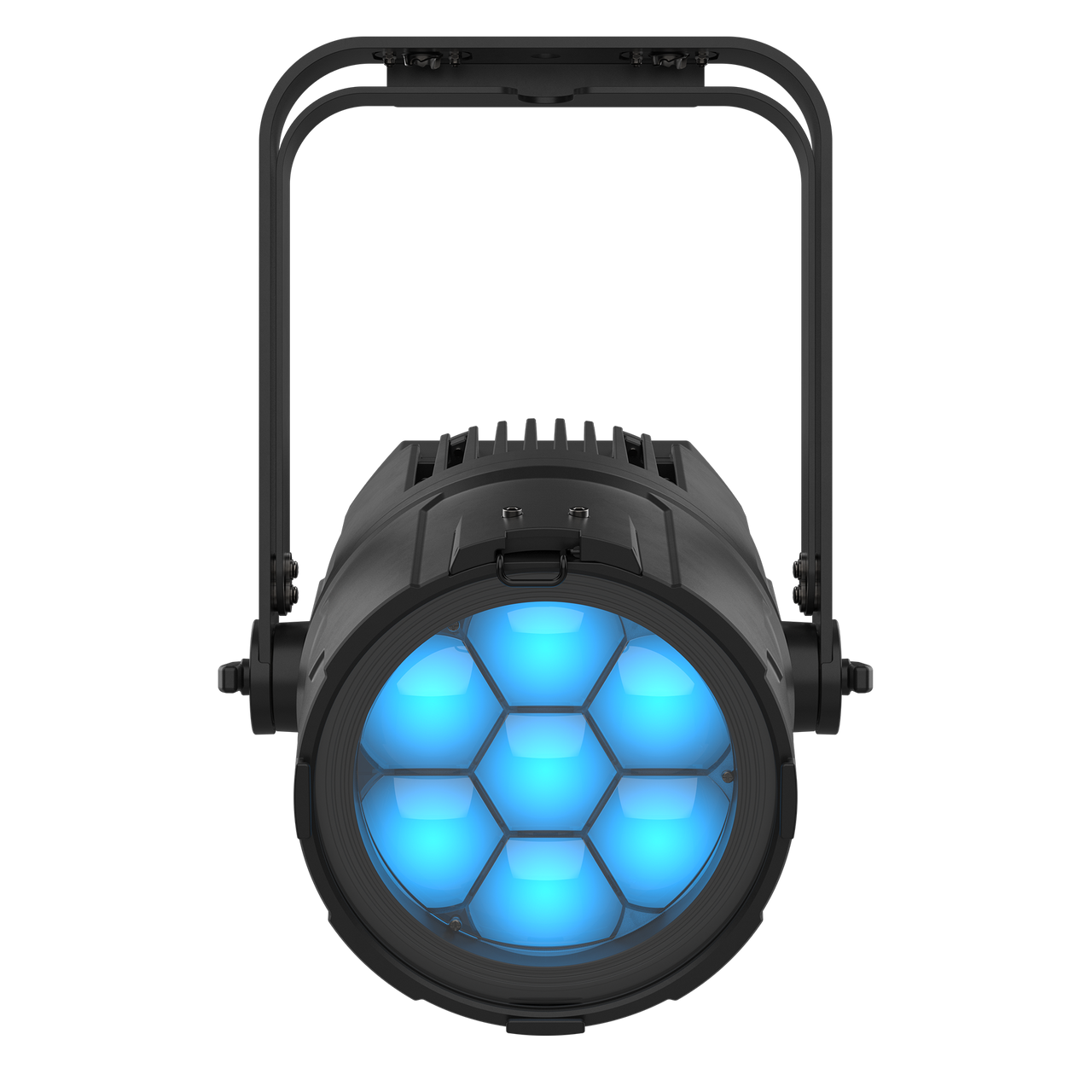

A rugged, IP65-rated RGBL LED fixture delivering high-output performance, superior color rendition with enhanced whites, and an upgraded zoom system in a tour-ready design. Perfect for touring productions, outdoor festivals, and any event requiring a durable, powerful, and color-accurate wash light that can withstand the elements.
SPECIFICATIONS
- Light Source: 7 LEDs (quad-color RGBL), 8.4 to 13 W, (2.7 A), 50,000 hours life.
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 5882 K
- CRI (3200K): 83
- Beam Angle: 3.9° to 38.5°
- Field Angle: 6° to 52.6°
- Cutoff Angle: 7.3° to 58.9°
- Zoom Range: 3.9° to 52.6°
- Lumens (3.2°): 3350
- Lumens (39.9°): 5974
- Illuminance (3.9°): 27,567 lux @ 5 m
- Illuminance (38.5°): 657 lux @ 5 m
- Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25,000Hz
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Control Protocol: DMX, RDM
- DMX Channels: 1CH, 5CH1, 5CH2, 7CH, 11CH, 12CH, 13CH, 16CH or HSV
- Modes/Personalities: 9 personalities (1CH, 5CH1, 5CH2, 7CH, 11CH, 12CH, 13CH, 16CH, HSV)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
