Product Description

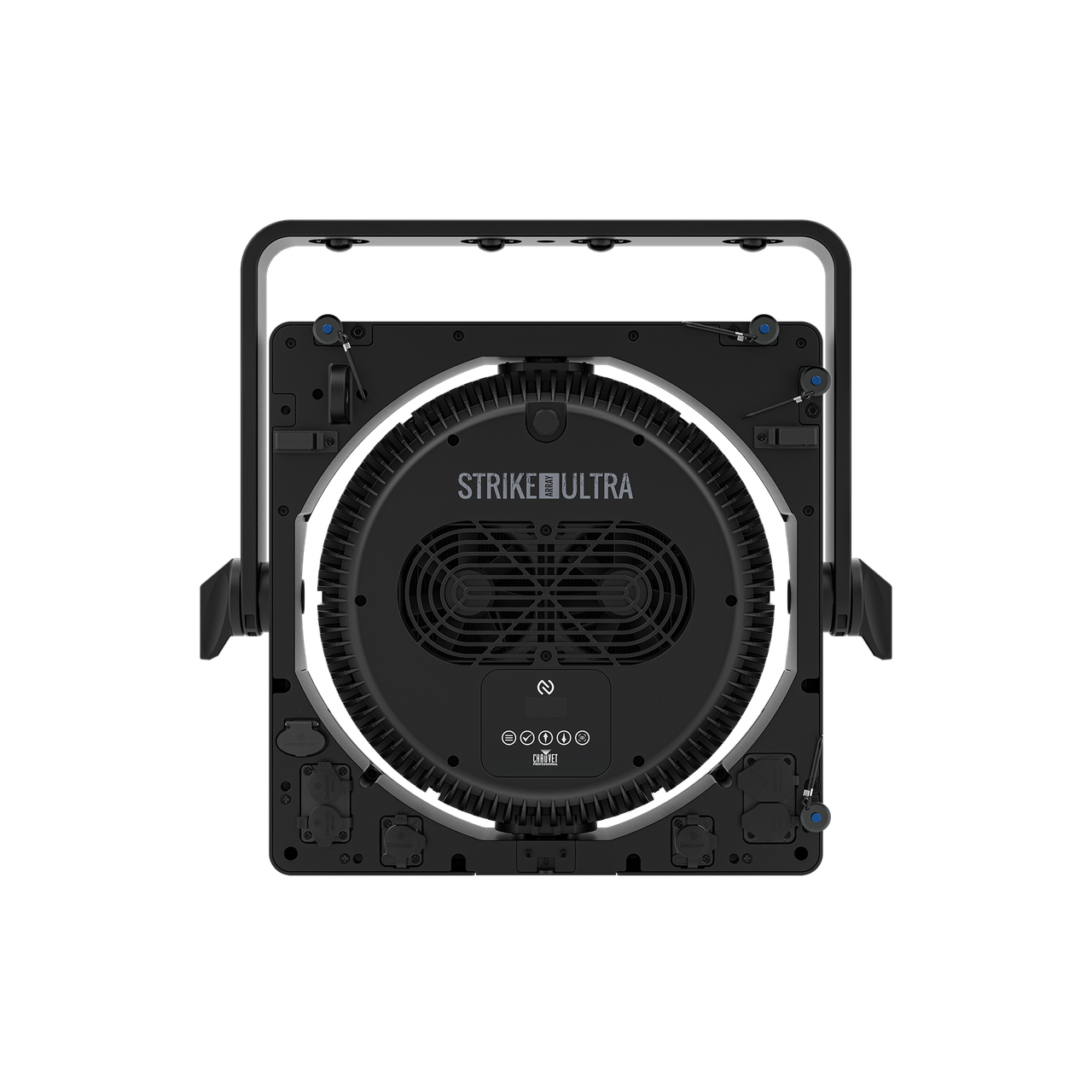

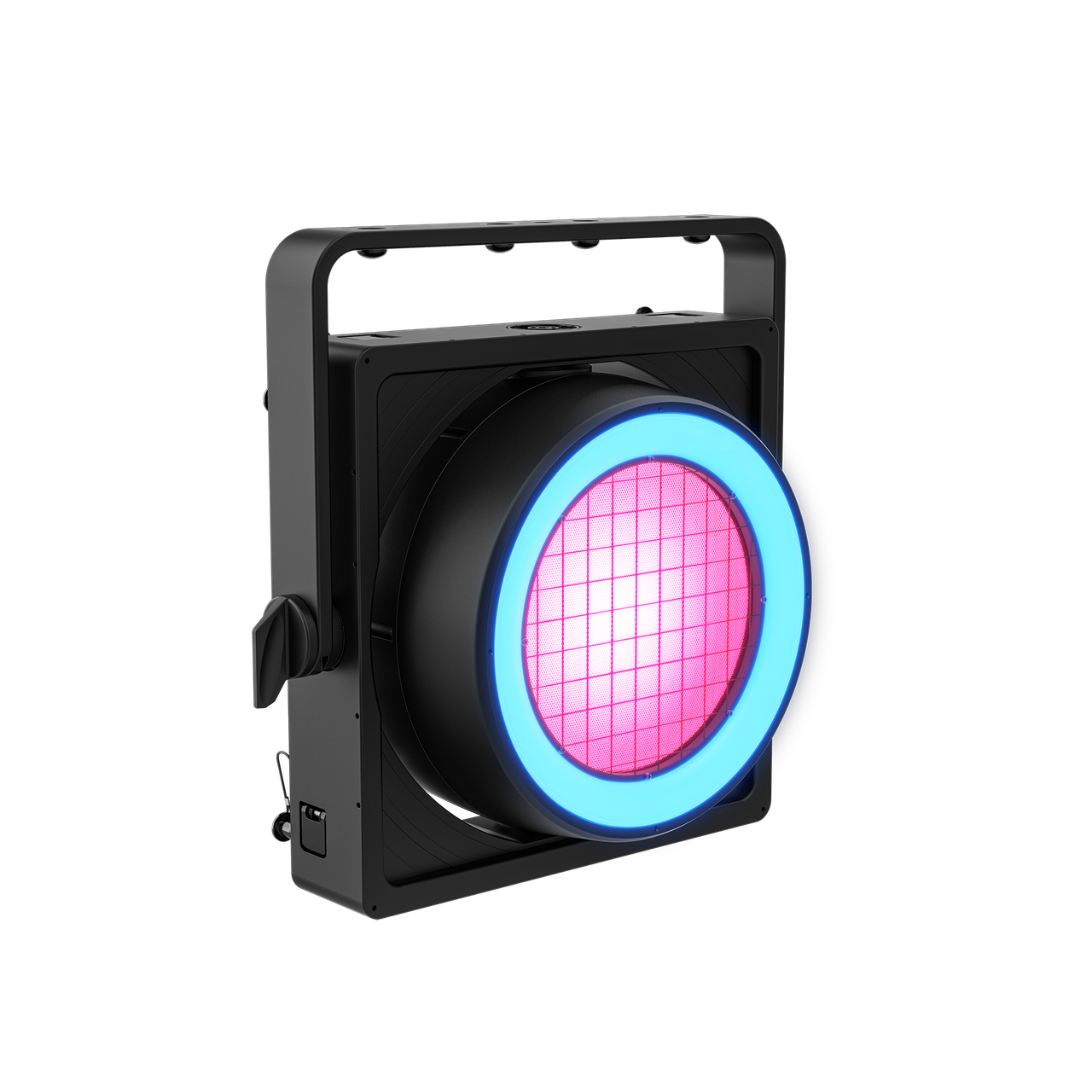

STRIKE Array Ultra is a next-generation IP65 audience blinder that pairs a powerful RGBA-WW engine with a distinctive RGB halo ring for bold, camera-ready looks. Its high-CRI calibrated whites and filter option deliver natural skin tones and rich color on camera, while a single motorized movement axis that functions as pan or tilt, along with broadcast-optimized dimming, transforms classic blinder punch into a flexible, dynamic effects platform. Built to integrate seamlessly with other STRIKE Array and STRIKE Bolt fixtures, it scales effortlessly from clubs to full festival and broadcast rigs.
SPECIFICATIONS
- CRI @ 3200K: 92.8
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
- Pan: +-25°
- Pan Ranges: 50°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
- Cable Length (power): 5 ft (1.5 m)
- Software Update: USB-C
- Control Protocol: Art-Net, sACN, DMX, RDM
- DMX Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
- Art-Net Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
- Modes/Personalities: 11 personalities (4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V;
- Power and Current: 1024 W, 8.54 A @ 120 V, 60 Hz
- Power and Current: 995 W, 4.81 A @ 208 V, 60 Hz
- Power and Current: 995 W, 4.34 A @ 230 V, 50 Hz
