Product Description

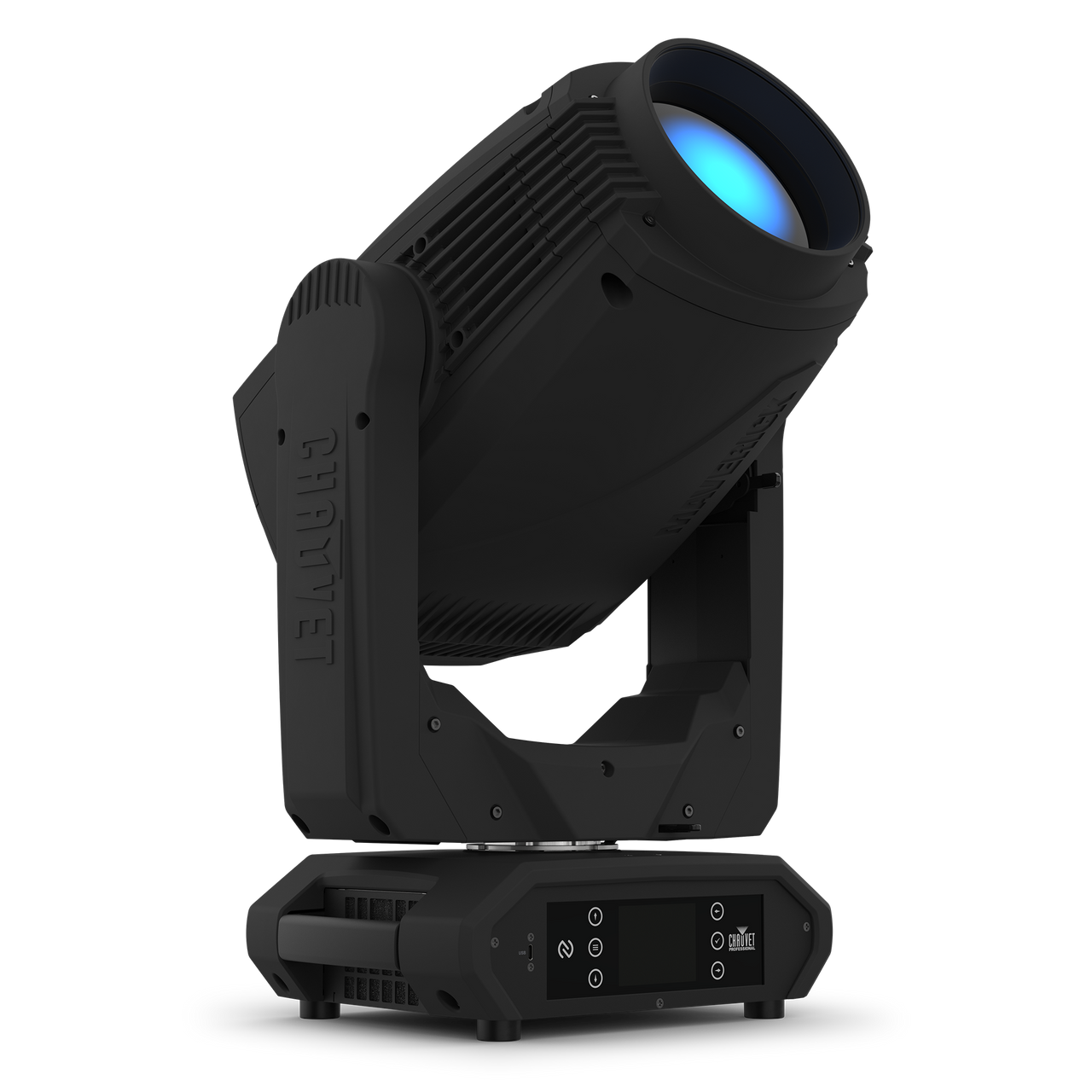

A compact and lightweight LED moving profile delivering a powerful 18,963 lumens of output, featuring an expansive 18:1 zoom, a four-blade framing system, CMY color mixing, and a complete effects package. Perfect for a wide range of short and long-throw applications in touring, theatre, and broadcast where a versatile, feature-rich fixture is essential.
SPECIFICATIONS
-
Light Source: 1 LEDs (CW) 520 W, (4.2A), 6966 K, 50,000 hours life expectancy
-
Color Temperature (at full): 6966 K
-
Front lens diameters: 145 mm
-
CRI: 72.2
-
CQS: 70.2
-
TLCI: 51
-
CRI with CRI filter: 91.9
-
CQS with CRI filter: 90
-
TLCI with CRI filter: 78
-
CTB filter color temperature: 8200K
-
Beam Angle: 3.4° to 52.2°
-
Field Angle: 3.7° to 55.3°
-
Cutoff Angle: 3.8° to 57.3°
-
Zoom Range: 3.5° to 57.3°
-
Lumens (output): 18,963
-
Illuminance (3.4°): 104,429 lux @ 5 m
-
Illuminance (57.3°): 1,219 lux @ 5 m
-
Selectable PWM: 600Hz, 1500Hz, 2000Hz 65000Hz
- Control Protocol: DMX, Art-Net, sACN, CRMX, NFC
- DMX Channels: 31 or 47
- Art-Net Channels: 31 or 4
- Modes/Personalities: 2 personalities (31, 47)
- Battery type: Lithium Ion (display screen backup)
- Rechargeable: Yes
- Battery Charge Time: 5 hours
- Battery Life: 1 hours
- Battery Power: 3.7V, 500 mAh
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 (Red, Orange, Magenta, CTO 4300k, CTO 3200K, CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
- Colors: CMY wheels
- Color Macros: CMY macros
- Gobos (1): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 9+ open (9 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 23.9 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
- Framing Shutters: Yes
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 25 Hz
- Move-in-Black: Yes
- Dim Curves: 5
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
- Cable Length (power): 5 ft (1.5 m)
