Product Description

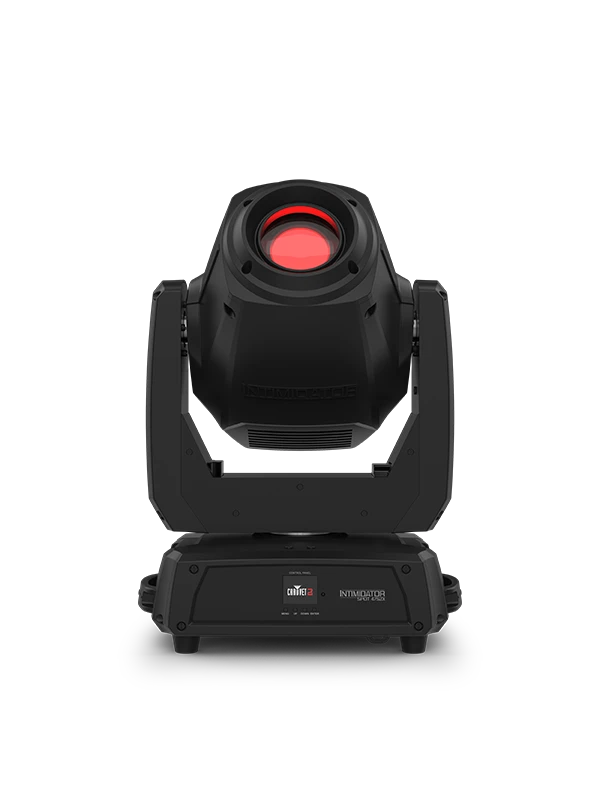

This punchy 250W LED powerhouse comes packed with features that make it ideal for installations and precise stage performances. Motorized zoom and focus ensure the looks you create with its dual gobo wheels and dual rotating prisms are always crisp and provide the coverage you need for both short and long throws. With both 3- and 5-pin DMX connectors, Intimidator Spot 475ZX is an easy, powerful addition to any rig.
SPECIFICATIONS
- DMX Channels:10 or 16
- DMX Connectors:3- & 5-pin XLR
- Pan and Tilt:540°/270°
- Pan and Tilt Ranges:540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors:7 + white, split colors, continuous scroll at variable speeds
- Gobos:7 + open (6 aluminum + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Light Source:1 LED (cool white) 250 W, (10 A), 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Lumens:10,710
- Power Linking:3 units @ 120 V; 7 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
378 W, 3.4 A @ 120 V, 60 Hz
372 W, 1.9 A @ 230 V, 50 Hz - Gobos: 8 + open, indexing, continuous scroll at variable speeds
- Gobo Size: 25.7 mm outside, 21 mm image, 1.3 mm max thickness
- Prism: 5-facet linear, bi-directional at variable speeds
- Prism: 6-facet round, bi-directional at variable speeds
- Zoom Angle (motorized): 13° to 28°
- Illuminance (13°) : 90,979 lux @ 2 m
- Illuminance (28°) : 24,565 lux @ 2 m
- Illuminance (13°) : 14,557 lux @ 5 m
- Illuminance (28°) : 3,930 lux @ 5 m
- Color Temperature (CTO): 5,700 K
