Product Description

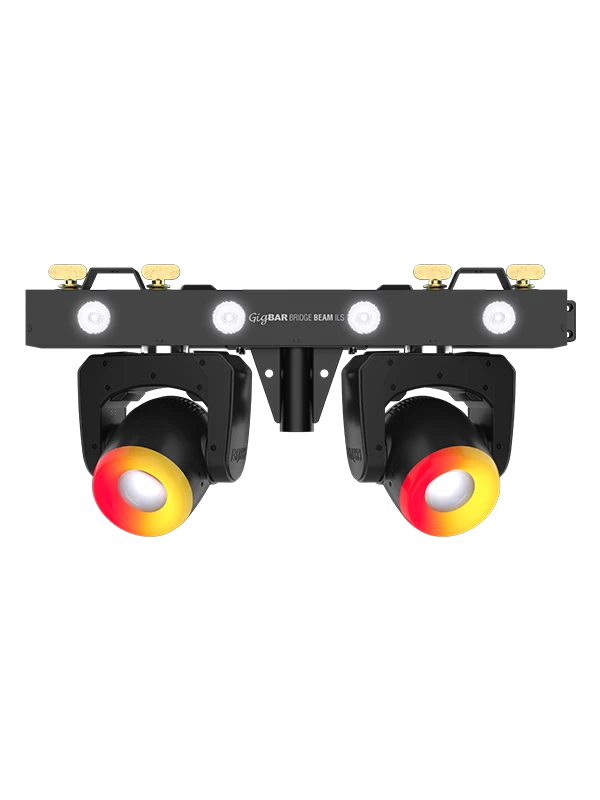

It’s all happening with GigBAR Bridge Beam ILS, the 3-in-1 pre-mounted lighting rig. Dual moving heads send punchy narrow beams across the dance floor, RGBAW+UV wash lights fill the room with every color from white to blacklight, and dynamic LED rings add dazzling eye candy to your setup. GigBAR Bridge Beam ILS is always ready when you are in its grab-and-go carry bag. Trigger built-in shows with the included RF remote, instantly create coordinated light shows with ILS, and enjoy wireless ILS or DMX control with built-in D-Fi. Captivate the party your way with GigBAR Bridge Beam ILS.
SPECIFICATIONS
- DMX Channels:3, 24 or 60
- DMX Connectors:3-pin XLR
- Pan and Tilt:540°/270°
- Pan and Tilt Ranges:180° 360° 540° Pan / 90° 180° 270° tilt
- Strobe Rate:0 to 20 Hz
- Operating Frequency:2.4 GHz
- Power Linking:9 units @120 V; 18 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 147 W, 1.2 A 120 V, 60 Hz
- 144 W, 0.6 A 230 V, 50 Hz
- Illuminance:
- Moving Head: 24,670 @ 2 m (per head)
- Wash: 525 Lux @ 2 m (per section)
- Light Source:
- Moving Heads: 2 LEDs (RGBW) 80 W total (2.8 A), 50,000 hours life expectancy
- Wash: 4 LEDs (RGBAW+UV) 40 W total (2.6 A), 50,000 hours life expectancy
- LED Ring: 48 LEDs (RGBW) 10 W total 50,000 hours life expectancy
- Beam Angle
- Moving Head: 5°
- Wash: 20°
- Field Angle (wash): 37°
- Max Unobstructed Distance (D-Fi): 600 ft (183 m)
