American DJ

American DJ 5PX Hex

Write a Review
MSRP: $299.95
$219.99
(You save $79.96 )
SKU:
ADJ-5PX-HEX
UPC:
818651025217
MPN:
5PX HEX

Features

The ADJ 5PX Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages.

5PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 8 units together via the fixtures built-in IEC In/Out power connectors.

The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.

  • Ultra bright, flat wash fixture with 5 x Red, Green, Blue, Amber, White & UV LED pixels
  • Smooth RGBAW + UV color mixing
  • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  • 4 DMX Modes: 6, 7, 8, & 12 channel
  • 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
  • 7 Built-In Programs
  • 63 built-in Color Macros
  • Flicker Free operation (No flickering on camera)
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
  • Beam angle: 30-degree

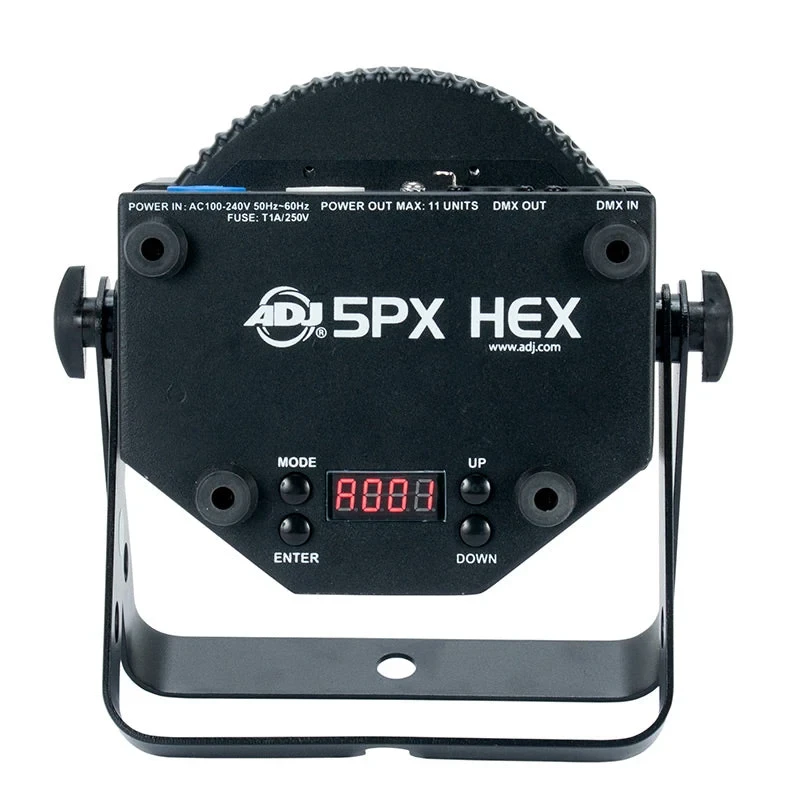

  • 4-button, DMX digital display on rear panel
  • Compatible with Dotz Par RF wireless remote control (sold separately)
  • Dual yoke allows fixture to be hung or set on the ground
  • Data linkable via 3/5-pin XLR cables
  • Power linkable via Power Con (8x 5PX Hex’s Max @ 100V, 21x 5PX Hex’s Max @ 240V.)
  • Light Source: 5 x 10-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
Fixture Type:
Wash
Optical

Light Source:
5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
LED Life Rated:
Approximately 50,000 hrs
Beam Angle:
25°
Control

Built-In Programs:
7
Built-in Color Macros:
63
4 DMX Modes:
6, 7, 8, & 12 channel
5 Operational modes:
Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
Dim Curves:
5 Selectable
Electronic Dimming:
0 - 100%
Connections

Data Input/Output:
3-pin or 5-pin DMX
Electrical

Multi-voltage Operation:
AC 100-240V, 50/60Hz
Dimensions & Weight

Dimensions:
4.5” x 8.25” x 8.75”
Weight:
5.8 lbs

Warranty Information

Hide Reviews Show Reviews
2 year limited warranty
