Product Description

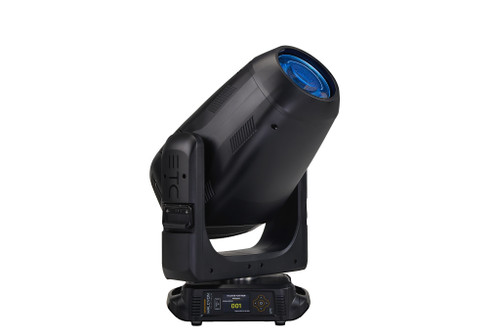

ETC, the market leader in automated luminaire innovation, brings you the next generation hallmark of white light framing fixtures. High End Systems Halcyon Gold, the smallest product in the Halcyon Framing family of fixtures, is a compact luminaire with over 19,000 lumens of output in a 62lb frame. Easily outperforming fixtures of the past in size and weight, Halcyon Gold has an extreme feature set with everything a user needs to light shows of all shapes and sizes.
Product Features
- Bright white LED engine
- 430 W High Fidelity engine
- Fixture output exceeding 19,000 lumens
- High quality 13-lens optic system
- Extremely versatile 6°–57° field angle zoom
- Optimized CMY and CTO color mixing for even hue control
- Seven position plus open color wheel
- Full-curtain framing system for total control of beam shaping
- 16-blade iris for extremely tight beam effects
- Beautifully linear Trifusion frost system
- Seven position plus open Rotating Gobo Wheel
- Eight position plus open Fixed Gobo Wheel
- Dual prisms for compound beam and projection effects
- Rotating Animation Wheel with linear positioning and angular control
Warranty
Five (5) years for light engine Two (2) years for complete fixtureProduct Videos
Custom Field
varSpecTab 1
Fixture Type Profile
varSectionName Source
Engine High Fidelity
LED Details 430W
Max Integrating Sphere Lumens 19,000
LPW 44
Life Expectancy 50,000 hours
Native CCT 6000K
varSectionName Color
Color Mixing Cyan, Magenta, Yellow, CTO
Color Temperature Variable down to 3000K
Color Wheel Seven (7) dichroic plus open
varSectionName Optical
Beam Angle Range 6° - 57°
Gate Size 22mm
Aperture Size 124mm
Pattern Projection - Rotating and indexable wheel with seven (7) interchangeable patterns plus open
- Fixed wheel with eight (8) interchangeable patterns plus open
- Fixed wheel with eight (8) interchangeable patterns plus open
Animation - Bi-directional rotating animation wheel with linear insertion, and variable angle
- LED Animation
- LED Animation
Prism Five-facet star and four-facet linear rotating prism with simultaneous insertion
Diffusion Light, Medium, and Heavy frost seamlessly controlled with Trifusion control.
Iris 16-blade iris
Framing Four-plane, full-curtain framing system with 180° module rotation
Flicker Control/Hz Range 2.4 kHz and 16 kHz
varSectionName Control
Input Method DMX (5-pin) or Ethernet
Protocols - DMX via RS-485
- Art-Net or sACN via Ethernet
- Art-Net or sACN via Ethernet
Ethernet Pass-Thru Passive Ethernet in and thru with and without power
Data Conversion Patented data conversion system for Ethernet to DMX
Modes (Footprint) Standard (57 channels)
RDM Functions Yes
UI Type Full-color graphical UI with touch screen and 5-button navigational control
Local Control Yes
Dimming Performance 16-bit, DMX controlled
varSectionName Electrical
Voltage Range 100–240V 50–60 Hz
Input Method powerCON TRUE1 TOP
Wattage (Standard) 684W
Current (Max) 6.9 A @ 100 V
Inrush (First Half Cycle) 120 V: 47 A
230 V: 87 A
230 V: 87 A
Fixtures per Circuit 2 fixtures (15 A power thru connector)
3 fixtures (R20 module or similar)
Note: TRUE1 TOP connector rated for 20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
3 fixtures (R20 module or similar)
Note: TRUE1 TOP connector rated for 20 A (120 V / 60 Hz) and
16 A (240 V / 50 Hz)
varSectionName Thermal
Ambient Operating Temp 14°–104°F (-10°–40°C)
Fan Mode Standard, Studio, and Linear Continuous control channel
varSectionName Physical
Pan and Tilt Range 542° pan, 259° tilt
Max Pan/Tilt Speed 360° in 2.52 s / 180° in 1.65 s
Materials Steel and aluminum frame with molded plastic covers
Color Options Black, white by special request
Mounting Options Any orientation
IP Rating IP20
Weight 62lb (28.1kg)
Included Accessories - powerCON TRUE1 TOP to bare end fixture tail
- Two (2) clamp brackets
- Safety cable
- Two (2) clamp brackets
- Safety cable
Safety Minimum distance to illuminated surface = 3.0 m (9.8 ft)
Minimum distance from fixture head to combustible materials = 0.1 m (4.0 in)
Minimum distance from fixture head to combustible materials = 0.1 m (4.0 in)
varSectionName Regulatory & Compliance
Approved regulatory standards cETLus Listed
Listed to UL 1573
Certified to CSA STD. C22.2 No: 166
CE Compliant
UKCA Compliant
Listed to UL 1573
Certified to CSA STD. C22.2 No: 166
CE Compliant
UKCA Compliant
Complies to the ROHS directive Yes
