Product Description

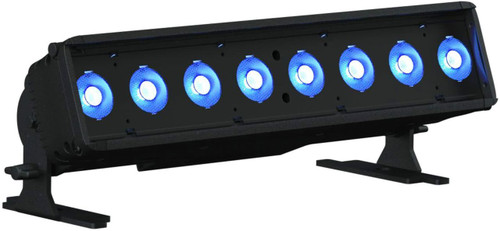

ColorSource Linear Series
The ColorSource Linear is contained in a batten / strip light form factor and uses the same proportionate recipes of red, green, indigo (instead of blue), and lime LEDs as the ColorSource PAR Deep Blue. This creates a color range and richness only possible from ETC LED luminaires. The Linear fixture was specifically designed to allow multiple fixtures to be mounted end to end with no visible break in light. The ColorSource Linear lives up to ETC's high standards for quality and durability. Available in half meter, 1 meter, and 2 meter lengths.
Features
- 1 cell = 1/2 meter length (available in 1, 2, and 4 cell arrangements)
- ColorSource RGB-L Deep Blue array (Red, Green, Indigo and Lime)
- Simple RGB control adds lime automatically when needed
- L70 lifetime of 20,000 hours
- Simple user interface with seven-segment display
- Optically calibrated and LED droop compensation
- DMX 5 Pin In and Out or RJ45 DMX512 In and Out* (not EtherCon)
- PowerCon In and Out
- Tour-ready, aluminum housing
Notes!
- Do not plug into dimmers, use constant power or relays.
- *RJ45 connectors are for DMX512 control only, this fixture will not work on lighting networks (sACN/Net3/etc.). They simply allow you to use cheaper Cat5e cable instead of 5-pin DMX.
Product Videos
Videos Hide Videos Show Videos
Custom Field

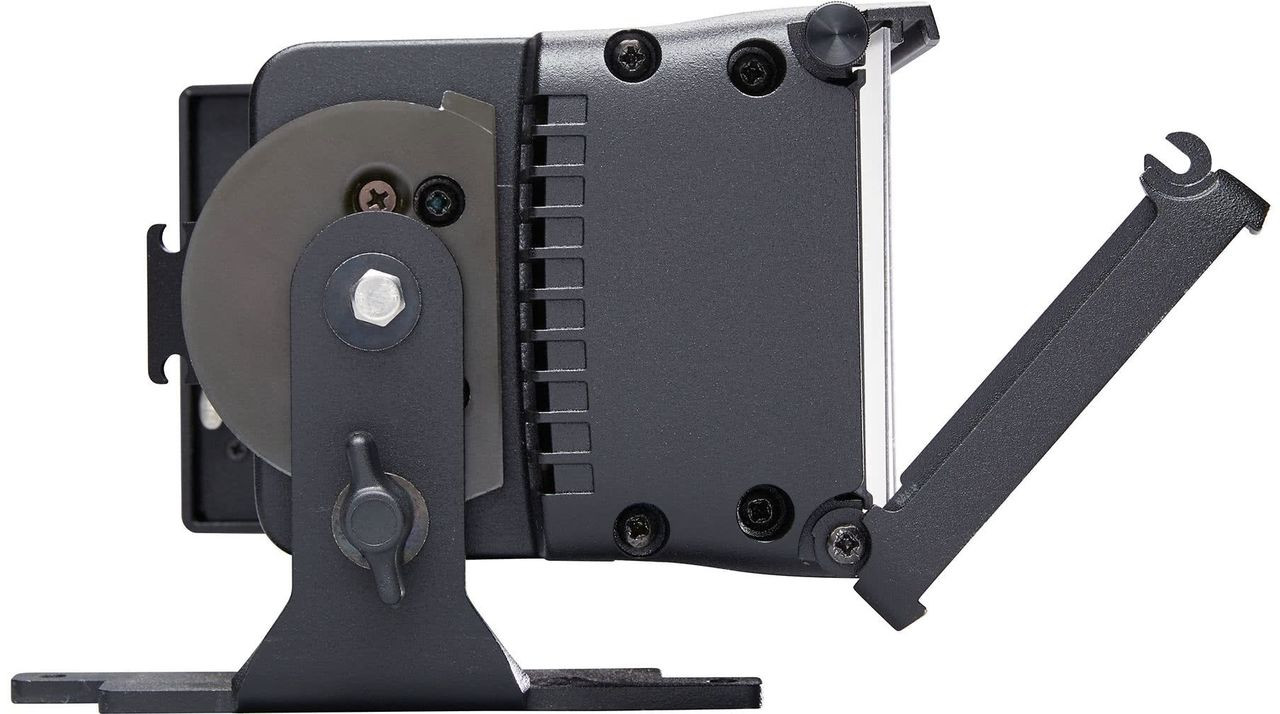

Includes Trunnions, PowerCon Input Cable with Connector of your Choice
Emitter ColorSource (Deep Blue)
Fixture Type Strip
