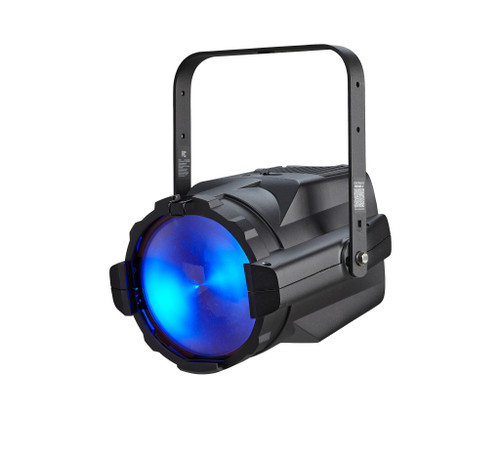

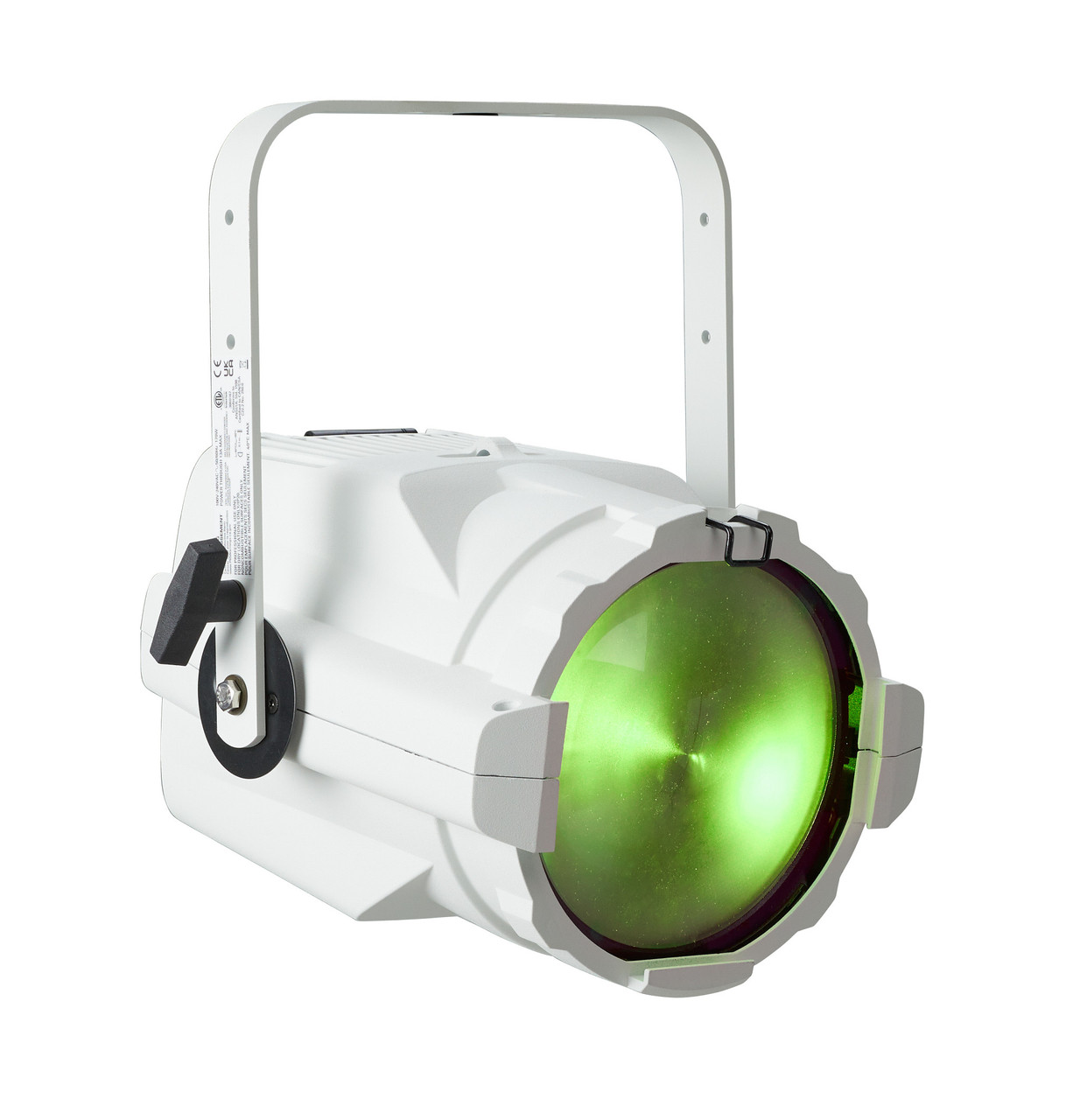

An LED luminaire crafted by lighting experts with a proven history of quality fixtures, ColorSource Fresnel V MAX doubles the output of the existing ColorSource Fresnel V but still brings a richness of color and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Fresnel V MAX provides soft pastels and bold saturated colors from a single fixture. Control the motorized 13°–44° zoom using DMX or manually from the rear of the fixture. ColorSource Fresnel V MAX also features wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, making it the ultimate in affordable wash light technology.
Product Description
Features:
- Five-color array (red, green, blue, indigo, and lime)
- Motorized 13-44° degree zoom with DMX and local control
- Simple user interface with seven-segment display
- powerCON® TRUE1® TOP connector
- DMX/RDM in and thru (5-pin XLR)
- Multiverse wireless DMX/RDM
- NFC (near field communication) configuration
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
What is V?
-
Color
-
Connector
-
Wireless
-
Brightness
-
Configuration
Color
The five-color array includes red, green, blue, indigo, and lime. Get bold saturated colors like indigos and reds, and soft pastels for beautiful skin tone rendering - all from a single array.
Connector
powerCON True1 TOP connector for secure connection that can be detached while under load.
Wireless
Go completely wireless with Multiverse® and gain up to 10 universes of wireless DMX/RDM control. Scale your wireless systems like you never thought possible!
Brightness
Next level brightness without sacrificing high-quality color.
Mobile Config
NFC configuration from your mobile device when used with ETC’s free Set Light app. Set the fixture properties, even if the fixture isn’t powered on. This means fixture hang and configuration just got more efficient!
Warranty
5 Year Warranty on Fixture 10 Year Warranty on LED ArrayProduct Videos
Videos Hide Videos Show Videos
Custom Field
varSpecTab 1
Fixture Type Fresnel
Emitter RGBIL
L70 Rating 54,000 hrs
Beam Angle Range 13-34°
Gate Size N/A
Aperture Size 190mm (7.48in)
Gobo Pattern Size N/A
Camera Flicker Control/Hz range 5,000 Hz (default) and 25,000 Hz (via RDM)
Control Connectors 5-Pin XLR, Multiverse wireless, and NFC
Control Protocols DMX-512, RDM, City Theatrical Multiverse, NFC
ETC FixtureLink Yes
Wireless Band 2.400-2.480 GHz
Wireless Range 100m indoors, 500m line of sight (subject to conditions)
Max Receivers DMX: No Limit
RDM: Varies by transmitter used
Multiverse SHoW Baby: 585
Multiverse Transmitter: 5,000
RDM: Varies by transmitter used
Multiverse SHoW Baby: 585
Multiverse Transmitter: 5,000
Broadcast Power 100 mW
Power Input powerCon TRUE1 TOP in / thru
Inrush (first half-cycle) 120v: 36A 240v: 57A
Fixtures per circuit 3 (link up to 4 via Power Thru connector)* Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
Ambient Operating Temp 32°-104°F (0°-40°C)
Fan (controllable) Yes
Droop Compensation Yes
Fan dB range TBD
BTUs/hour 709
IP Rating IP20
Included Accessories Yoke, power cable
