Product Description
COLORado 1-Quad Zoom

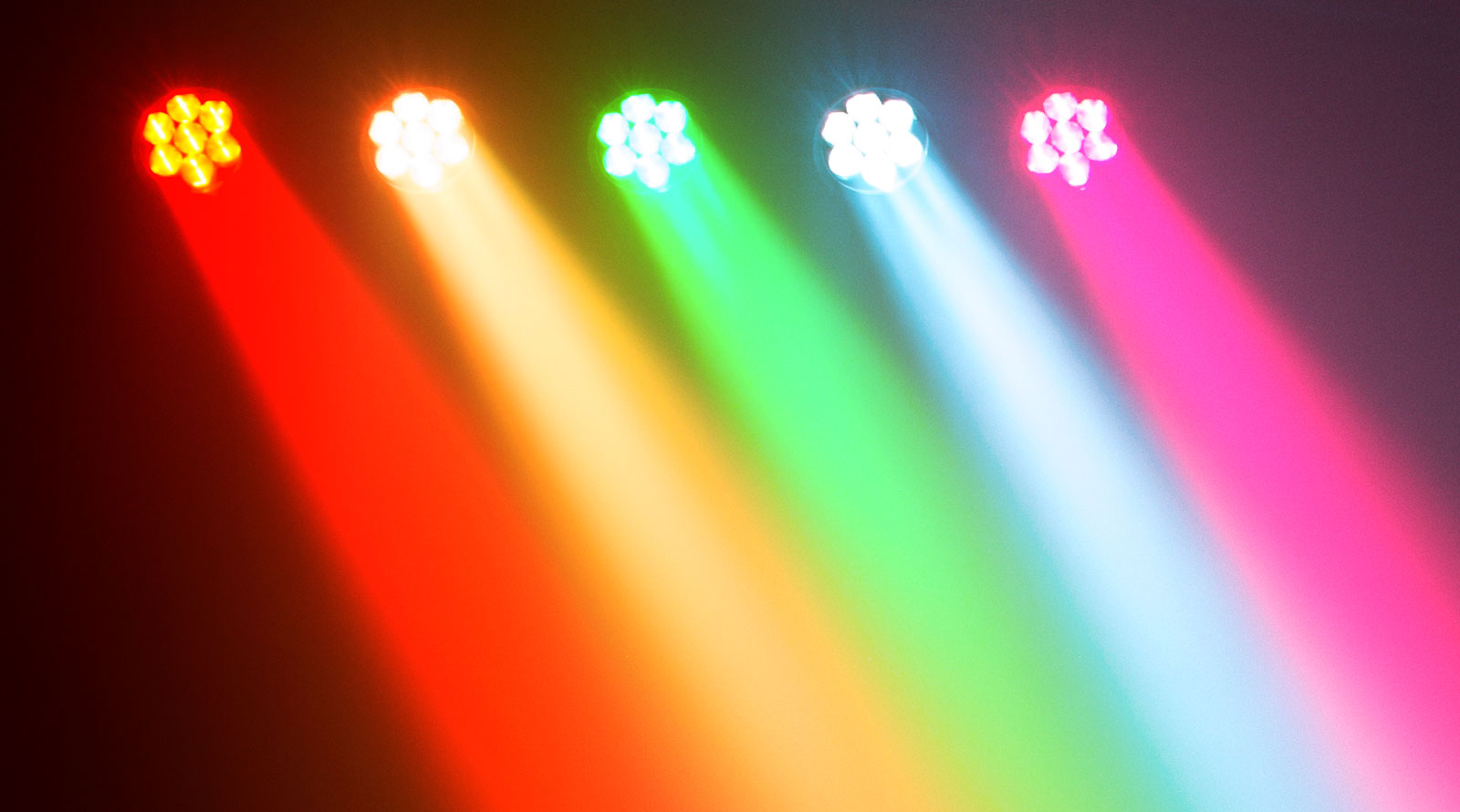

COLORado 1-Quad Zoom is an excellent indoor/outdoor wash light with seven Osram RGBW LEDs delivering big time power from a compact, yet solid housing. It maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. A 13° to 45° zoom gives you ample control over the beam, and selectable dimming curves facilitate the integration of the fixtures into an existing rig. Center pixel control provides even more dynamic effects with full 16-bit dimming. Outdoor rated power and data connectors allow for easy connections without proprietary cabling.
See the Specifications here.
AT A GLANCE
-
Built-in auto and custom programs recalled via DMX and Master/Slave
-
RGBW color mixing via DMX or manually
-
Zoomable, with a wide zoom range for design versatility
-
Tough road-ready construction
-
Individual control of outer pixel ring and center pixel
-
Selectable, smooth dimming curves for programming versatility
-
16-bit dimming of individual colors as well as master dimmer
-
All environment operation with IP rated power and DMX connections
-
5-pin DMX input/output connections
Product Videos
Custom Field
Illuminance (45°): 296 lux @ 5 m
Field Angle: 13° to 45°
Zoom Angle: 13° to 45°
Motorized Zoom
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Control Protocol: DMX
DMX Channels: 3, 4, 5, 6, 7, 10, 12, 17 or 25
Modes/Personalities: 12 personalities
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 14 units @ 120 V; 23 units @ 208 V; 26 units @ 230 V
Power and Current: 106 W, 0.87 A @ 120 V, 60 Hz
