Chauvet Pro Ovation F-415FC

MSRP: $1,751.88
$1,300.00
(You save $451.88 )
Write a Review
SKU:
CHV-OVATIONF415FC-2
MPN:
OVATIONF415FC
Adding to cart… category.add_cart_announcement

Product Description

Features

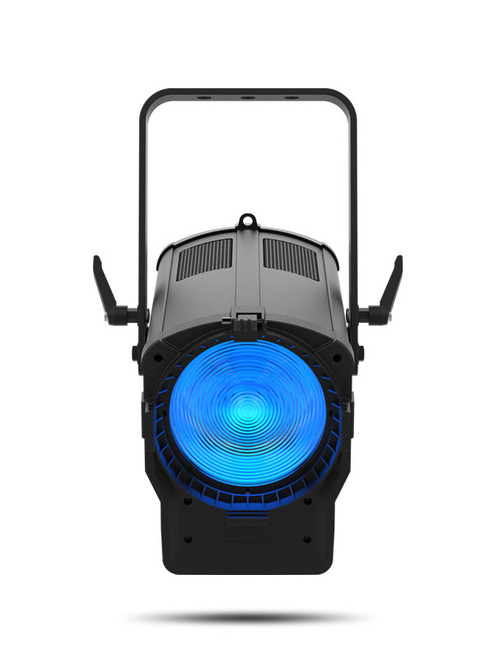

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 14° – 68° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

At A Glance

  • Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production

  • Soft and even field of light

  • Smooth, motorized zoom from 14° to 68°

  • Beautiful 16-bit dimming of master dimmer and individual colors

  • Easy to use on board control of color, zoom and dimming

  • Virtual Color wheel with color matched to popular gel colors

  • Color Temperature Presets from 2800 K to 6500 K

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

Warranty

2 year warranty

Product Videos

Custom Field

varSpecTab 1
varSectionName Optical
Light Source 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
Color Temperature (range) 2800 to 6500 K
CRI (3200 K) 91
Beam Angle 14° to 43°
Field Angle 27° to 68°
Zoom Range 14° to 68°
Lumens (27°) 1,877
Lumens (68°) 2,815
Selectable PWM 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
varSectionName Dynamic Effects
Dimmer Electronic
Shutter/Strobe Electronic
Zoom Motorized
Strobe Rate 0 to 27 Hz
Standalone Color Mixing Yes
Color Temperature Presets Yes
Dim Modes 4
Built-in Automated Programs Yes
varSectionName Connections
Power Connection Edison (Local) plug to Neutrik powerCON
Power Input Neutrik® powerCON®
Power Output Neutrik® powerCON®
Data Connectors 3- and 5-pin XLR
varSectionName Control
Control Protocol DMX, RDM
DMX Channels 1, 3, 5, 7, 10, 12, 13 or 15
Modes/Personalities Control Protocol: DMX, RDMDMX Channels: 1, 3, 5, 7, 10, 12, 13 or 15Modes/Personalities:
varSectionName Electrical
Input Voltage 00 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking 10 units @ 120 V
Power and Current 130 W, 1.101 A @ 120 V, 60 Hz
