Product Description
A powerful single source 480W LED wash engineered to meet lighting designer demand for classic stage wash looks with the modern features LDs expect: CMY + CTO color mixing system offering a wide color palette, independent color wheel with CRI and CTB filters, expansive 8:1 zoom, rotating gobo wheel with interchangeable geometric gobos, linear 5-facet prism, and frost. Housed in a compact and lightweight design and calibrated to match the colors of other Force fixtures in the rig. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.
FEATURES
- Fully featured, compact and lightweight 480 W LED yoke single source wash fixture including CMY + CTO color mixing, a color wheel, zoom optics, and one rotating gobo wheel
- 16-bit dimming of master dimmer for smooth control of fades
- Variable CMY + CTO color mixing system to create a wide pallet of colors
- CRI and CTB filters on color wheel for added flexibility
- DMX, WDMX, sACN, and Art-Net for full flexibility of control options
- RDM enabled for remote addressing and trouble shooting
- 6.3° to 55.7°zoom range for variable beam sizes
- Linear 5-facet prism, geometric gobos and frost for beam control
- True 1 compatible power input
- Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
- USB slot for software uploads
- Battery backup display with auto-rotate depending on fixture orientation
- Fail Safe Ethernet connectivity allows for data to pass even if fixture power is lost
Product Videos
Custom Field
varSpecTab 1
varSectionName Optical
Light Source 1 LED (CW) 480 W (15 A), 50,000 hours life expectancy
Color Temperature (at full) 7308K
Color Temperature (range) 7308 to 3007K
CRI 70.4 (with filter: 87.7)
Front Lens Diameter 178mm
Beam Angle 6.3°-32.8°
Field Angle 9.3°-49.5°
Cutoff Angle 11.2°-55.7°
Zoom Range 6.3°-55.7°
Lumens (Source) 39,200
Lumens (Output) 30,967
Illuminance (6.3°) 91,362 lux @ 5m
Illuminance (55.7°) 3989 lux @ 5m
Selectable PWM 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
varSectionName Dynamic Effects
Pan & Tilt 540°/270°
Pan & Tilt Ranges 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors 7 + open, split colors, continuous scroll at variable speeds
Colors Flags CMY flags, CTO flag
Gobos 7 + open (7 Metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Dimmer Electronic
Shutter/Strobe Electronic
Zoom Motorized
Focus Motorized
Frost Motorized
Iris Motorized
Prism 5 Facets, motorized, rotating
Strobe Rate 0 to 20 Hz
Move-in-Black Yes
Dim Curves 5
varSectionName Physical Attributes
Dimensions 16.8 x 10.7 x 25.8 in (426 x 272 x 656 mm)
Weight 53.4 lb
Exterior Color Black
Housing Material Aluminum diecast, High-impact flame-retardant polymer, Steel
varSectionName Connections
Power Connection Seetronic Powercon IP65
Power Input/Output Seetronic Powercon IP65

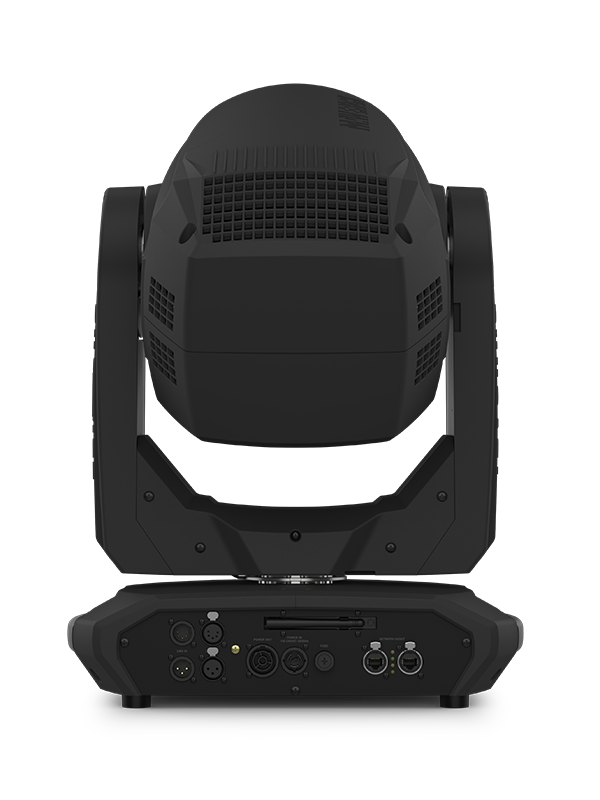

Data Connectors 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out
Cable Length (power) 5ft
Software Connection Type-C USB
varSectionName Control
Control Protocol Art-Net, sACN, RDM, DMX, W-DMX
DMX Channels 21ch or 27ch
Art-Net/sACN Channels 21ch or 27ch
Modes/Personalities 2 personalities (21ch or 27ch)
varSectionName Electrical
Input Voltage 100 to 240VAC, 50/60 Hz (auto-ranging)
Power Linking 2 units @ 120V; 3 units @ 208V; 3units @ 230V
Power and Current 660 W, 5.57 A @ 120 V, 60 Hz
varSectionName Battery
Battery type Lithium Ion
Rechargeable Yes
Battery Charge Time 5 hours
Battery Life 1 hour
Battery Power 3.7 V, 500 mAh
