Product Description
Features

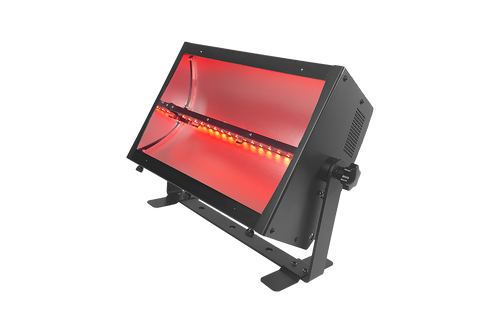

The Cyc Out has a 256x (64x RGBW) 3W LEDs and a 60° beam angle and the light is projected forward and enhanced by a parabolic reflector (rather than directly forward like most LED strobes.) The Cyc Out rounds out its features with 3 DMX channel modes: 9-channel allows RGBW color mixing, 15-channel is color mixing + strobe, and 27-channel is color mixing + strobe, and the added ability of independent (top/bottom) zone control.
Overview
- 32-bit dimming curves
- Variable electronic dimming & strobe
- Automated temperature control
- Static color mixing
- Flicker-free, constant-current driver
- Mounting bracket w/stabilizers
- powerCON® compatible AC power In/Out
Warranty
2 year limited warrantyProduct Videos
Custom Field
varSpecTab 1
varSectionName Optical
Light Source 256 x (64* R/G/B/W) 3W LEDs
Beam Angle 60°
Luminous Intensity 2,076 Lux @ 2m | 376 Lux @ 5m
varSectionName Power
Power 100-264VAC, 47-63 Hz
Power Consumption 663W, 5.8A, PF: .99
varSectionName Control
Protocol USITT DMX-512
DMX Channels 9/15/27
Control options Standalone, master/slave mode
Input/Output 3/5-pin XLR
