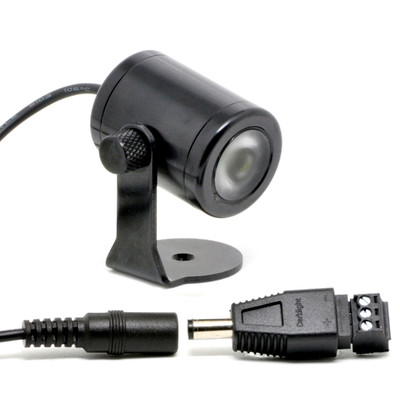

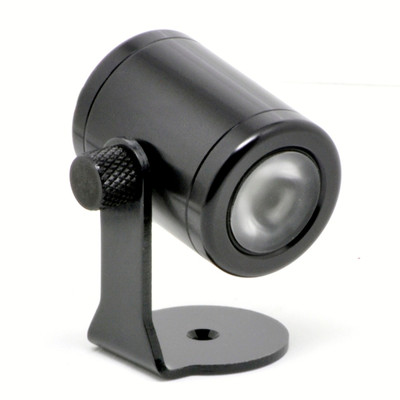

Gantom DMX Floodlight

Write a Review
$213.75 - $243.00
SKU:
GT-GTFL

The Gantom DMX Flood is a 4W color controllable LED floodlight for professional applications. Featuring a non-linear dimming curve, the Gantom DMX Flood can be dimmed with high precision even at the lowest intensity levels. Homogeneous optics smoothly blend the colors of the internal quad chip LED to produce a clean projected field. Objects blocking this light source will cast razor sharp shadows without color separation. High frequency hybrid modulation allows the Gantom DMX
Flood to be used in video applications with minimal on-camera flickering. This fixture can even be battery powered for portable operation, perfect for fill lighting in hard to reach locations. The Gantom DMX Flood is configured using our DMX Programmer app, available free for Apple and Android devices.

Features

  • Homogeneous wide beam optics
  • Available in dynamic white and RGBW configurations
  • Also available in narrow beam angle configuration (see Gantom DMX Spot)
  • Non-linear dimming curve for smooth fading without visible “steps” in output intensity
  • 14 bit dimming compressed into single 8 bit channel gives precision control without using extra channels
  • Minimized on-camera flicker
  • DMX address and colors configured via DMX Programmer app
  • Less than 5W at full output
  • Integrated DMX receiver
  • Integrated quad channel constant current driver for consistent output
  • Storm Series version for permanent outdoor installations also available

Applications

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Theater and stage accent lighting
  • Mobile displays
  • Floral centerpieces
  • Retail spaces
  • Architectural accent lighting
  • General purpose accent lighting
  • Props and animatronics
  • Special effects lighting
  • Temporary event lighting
Product Name SKU Color Temperature DMX Channels Cable Options
Gantom DMX Flood – Dynamic White GT21 3000K - 6500K 2 Power Connector: 2.1mm DC jack with screw terminal adapter for Power Signal Connector: 3.5mm (1/8") TRS jack with screw terminal adapter
Gantom DMX Flood – RGBW GT22 6500K (White channel only) 4 Power Connector: 2.1mm DC jack with screw terminal adapter for Power Signal Connector: 3.5mm (1/8") TRS jack with screw terminal adapter
Gantom DMX Flood – Dynamic White – Pro Cable Connector GP221 3000K - 6500K 2 Power and Data integrated into a single sealed locking connector
Gantom DMX Flood – RGBW – Pro Cable Connector GP222 6500K (White channel only) 4 Power and Data integrated into a single sealed locking connector



Connector Options Standard Connectors 2.1mm DC jack with screw terminal adapter for Power
Gantom Pro Cable Connector 3.5mm (1/8″) TRS jack with screw terminal adapter
Waterproof locking connector which combines both power and DMX signal in a single cable

Link to Datasheet

Link to User Guide

Link for Downloads

Max wattage:
4.8W
Input Voltage:
9-15VDC (12VDC nominal)
Current Draw:
< 400mA @ 12VDC
Power Supply:
For use with class 2 regulated switching power supply
Beam Angle:
28 degrees
Field Angle:
66 degrees
Ingress Protection:
IP65
LED:
Cree XLamp MC-E
Certifications:
UL and CE
