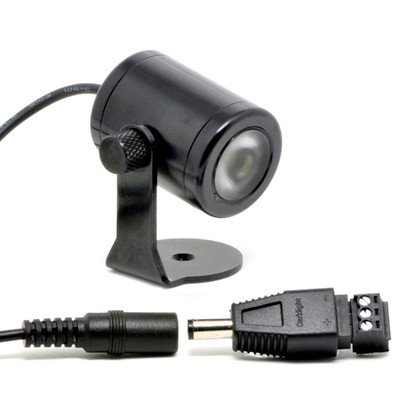

Gantom 7

Write a Review
$380.00 - $395.00
SKU:
Gantom - GT7

The Gantom 7 packs seven-color output into a tiny package. With a native 13 degree beam angle, this LED spotlight produces a punchy yet soft beam with homogeneous color mixing even at a close distance. Included micro-lenses and the magnetic accessory holder offer easy beam control solutions; diffusing the spotlight to a floodlight is literally a snap.
Native DMX control and a balanced, non-linear dimming curve meets the most demanding theming tasks. This compact spotlight features lime, amber, and ultraviolet beyond the common RGBW to achieve colors unavailable in standard LED fixtures. With the Gantom 7, lighting designers obtain a virtually unlimited color palette in a compact and efficient 7-Watt LED fixture.

Features

  • Full spectrum output with 7 LED colors. Multiple color profiles selectable (RGB, RGBA, RGBW, RGBAWUv, RGBAWLUv).
  • Color control via DMX512 or DMX Programmer app.
  • Precision-tuned non-linear dimming curve and color balance algorithm.
  • Standalone mode allows set and forget operation without DMX signal (requires DMX Programmer app).
  • DMX address and configuration stored in memory.
  • Low voltage and minimal heat for improved safety over incandescent sources.
  • Internal constant current driver gives highly efficient and consistent output.
  • Minimal maintenance required with over 50,000 hour lamp life.
  • Indoor and outdoor use.

Applications

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Theater and stage accent lighting
  • Mobile displays
  • Floral centerpieces
  • Retail spaces
  • Architectural accent lighting
  • General purpose accent lighting
  • Props and animatronics
  • Special effects lighting
  • Temporary event lighting
Product Name SKU DMX Cables Cable Options Availability
Gantom 7 – Go Cable Option GT77 8 (dimmer, RGBAWLUV) Power Connector: 2.1mm DC jack with screw terminal adapter standard* Signal Connector: 3.5mm (1/8″) TRS jack with screw terminal adapter standard* Stocked product, usually ships within 1 business day
Gantom 7 – Pro Cable Option GP277 8 (dimmer, RGBAWLUV) Power and Data integrated into a single sealed locking connector Made to order, please inquire about lead times

Link to Datasheet

Link to User Guide

Link for Downloads

Max Wattage:
7.5W
Input Voltage:
9-15VDC (12VDC nominal)
Current Draw:
< 620mA @ 12VDC
Power Supply:
For use with class 2 regulated switching power supply
Beam Angle:
15 degrees (adjustable with included micro-lenses)
Field Angle:
35 degrees (adjustable with included micro-lenses)
Ingress Protection:
IP65 – Suitable for wet locations
Certifications:
UL and CE
